KBJX manufacturer air centrifugal fan blower Quality Choice
- 1000 Piece / Pieces per Month
- Shanghai
- T/T
Product Details
Electric Current Type: | DC | Blade Material: | Stainless Steel | Mounting: | Free Standing |
Place of Origin: | Jiangsu, China | Brand Name: | KBJX manufacturer air centrifugal fan blower | Model Number: | KBCF2E-130, 140, 150, 180 manufacturer air centrifugal fan blower |
Power: | 48-500 w | Voltage: | 220v -440v | Air Volume: | 133 - 1500 m3/h |
Speed: | 1380 -2600 RPM | Certification: | CCC, CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
KBJX manufacturer air centrifugal fan blower
Product description
1. functions:
--- material : housing galvanized sheet steel
-- impeller: galvanized sheet steel
-- rotor: coated in black
-- direction of rotation: clockwise, seen on rotor
2. Advantage of KBJX manufacturer air centrifugal fan blower
-- Small volume, high air volume, high efficiency, low noise, light vibration,easy to installation and so on.
-- Widely applied for the ventilation in dwellings, industrial constructions and labs, in environment with strict limit to noise, or in air conditionling, air purifying and freezing industries etc.
-- The fan adopts mold production through static and dynamic balance adjustment, and its surface adopts high-grade electrostatic spraying treatment.
-- The gas delivered by the series of fan cannot have sticky matters, and is noncorrosive, non-flammable and non-explosive.
3. Speicification of KBJX manufacturer air centrifugal fan blower
KBJX manufacturer air centrifugal fan blower has four models for customer's choice: dia 130, 140, 150 and 180 . Please kindly view following specification of each model
Model Ø 130
Model | Voltage (v) | Frequency (HZ) | Current (A) | Input power (W) | Speed (RPM) | Max air Flow (m3/h) | Capacitor (uF) | Noise (dbA) | Curve |
KBCF2E-130 | 230 | 50 | 0.4 | 85 | 2680 | 260 | 2 | 63 | 1 |
KBCF4E-130 | 230 | 50 | 0.2 | 48 | 1470 | 133 | 2 | 55 | 2 |
Model Ø 140
Model | Voltage (v) | Frequency (HZ) | Current (A) | Input power (W) | Speed (RPM) | Max air Flow (m3/h) | Capacitor (uF) | Noise (dbA) | Curve |
KBCF2E-140 | 230 | 50 | 0.5 | 110 | 2600 | 420 | 3 | 65 | 1 |
KBCF4E-140 | 230 | 50 | 0.25 | 56 | 1450 | 210 | 2 | 58 | 2 |
Model Ø 150
Model | Voltage (v) | Frequency (HZ) | Current (A) | Input power (W) | Speed (RPM) | Max air Flow (m3/h) | Capacitor (uF) | Noise (dbA) | Curve |
KBCF2E150-1 | 230 | 50 | 0.98 | 240 | 2600 | 510 | 5 | 66 | 1 |
KBCF2E150-2 | 230 | 50 | 0.75 | 165 | 2600 | 480 | 6 | 66 | 2 |
Model Ø 180
Model | Voltage (v) | Frequency (HZ) | Current (A) | Input power (W) | Speed (RPM) | Max air Flow (m3/h) | Capacitor (uF) | Noise (dbA) |
KBCF4E180-1 | 230 | 50 | 0.65 | 140 | 1380 | 800 | 4 | 65 |
KBCF4D180-1 | 380 | 50 | 0.34 | 140 | 1380 | 800 | / | 65 |
KBCF4E180-2 | 230 | 50 | 1.95 | 500 | 2600 | 1500 | 12 | 67 |
KBCF4D180-2 | 380 | 50 | 1.18 | 500 | 2600 | 1500 | / | 67 |

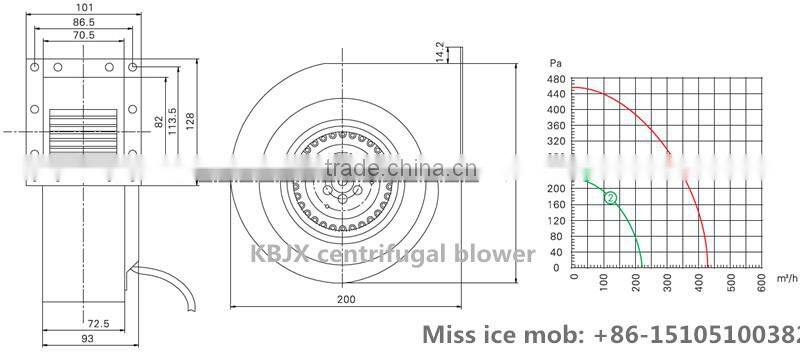

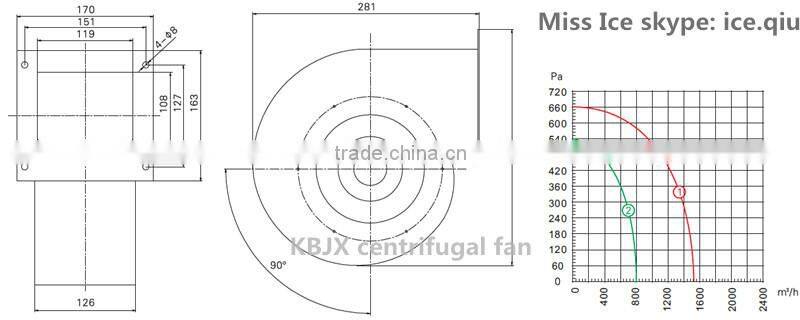

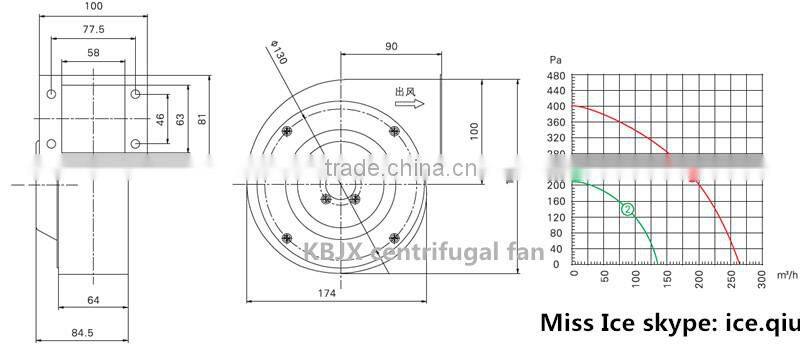

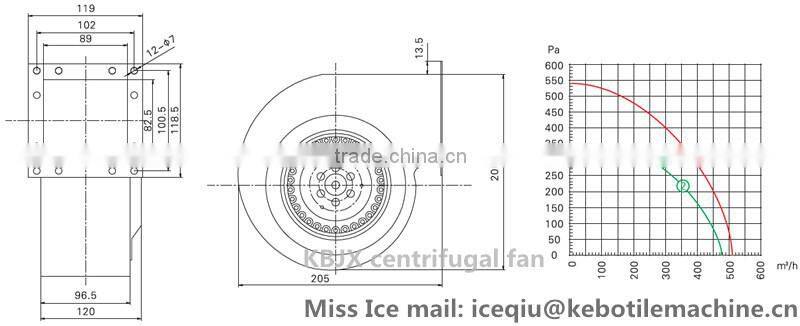

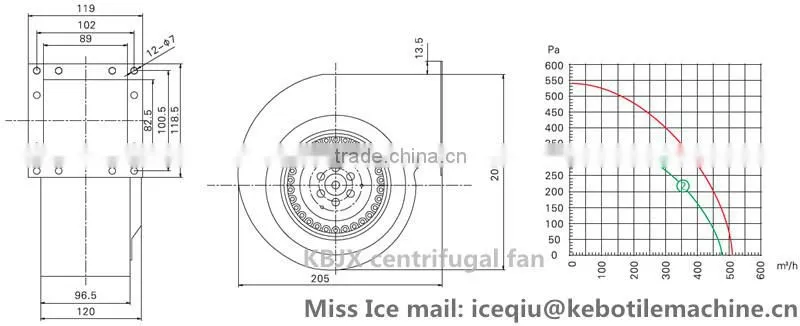

Four models technics drawing picture for KBJX manufacturer air centrifugal fan blower
Model Ø 130
Model Ø 140
Model Ø 150
Model Ø 180

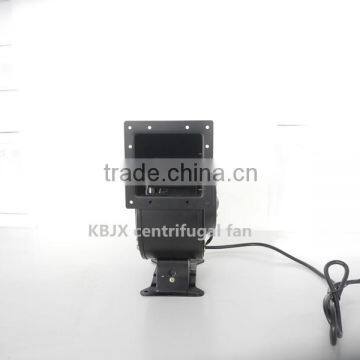

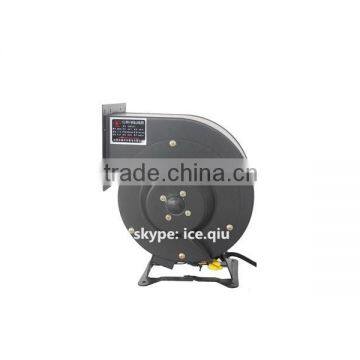

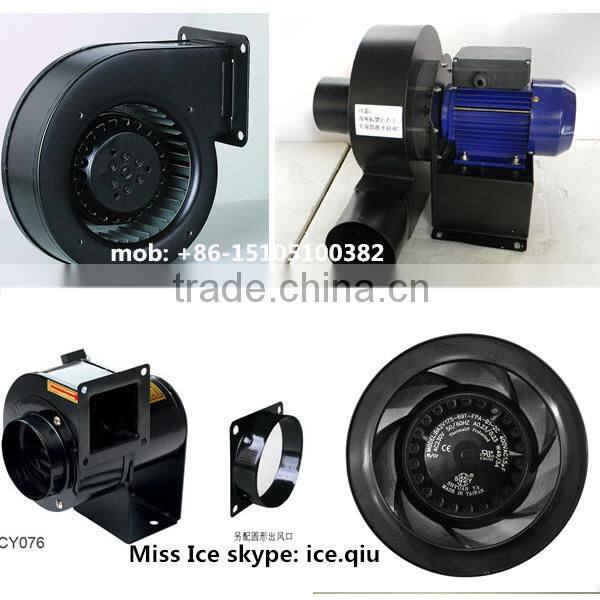

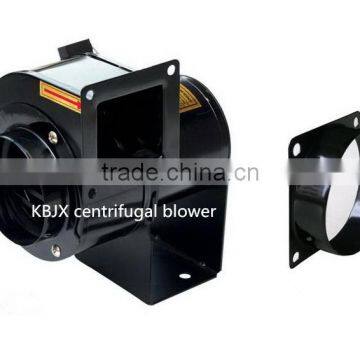

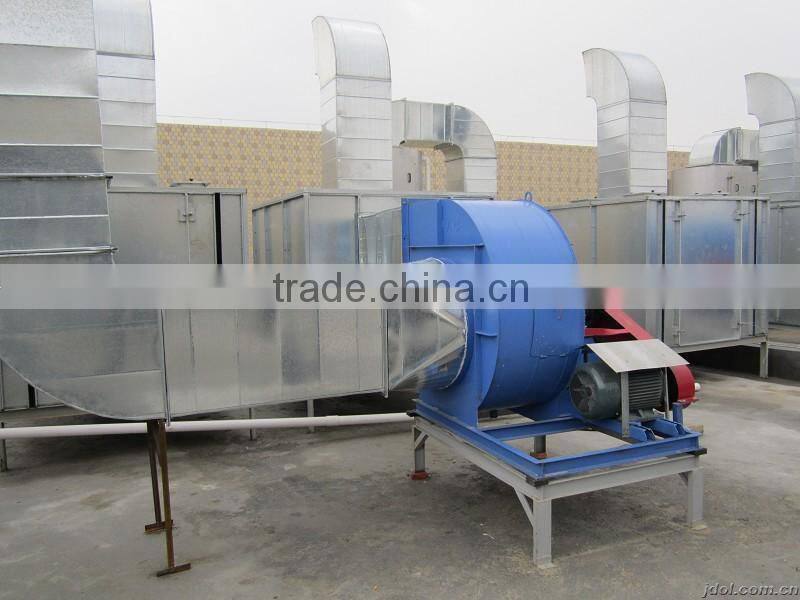

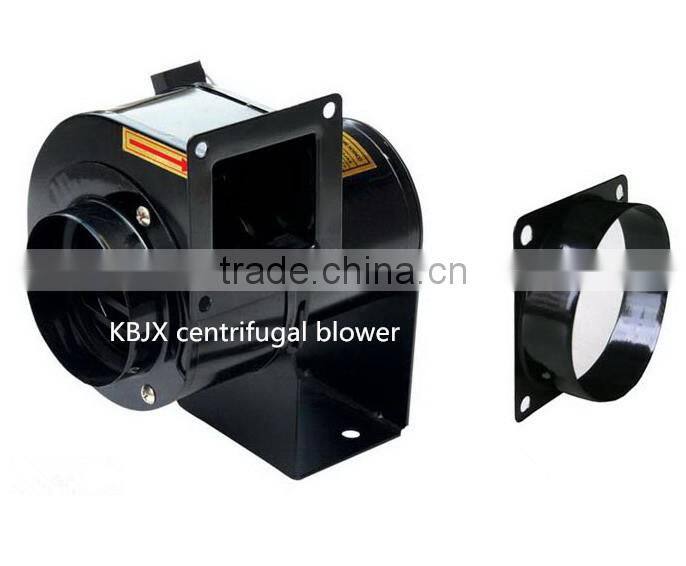

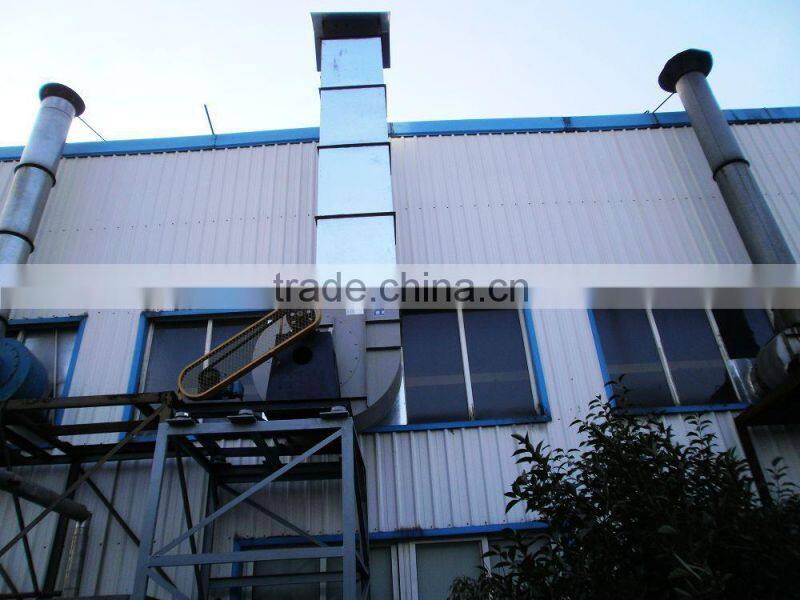

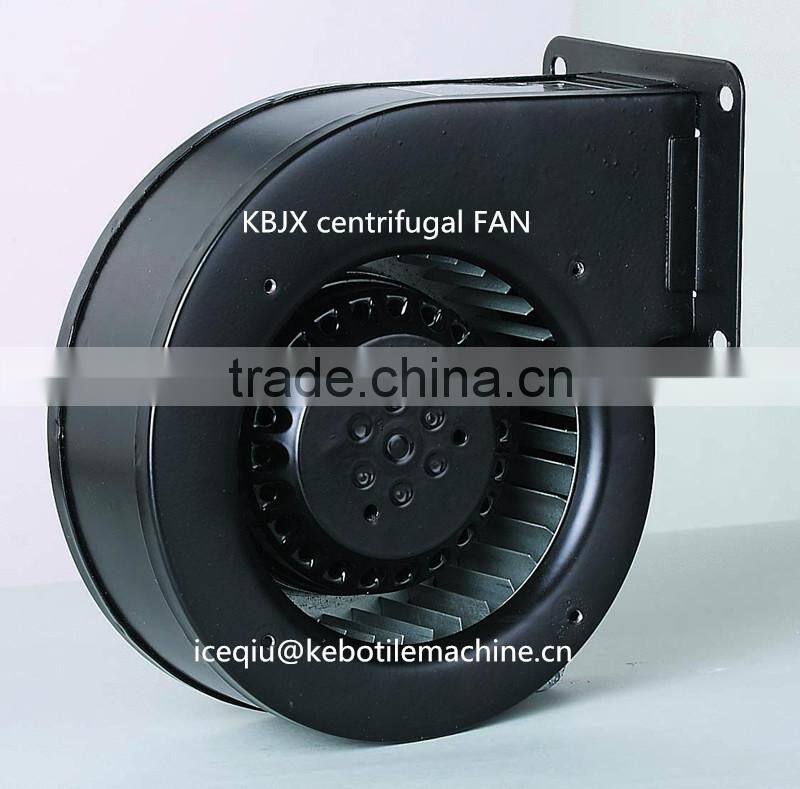

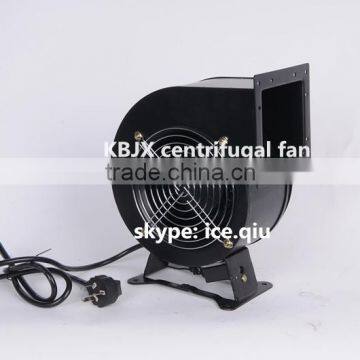

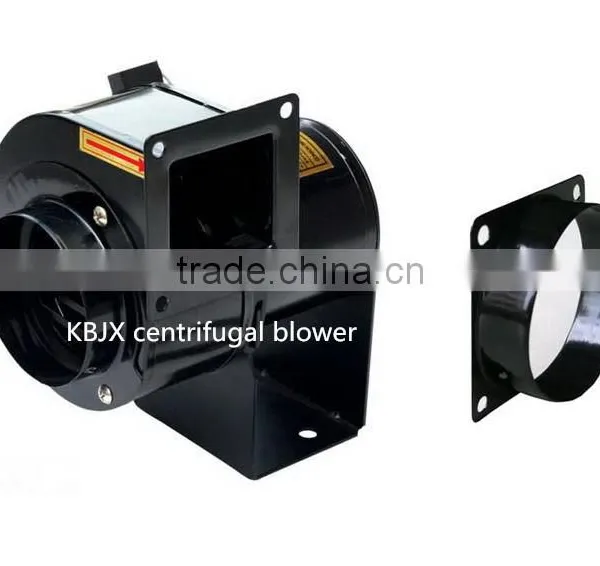

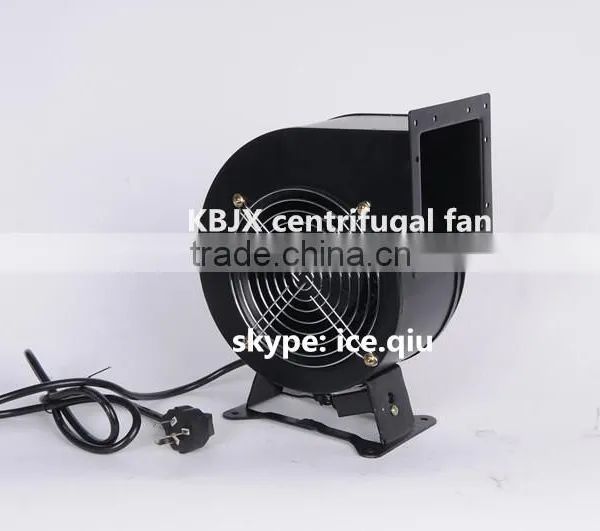

Picture of KBJX manufacturer air centrifugal fan blower

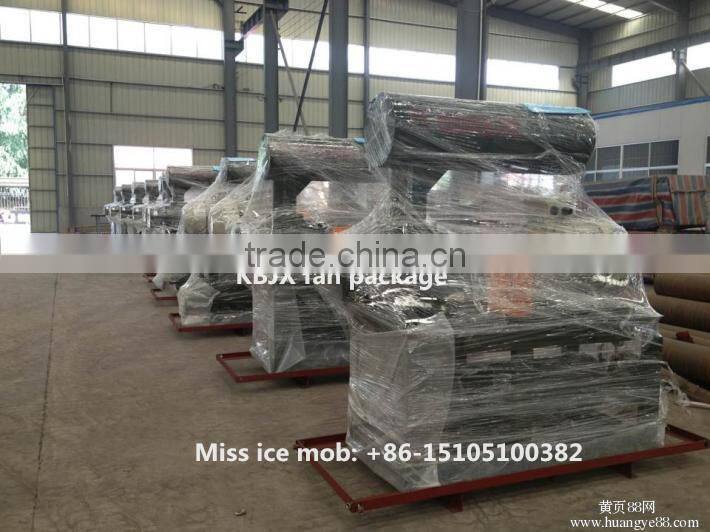

Packaging & shipping
Our service of KBJX manufacturer air centrifugal fan blower
Before-sale services:
(1) Tell customer our centrifugal fan usage. tell them how to fix centrifugal fan.
(2) Guide customers to choose the best and economic centrifugal fan, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-Sale services:
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send customers installation video to teach them how to fix and operate with our centrifugal fan.
(2) Guarantee is three years, within this year, all parts broken will be responsible for our factory.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.

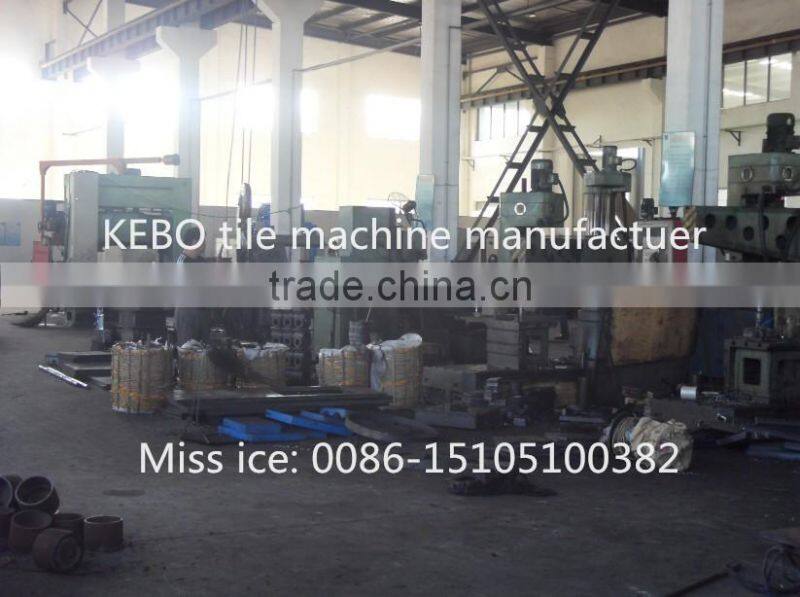

Our company information
