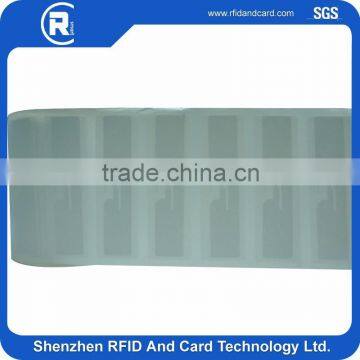

Direct Manufacturer Uhf Inlay With H3 Chip

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Model Number:

AH3-9654

Shenzhen RFID And Card Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SZ HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Model Number AH3-9654

Product code	AH3-9654
Product Category	Passive RFID antenna
Antenna Material	Aluminum Al (30μm) + PET (38μm) + Al bridge (10μm)
Chip	Alien H3
Frequency	860—960 MHz
RF Protocol	ISO-18000-6C, EPC Class 1, Gen 2
User capacity	512bits
EPC capacity	96bits
Working life	100000 times / 10 years
Antenna size	93*19mm
Wet inlay	96.5*23.2 mm
Thickness	0.07mm (chip location: 0.23mm)
Weight	0.01g
Working temperature	-20℃ to +60℃
Storage temperature	-25℃ to +65℃
Packing	1000pcs/roll or by customized
Read Distance	up to 6m depending on antenna geometry and reader configuration
Shelf life	one year Under the conditions of vacuum packaging,temp 20-30℃/humidity 20%-60%
Application	Identification,Card, Logistics, Library, Asset management, Payment, Access control

Handling

Inlays with ink marks are defective, do not use.
RFID Inlays or labels are sensitive product, do not bend or stretch
Static-free bag will be use for packing; always keep environmental static charge to a minimum.
InlaySolution reserves the right to modify, change, supplement or discontinue product offerings at any time without notice
All products from Unico Solution should be tested by the customer/user thoroughly to ensure the product meets the
particular requirements. Unico Solution does not represent that this product is fit for any particular purpose or use
