High Speed Cilicon Core Winding Machine,Silicon Core Winding Machine

Product Application

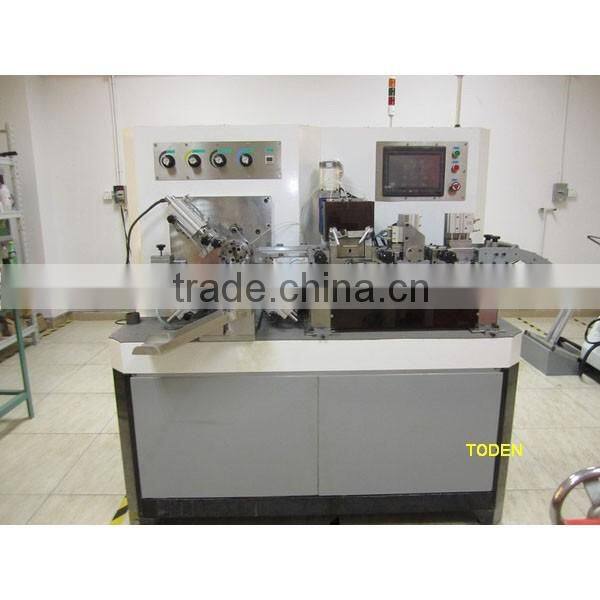

high speed cilicon core winding machine, it is automatic machine to produce the crgo core or crngo core with fast speed ,15 seconds for each one .PLC control and monitor all section ,just one worker to loading the raw roll materail on the coiler , finished core product taking out by robot .the whole inclduing the coilder ,winder ,laser welder ,and cooler .5 motor wokring by pushing ,punching ,winding ,cutting and welding .4 model machine to satisfied varies customer need .from the Min inner diamer of core 8 mm to 40 mm ,the Mac Outside Diameter can be less than 320 mm .

Main Features

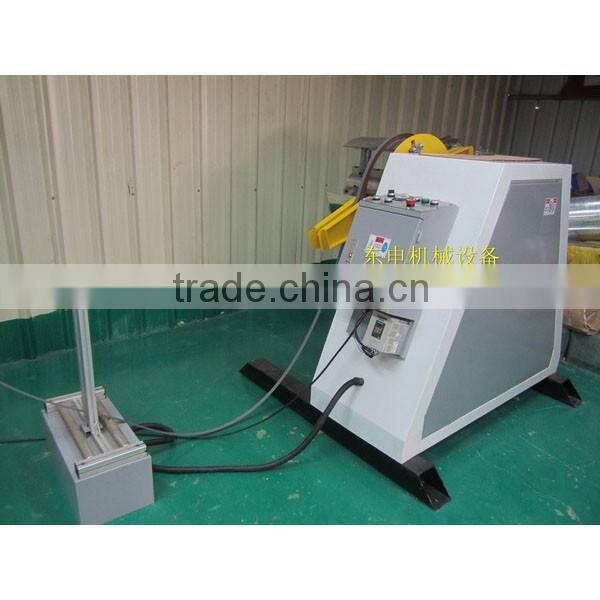

1) Coiler: loading the raw roll material .

2) winder: working with 5 motor ,core winding by center core.

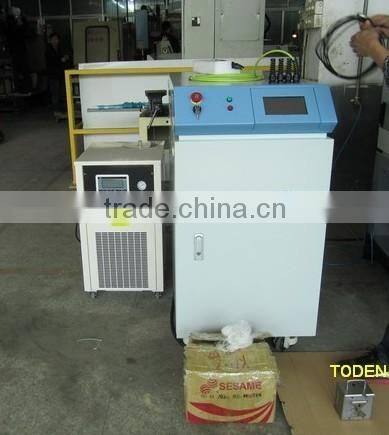

3) laser welder : smart welding poitn by laser machine with cool system.

Machine Parts

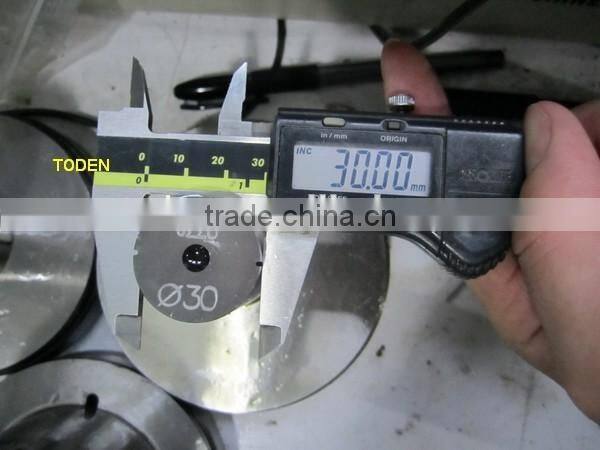

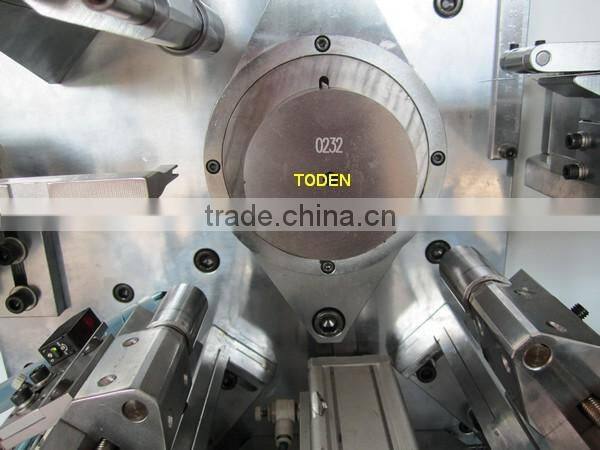

Name: core mold

Original: TODEN machine

one set machine can one fixed range core , and different width ,but each size need differet mold to producing the core .such as TD10040 machine ,the Mincore inner side can 10-80 mm ,the Max outside less than 100 mm ,the width can be 6-40 mm .13 seconds/one core winding.

Main Features

Name: mold in the machine
Original: toden machine

mold change just loosen the core mold center and knock the 4 nuts around the mold.
