- Creative design for your own special transportation program.
- High tensile steel provides the strongest performance of semi trailer.
- Automatic submerged arc welding and straightening machines make best main beam.
- One coat blasting plus two coats polyester painting.
- Standard and Brands of semi trailer parts can be chosen according to different requests.
- Necessary accessories offered.

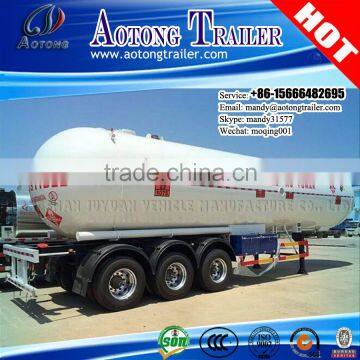

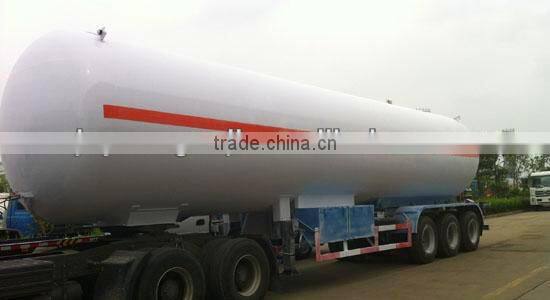

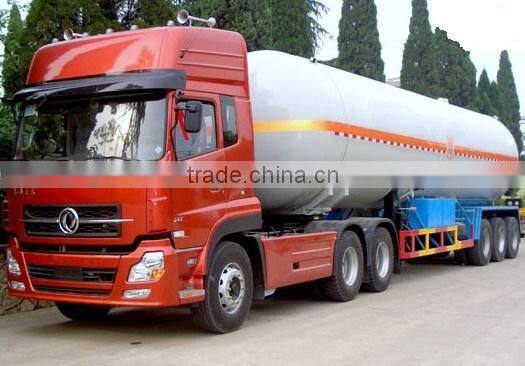

ASME 40 cbm to 60 cbm butadiene lpg tank semi trailer,17 tons to 30 tons isobutane lpg trailer, ammonia lpg tank trailers
Dimensions(length*width*height) |
12982*2500*3990(mm) |
||
Estimated Tare Weight |
16396KG |
||
Payload |
23604KG |
||
Total Weight |
40000KG |
||
Effective Volume |
56.2CBM |
||
Shell Of Tanker | |||
Products |
LPG, Butane , Propane |
||
Fluid property |
flammable |
||
Design temperature |
-40°C to 50°C |
||
Design pressure |
1.61MPa |
||
Corrosion allowance |
1.0mm |
||
Major materials of bearing pressure |
Tanker body : Q345R , 12.5mm |
||
|
End plate : Q345R , front:10mm,Rear:12.5mm |
||
|
Main Beam : T700 |
||
Filling weight per volume |
420Kg/m3 |
||
Maximum filling weight |
24486Kg |
||
Compartments |
One |
||
Baffle inside the tank |
14-off Aluminum bolted plate , thickness is 5mm |
||
Shape |
Cylindrical ; Ellipse head |
||
Detection | |||
Heat treatment |
Overall heat treatment in a furnace , 500°C to 560°C |
||
Flaw detection |
100% Flaw detection |
||
Hydrostatic test |
2.1MPa |
||
Magnaflux |
Aim at welding place flaw detection can not cover |
||
Manhole (As customer's requirement ) | |||
Quantity |
1 ; On top |
||
Safety Valve (As customer's requirement ) | |||
Quantity |
Two |
||
Location |
On the top of tanker ; |
||
Type |
Only weld suitable flange |
||
Size |
As customer's requirement |
||
Liquid meter (As customer's requirement ) | |||
Quantity and Model |
1 |
||
Location |
On left side of tanker |
||
Type |
Only weld suitable flange |
||
Size |
As customer's requirement |
||
Valve and pipe Detail (As customer's requirement ) | |||
Running System | |||
Axles |
3 |
13 TON FUWA Axles |
|
Suspension system |
1 |
Leaf spring |
|
Wheel rim |
12 |
9.00 |
|
Tyre |
12 |
Brand : Triangle,1100 rail tire |
|
Kingpin |
1 |
90# |
|
Landing legs |
1 |
28Ton FUWA |
|
Pneumatic Brake System | |||
Spring brake chamber |
6 |
FUWA |
|
Air connector |
1 |
FUWA |
|
Relay Valve |
1 |
BRAND:WABCO |
|
ABS |
1 |
WABCO ABS |
|
Electronical System | |||
7-Pin Socket |
1 |
24V 7-pin socket |
|
LED Lamp |
1 |
All kinds of lamp |
|
Cable |
1 |
Stander cable |
|
1. This series lpg tank semi trailer applicable for the transportations of the liquified petroleum gas, anhydrous ammonia, propone and other liquid gas.
2. The capacity is for 30tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension

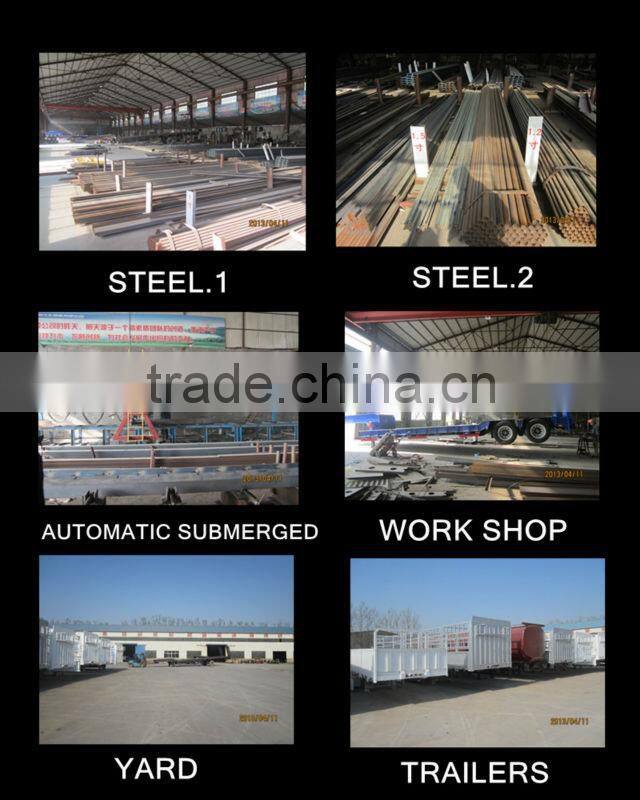

Established in 2000, our factory is specialized in the manufacture of lpg trailer. Located in Liangshan,Jining. We enjoy convenient access to major transportation networks. Our factory covers an area of 45,000 square meters and has around 500 staff members. Furthermore, all our lpg trailer are manufactured with advanced equipments and strict QC procedure in order to ensure high quality.
Wih stable and timely supply, credible quality and sincere service, our lpg trailer sell well in both domestic and overseas market...
Welcome to visit our factory and we will pick you up at airport!

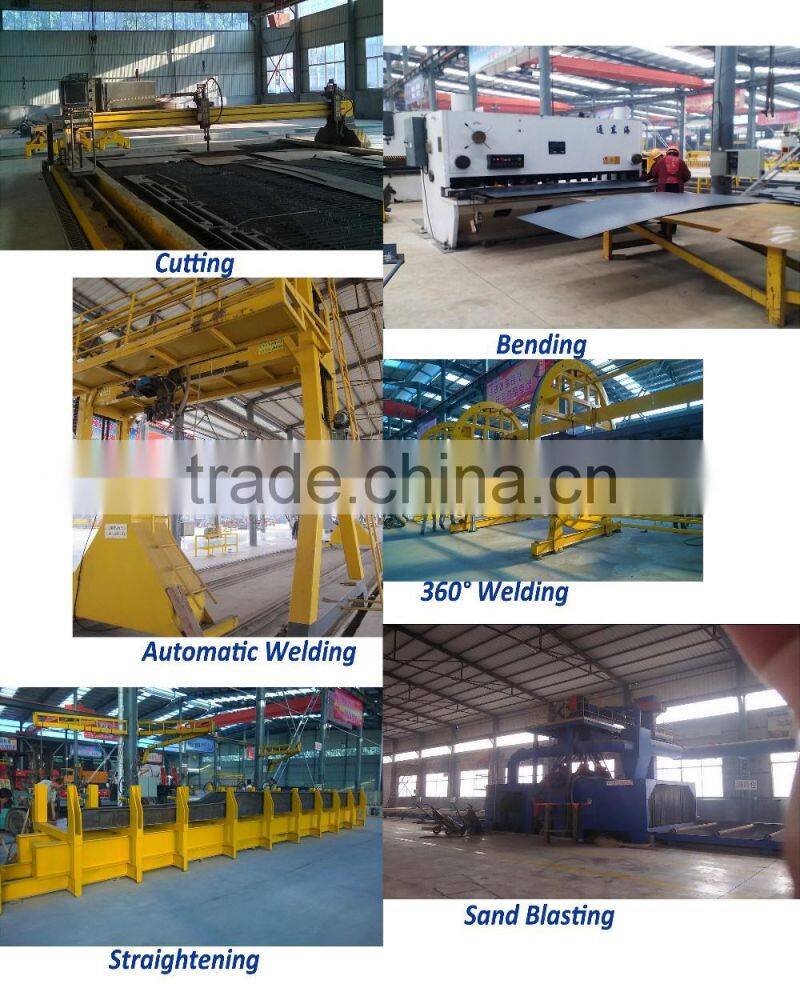

Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used |
|---|---|---|---|
| CNC Flame Plasma Cutting Machine | GS | 2 | 4.0 |
| Press Machine | JC21-160 | 4 | 4.0 |
| Hydraulic Plate Bender | WC67Y-200/4000 | 2 | 3.0 |
| Hydraulic Pendulum Plate Shears | QC12Y-12*3200 | 2 | 3.0 |
| Drilling Machine with Jointed Arm | ZN3050*16 | 4 | 4.0 |
| Shaping Machine | BS6065 | 2 | 4.0 |
| Universal Rotary Milling Machine | X6232 | 1 | 4.0 |
| CNC Lathe | EL6140N | 2 | 4.0 |
| Saw Machine | GD4028N | 2 | 5.0 |
| Expander | ZX-3000 | 1 | 3.0 |
| Rolling Machine | W11-4-200 | 2 | 3.0 |
| Automatic Round Welding Machine | W11SNC-10-6500 | 1 | 4.0 |
Testing Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used |
|---|---|---|---|
| Vernier Caliper | 0.02 mm | 2 | 3.0 |
| Ultrasonic Thickness Gauge | SMART SENSOR | 1 | 3.0 |
| Sound Level Meter | AZ8928 | 1 | 3.0 |
1. Q: Are you a factory or trading company?
A: We are a factory. We manufacture all kinds of Semi Trailers.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Industry Park, Liangshan Town, Jining City, Shandong province,China.
All our clients, from home or abroad, are warmly welcome to visit us!
B: We can pick up our dear customers at Jinan airport.
3. Q: What is the material of your products?
A: The materials are Carbon Steel, Stainless Steel, ALuminum Alloy: Q235,Q345,Q690; SS314, SS316; AL5454, AL5083. Different material for different semi trailers.
4. Q: How can I get some samples?
A: We can accept small order, MOQ 1 set, at the first cooperation and make production after you paying for us.
B: Delivery time is 18 days. 30% deposit before production; 70% balance should be paid before delivery.
You just tell me the port name and our forwarder will ship the semi trailer to your port.
5. Q: How does your factory do regarding quality control?
A: "Quality is priority.''Our inspector QC will check semi trailer in every procedure and modify the parts once they find any problems from them.
B: For our salesman will also check semi trailer and take photos for every procedure for our client to confirm.
