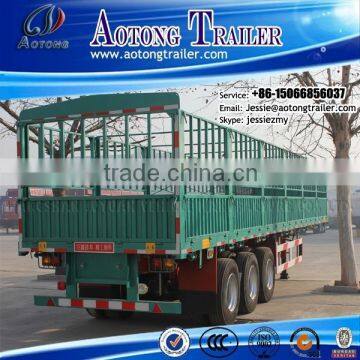

Help CenterBest Selling Tri-axle Semi Trailer for Agricultural or Sideline Products' Transportation
Related Products
-
Best Selling Aotong Brand Fence/cargo/semi-trailerUS$ 13,000 - 25,000MOQ: 1 Set -
Best-selling Aotong Brand Store House Type Fence Cargo Semi Trailer on SaleUS$ 13,000 - 25,000MOQ: 1 Set
-
Best Selling Aotong Brand Store House Semi Trailer for AfricaUS$ 13,000 - 25,000MOQ: 1 Set
-
China Manufacturer and Steel Material 3 Axles Fence Truck Trailer 50 TonsUS$ 15,000 - 20,000MOQ: 1 Set
-
High Quality 3 Axles Fencing Livestock Horse Carriage Semi Trailer for Sale in LiangshanUS$ 15,000 - 20,000MOQ: 1 Set
Best selling tri-axle semi trailer for agricultural or sideline products' transportation
Product Description
1. Product Name: cargo semi trailer
2. Outside Dimension: 13000mmX2500mmX3800 mm (also can according to your dimension)
3. payload: 80ton
4. material: Q235 and Q345
4. Axle: FUWA brand 13ton
5. tyre: 825R20, 9.00R20, 10.00R20,11.00R20 also can accroding to your request.
more detailed
Product Information | |||
Product |
store house bar semi trailer |
|
|
Brand Name |
Aotong Brand |
||
Model Number |
LAT9403CLXY |
||
Announcement (batch) |
226 |
||
Place of Origin |
Shangdong province, China |
||
Color |
Any color will be available |
||
Manufacturer |
Liangshan Juyuan special vehicle manufacturing Co., Ltd |
||
Product Specifications | |||
Total Weight |
39500 kg |
||
Rated Load |
31000 kg |
||
Tare Weight |
8500 kg |
||
Wheel Base |
5350+1310+1310, 5000+1310+1310(mm) |
||
Tyre Specifications |
11.00R20 12PR 12R22.5 12PR(Vacuum tyre or rail tyre) |
||
No. Of the Tyres |
12 |
||
Axle Brand |
FUWA (BPW optional) |
||
No. Of the Axles |
3 |
||
Axle-load |
24000 kg |
||
Pieces of leaf-spring |
10 (8) (4) |
||
Suspension |
Independent stamping steel rigid suspension ( air suspension) |
||
Departure Angle |
17 |
||
Front/Rear Overhang |
1830 mm |
||
Outside Dimensions (LxWxH) |
11000,10500X2500X 3950,3750,3550,3350 (mm) |
||
Interior Dimensions (LxWxH) |
10800,10300X2350X 2400,2200,2000,1800 (mm) |
||
Material of the Main Beam |
Q345B manganese plates, automatic submerged arc welded |
||
Brake System |
ABS: RL122-1 (optional ) |
||
Brake Air Chamber |
Four double and two single chamber |
||
Usage |
Suitable for the agricultural, sideline products and other light products' transportation. The design is convenient for products' unloading, and it's not only satisfy the rated load also reduce the burden of the compartments. |
||
|
Other Descriptions |
The cargo's carring part of the stake truck is store house bar style designed, the beam wears through the longitudinal beam which is welded as a space frame structure, making the frame strength, stiffness, flexibility an equilibrium, a strong carrying capacity without permanent deformation. |
||
Other Specifications |
The max height of the rear guard from ground is 400mm, and the cross section is 160mmX70mm. |
||

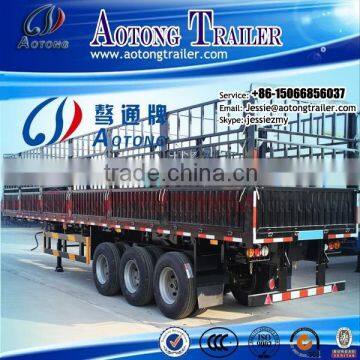

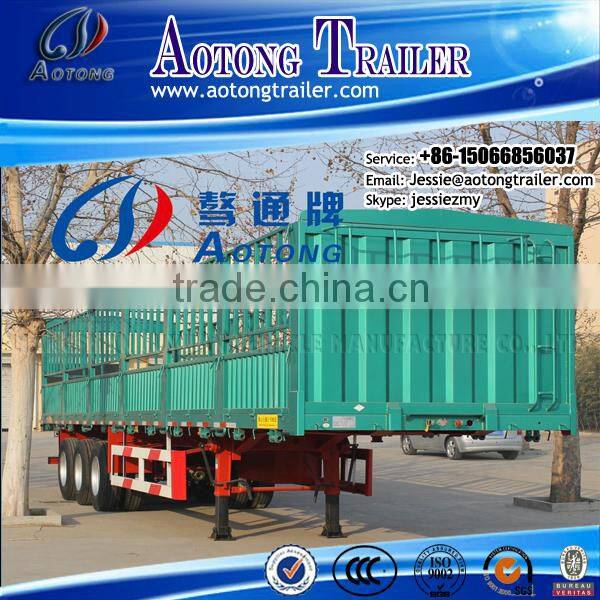

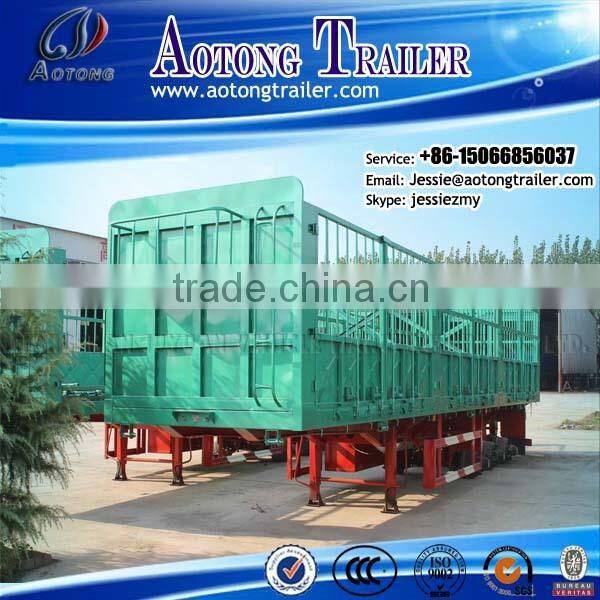

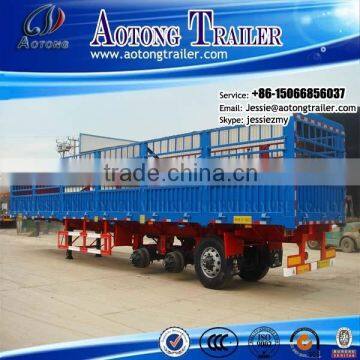

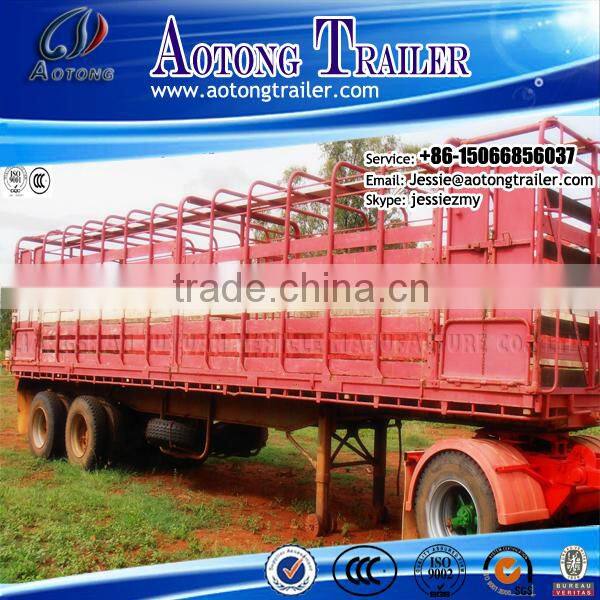

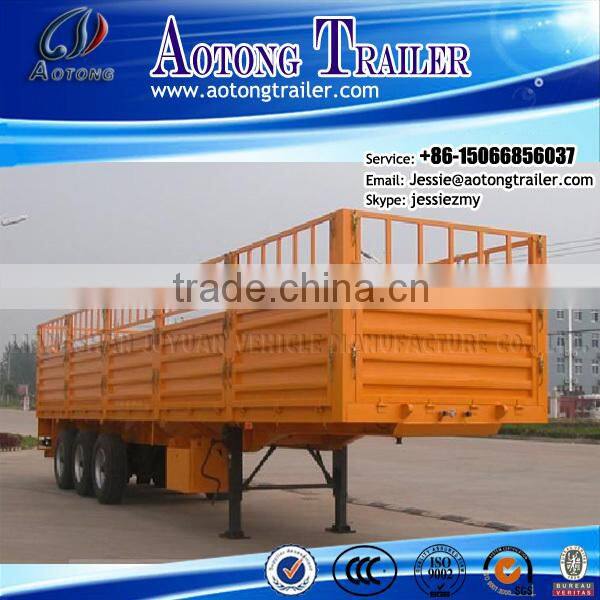

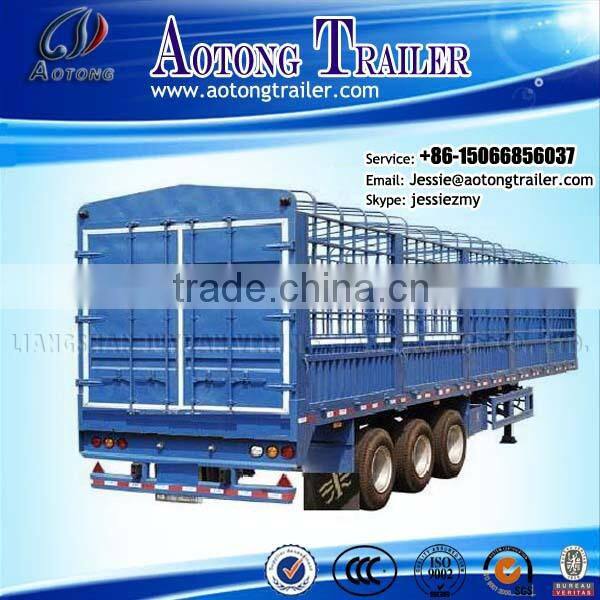

Product Picture

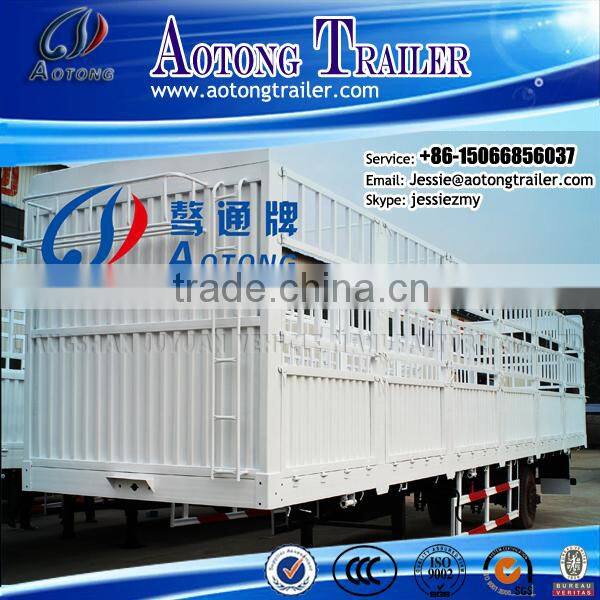

Best selling tri-axle semi trailer for agricultural or sideline products' transportation
we can designed trailer model according to your requirement
THE WARRANTY PERIOD
Love after-sales serviec hotline: 00 86 15066856037
VIEW OUR MANUFACTORY
Welcome to visit our manufactury, we will pick you up from airport.
Certifications
For more information please contact Jessie Zhang, we will give you our best service and competitive price.
Tel: 0086-532-85699621
Fax: 0086-532-85699620
Mobie/watapp/viber:+86-15066856037
Skype: Jessiezmy
Website:
