hydraulic multi-axles heavy duty trailer / modular trailer for transport heavy equipment
Basic Information
This is a platform vehicle with a large array of wheels on the bottom, used for transporting massive objects such as bridges, oil refining equipment, huge motors, large bridge sections, and other objects that are too big or heavy for trucks but trucks can provide traction and braking for the SPMTs on inclines and descents.
Advantages
* Pendular axles with hydraulic axle suspension system
* Hydro-mechanical all-wheel force-steering in 2-circuit execution
* Center beam in box-section design with extremely high bending strength
* Optimized bolt-plate connection for easy coupling of the modules
* Combination possibility in longitudinal and lateral directions
* Various expansion possibilities by means of additional equipment suitable for combination with tractors
Application Fields
Power plant industry, nuclear industry, shipbuilding industry, steel mill, railway, highway project, bridge engineering, petrochemical industry and etc.
Specifications
| The main technical parameters of modular trailer | |
| Brand Name | Julin brand |
| rated load capcity(kgs) | 20000kg/axis×15 axis=300,000kg |
| Max loading capcity(kgs) | 30000kg/axis×15 axis=450,000kg |
| net weight of the trailer(kgs) | 85,000kgs |
| max trailer speed (full load) | 8km/hour |
| the distance of axle | 1550mm |
| the distance of wheel | 740/1820mm |
| tyre | 120 suits of 7.50R15 tyre |
| wheel rim | 120 suits of 6.5-15rim |
| axle | 30 suits of 15ton hydraulic steering axle |
| Suspension | Single point hydraulic suspension |
| the thinkness of floor | 50mm-60mm |
| main beam | box type beam |
| Braking System | dual-pipes braking system, equipped with pneumatic type, parking brake system |
| clour | any colour as customer's requirement |
| Electrical System | 1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness) |
| Brake Air Chamber | double and single chamber |
| main compose of modular trailer | |
| 1. unit trailer A: 3 axis unit trailer B: 3 axis unit trailer C: 5 axis unit trailer D: 4 axis unit trailer | |
| 2. tandem steering support ( end beam, triangle support) | |
| 3.tandem joint parts | |
| 4. tractor frame | |
| 5. hydraulic power gooesneck | |
| 6. power unit (diesel engines hydraulic station) | |
| the main configeration of modular trauler | |
| 1,tyre : triangle brand tyre 7.50R15 | |
| 2,axle :julin brand special hydraulic axle | |
| 3.hydraulic components :Chinese brand | |
| A. reversing valve | |
| B. globe valve | |
| C. seals | |
| 4. suppession supports: Julin brand | |
| 5. main steel material of modular trailer: high-strength steel AH60,40Cr | |
| 6. hydraulic station: YUNCHAI2100 | |

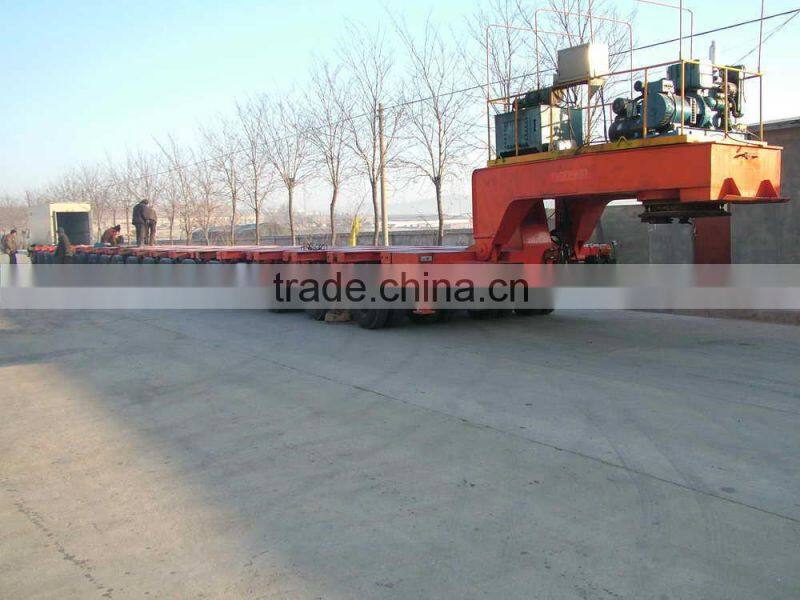

| The main technical parameters of hydraulic gooseneck | |
| 1, payload of hydraulic gooseneck(Kg) : | 30000kg |
| 2, behind gyration radius of hydraulic gooseneck: | 2550mm |
| 3, the width and heigth of joint beam | 2990mm,1080±290mm |
| 4, the height of tractor turnable: | 1450mm |
| 5, steering facility: | steering power takeoff |
| 6, the max rotation angle of tractor(relative gooseneck) : | ±55° |
| 7.kingpin : | 90mm |
| 8, the main configeration of hydraulic gooseneck | |
| a.tractor turnable,steering facility. | |
| b.main load bearing hydraulic ram,steering facility hydraulic ram.HSG-220/140×380, HSG-110/60×380 | |
| c.longitudinal beam ,joint beam for gooseneck. | |
| d.hydraulic control systerm. | |
| the main configeration of hydraulic gooseneck's control system | |
| 1,control valve of hydraulic pipe, DCV40/2 | |
| 2,globe vavel of hydraulic pipe, YQJ31.5 | |
| 3,main load bearing hydraulic ram: SG150×300,HSG-110/60×460 | |
This specification of 15 axis modular trailer only for your reference, You can choose modular freely according to your cargo.
we can designed trailer model according to your requirement.
| after sale service |
| 1. trailer body parts |
| if some place welds-opened, we will repair or change it for you, and the trailer body is guaranteed one year. |
| 2. Main accessories |
| a: the axle: the axle body is guaranteed one year or 150,000kgs, quick-wear part is guaranteed three months. |
| b: tire: the company of tire have Uniform after-sales service. |
| c: hydraulic station: warranty period is one year. |
| d: hydraulic cylinder: warranty period is one year. |
| 3. accessaries with trailer include: one tire, one steel rim, one hydraulic valves, one big draw bar, |
| one small draw bar, one suit of oil seals, a myriad of sealing, a suit of wrench for combine trailer. |
Love after-sales serviec hotline: 00 86 15066856037
Qingdao Juyuan International Trading Co., Ltd. is an industry & trade company, with a factory, Liangshan Juyuan Special Vehicle Manufacturing Co., Ltd.
Having been in the field of trailer manufacture since 2001, we are one of the companies which first gained Compulsory Product Certificate (CCC Certificate) from the Ministry of Technology and Information of P. R. C, and ISO9001 certificate.
With advanced and proven technique in design, exploitation and production, our products with the brand "Aotong"are enjoying high popularity in America, the Middle East, Africa, Southeast Asia and Russia,specially get good feed back from Kenya,Tunisia,Saudi Arabia, the Philippines, Myanmar, Vietnam, Thailand, Bangladesh, Tanzania, mozambique, Congo, Nigeria, Russia, etc. .
Now we provide more than 60 types of trailers. Our production can be done according to your requirements.
View our factory
Liangshan juyuan special Co., Ltd. is a very formalized company combined with producing, techniques researching and sales together. We produce container semi trailer, side wall/fence semi trailer, lowbed semi trailer, van semi trailer,fuel tanker & LPG/LNG,dump semi trailer,car carrier and modular semi trailer...
Welcome to visit our manufactury, we will pick you up from airport.
For more information please contact Jessie Zhang, we will give you our best service and competitive price.
Tel: 0086-532-85699621
Fax: 0086-532-85699620
Mobie/watapp/viber:+86-15066856037
Skype: Jessiezmy
Website:
