Chassis Trailer Application:
1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of containers,this series container semi trailer divides the flatbed.skeleton container type.
2. The capacity is for 50tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension.

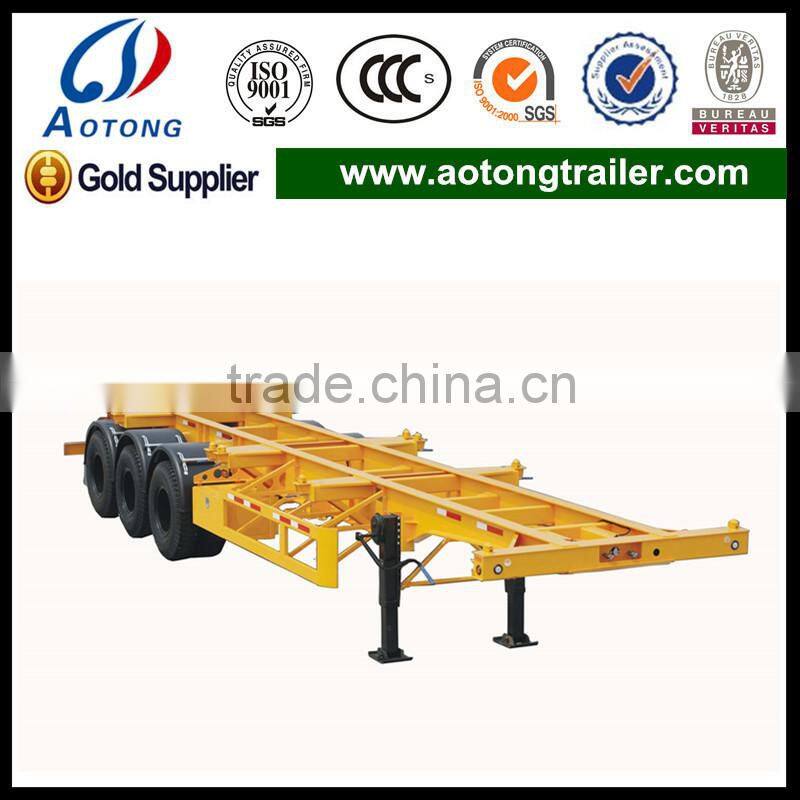

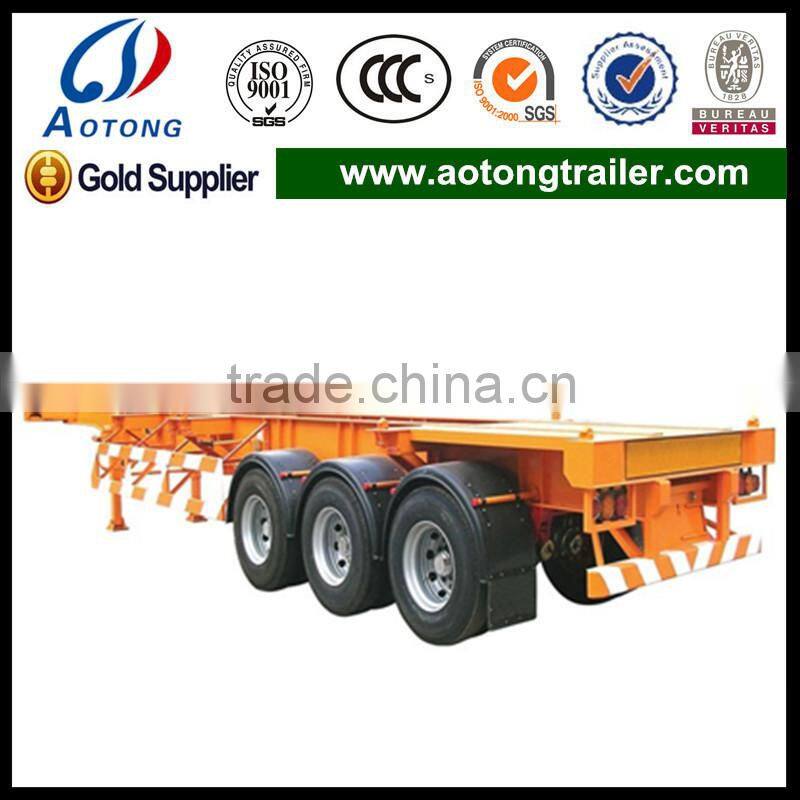

vehicle name |
3 axle 20ft 40ft skeleton container chassis semi trailer |
overall dimension (LxWxH) |
12500×2500×1550 mm |
Basic Specifications |
|
Tare Weight |
7500 kg |
Payload |
40T |
Wheelbase |
1310mm |
Running Gear |
|
Axle Specs |
3 pieces; 13T FUWA brand, BPW optional |
Tire specs |
12 pieces; 10.00R20/16pr |
Rims |
12 pieces; 8.0-20 |
Suspension |
mechanical suspensions |
Leaf Spring |
10pcs for each |
Brake |
Dual line pneumatic brake system,T30/30+T30 air chamber; parking brake |
Under Frame |
Main Beam is height 500mm Q345B |
Frame Beam |
Upper plate is 14mm, lower plate is 16mm middle is 8mm |
Cross Beam |
Mild Alloy Q235 |
King Pin |
90#(3.5’) , 50#(2’) interchangeable Type:bolted on king pin plate |
Landing Gear |
28 ton capacity; Double sides operation |
Electrical System |
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Lamp |
LED |
Painting |
Any color will be available |
Accessory |
|
Container Twist Locks |
8/12 |
Tool Box |
Two tool box with a set of standard trailer tools |
Spare tyre carrier |
One piece |
Fender |
Plastic fenders |
Usage |
The cargo's carrying part is container structure designed, mainly applicable to the transportations for ships, ports, airlines, roads, transfer stations, bridges, tunnels, and other multimodal transport matching logistical systems. |
||
|
Characteristics |
1. Using container truck, the goods can be loaded in the deliverers's warehouse and be unloaded in the receivers' warehouse without taking the goods out for transferring. 2. Customary quick dispatches are allowed , transiting the goods form one kind of transport vehicle to another is available. 3. Internal design is convenient for the goods' fill-ups and discharging, satisfing your diversified needs and wants. |
||
Other Specifications |
The frame can be flat plate style and skeleton style.Twist lock settings installed 12 only, 8 only, and 4 only to satisfy the containers with different sizes for convince. |
||
We will spary wax for the chassis trailer before shipment against saltwater corrosion.
Regarding to the shipping method, you could choose which one is better for you, by container vessel, Ro-Ro vessel or by bulk vessel.
Established in 2000, our factory is specialized in the manufacture of chassis trailer. Located in Liangshan,Jining. We enjoy convenient access to major transportation networks. Our factory covers an area of 45,000 square meters and has around 500 staff members. Furthermore, all our chassis trailer are manufactured with advanced equipments and strict QC procedure in order to ensure high quality.
Wih stable and timely supply, credible quality and sincere service, our chassis trailer sell well in both domestic and overseas market...
Welcome to visit our factory and we will pick you up at airport!
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used |
|---|---|---|---|
| CNC Flame Plasma Cutting Machine | GS | 2 | 4.0 |
| Press Machine | JC21-160 | 4 | 4.0 |
| Hydraulic Plate Bender | WC67Y-200/4000 | 2 | 3.0 |
| Hydraulic Pendulum Plate Shears | QC12Y-12*3200 | 2 | 3.0 |
| Drilling Machine with Jointed Arm | ZN3050*16 | 4 | 4.0 |
| Shaping Machine | BS6065 | 2 | 4.0 |
| Universal Rotary Milling Machine | X6232 | 1 | 4.0 |
| CNC Lathe | EL6140N | 2 | 4.0 |
| Saw Machine | GD4028N | 2 | 5.0 |
| Expander | ZX-3000 | 1 | 3.0 |
| Rolling Machine | W11-4-200 | 2 | 3.0 |
| Automatic Round Welding Machine | W11SNC-10-6500 | 1 | 4.0 |
Testing Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used |
|---|---|---|---|
| Vernier Caliper | 0.02 mm | 2 | 3.0 |
| Ultrasonic Thickness Gauge | SMART SENSOR | 1 | 3.0 |
| Sound Level Meter | AZ8928 | 1 | 3.0 |
THE MAIN COMPONENTS OF THE WARRANTY PERIOD (SEE TABLE):
ITEM NAME |
WARRANTY |
ITEM NAME |
WARRANTY |
|||
MAIN FRAME |
FRAME |
18 MONTHS |
RUNNING GEAR |
AXLE |
18 MONTHS |
|
SUSPENSION |
18 MONTHS |
AXLE BEARING |
18 MONTHS |
|||
KING PIN |
18 MONTHS |
WHEEL HUB |
12 MONTHS |
|||
BALANCE ARM |
18 MONTHS |
TIRE |
12 MONTHS |
|||
ITEM NAME |
WARRANTY |
ITEM NAME |
WARRANTY |
|||
BRAKING DEVICE |
BRAKE DRUM |
12 MONTHS |
SUPPORT DEVICE |
LANDING GEAR |
12 MONTHS |
|
BRKE CHAMBER |
12 MONTHS |
SPARE WHEEL CARRIER |
12 MONTHS |
|||
AIR RESERVOIR |
18 MONTHS |
|||||
ITEM NAME |
WARRANTY |
|||||
OTHERS |
LEAF SPRING |
10 MONTHS |
||||
BRAKE CHAMBER DIAPHRAGM |
10 MONTHS |
|||||
EMERGENCY RELAY VALVE |
10 MONTHS |
|||||
BRAKE SHOE |
10 MONTHS |
|||||
RELAY VALVE |
10 MONTHS |
|||||
Attn: Mandy Ma
Exporting Manager
Tel/WhatsApp/Viber : +86-15666482695
Wechat : moqing001
Skype : mandy31577
QQ : 735618008
We have 14 years expercience of manufacturing semi trailers.
We can design the model according to your requirements.
Welcome to visit our factory!
