MustHD 5 inches On Camera Video assist Field Monitor with HDMI input Focus Assist Marker False Color Pixel to Pixel etcMustHD 5 inches On Camera Video assist Field Monitor with HDMI input Focus Assist Marker False Color Pixel to Pixel etc

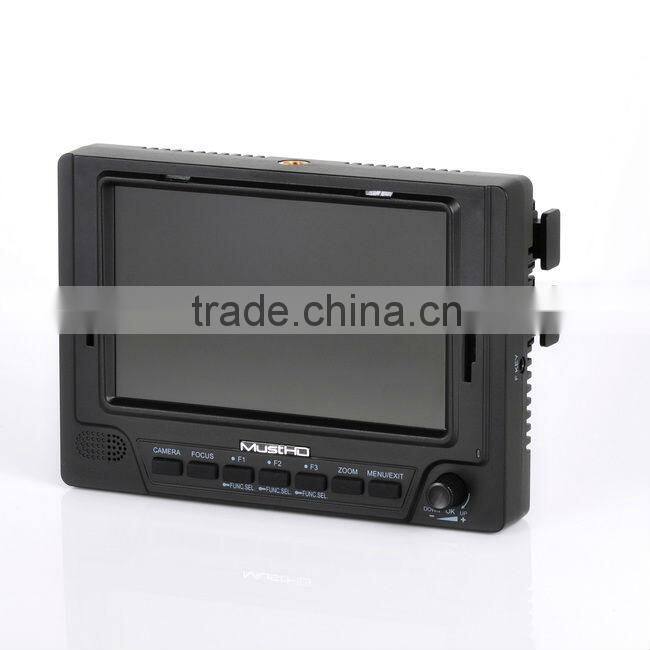

The MustHD on-camera monitor is a versatile while easy to use field monitor that aims to help camera operator (or assistant) focus the camera. With the following noticeable features, it can become a great companion to your HDSRL camera and extremely helpful to your filming.
5” LCD screen: with 800*480 resolutions, bringing you with vivid display.
HDMI input: compatible with HDSRL’s output perfectly. (HDMI output is available by optional)
Focus Assistance: it finds sharp lines in the image and highlights them with a highly-exposed white line. It can quickly be engaged and disengaged, to speed up your focus-pulling abilities while shooting in the field. It can be useful in tricky focusing situations, and when a long shoot is fatiguing the camera operator’s ability to focus by eye alone.
False Color: it is a function that helps you adjust the exposure of the camera. It superimposes different colors over the on-screen image. The colors indicate if an area of the shot is overexposed or underexposed (overexposed areas turn red, underexposed areas turn dark blue). False Color is simply a visual aide that will help you judge exposure when adjusting the iris of the camera.
Marker: markers are superimposed graphical borders that show you where the frame ends on different kinds of screens. If you’re shooting a project with 16:9 aspect ratio, it’s always a smart idea to also judge how the composition of your shots translates to a 4:3 screen. With this feature, you’ll be able to quickly see how your work will display on both sized screens.
Pixel to Pixel: this feature essentially displays an HD video signal at its full size. It’s useful to be able to see the fine details of a shot without adjusting the lens or downgrading the resolution.
Camera Button: shortcut for switching to video recording without switching delay.
Knob Control: Easy to adjust user configuration and operate the menu
Custom Preset Buttons: If you use a monitor regularly for a specific purpose, or if you know that you like a number of settings adjusted a certain way for a shoot, it can be really helpful to have a programmable preset button. Instead of having to go through all of the controls and menus to adjust different parameters, just one tap of your programmed preset button will call them all up instantly, so you can concentrate on other things.

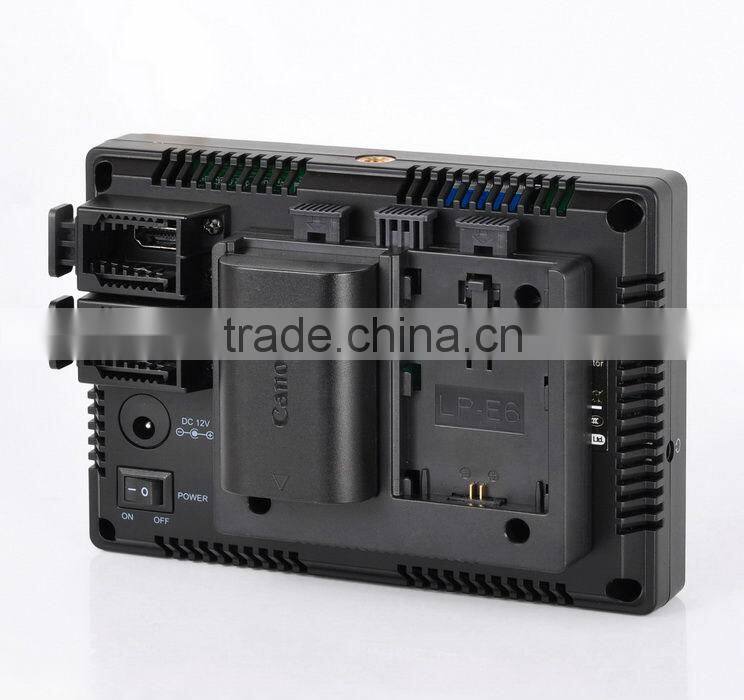

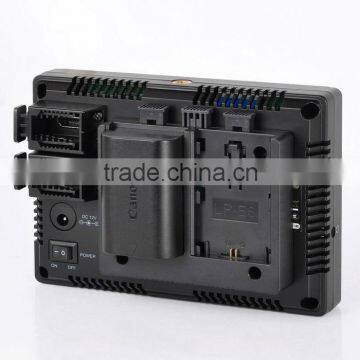

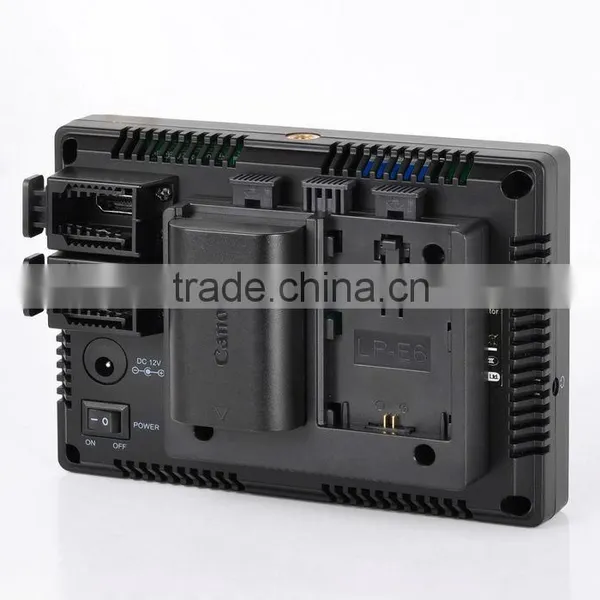

Multiple Batteries Support: comes with plate for LP-E6 (F970/DS28F are optional)

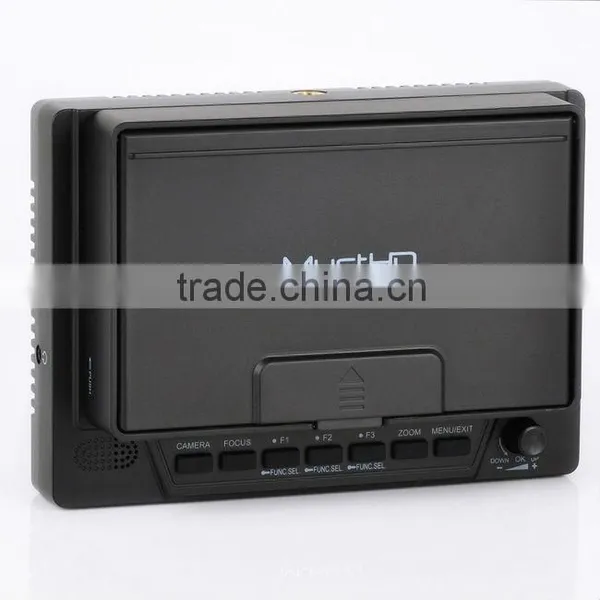

Unique Sun-Hood: easy open/close and carrying
2-year manufacturer warranty
OEM/ODM support
Technical Specifications:
LCD |
Size |
5 inches |
Resolution |
800*480 |
|
Pixel Pitch |
0.045(W)x0.135(H)mm |
|
Color Depth |
16.7M (8bit) |
|
Viewing Angle |
H: 120 degrees V: 140 degrees |
|
|
Luminance of white |
350 (Center) |
|
Contrast Ratio |
500:1 |
|
Display Area |
108 (H) x 64.8 (V)mm |
|
|
Input/Output Connector |
1x HDMI input 1x HDMI output (optional) |
|
Input Signal |
HDMI |
480i/480p/720p/1080i/1080p |
Output Signal |
HDMI |
480i/480p/720p/1080i/1080p |
Audio Out |
Analog Stereo (phone jack) Internal speaker (Mixed Mono) |
|
Power |
DC 6-20V |
|
Power Consumption (Approx) |
4.5 Watts (typical) |
|
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
|
Storage Temperature |
-20°C to 60°C (14°F to 140°F) |
|
|
Main Body Dimension (mm/inch) |
148x105x50 (5.82x4.13x1.97) |
|
Weight |
0.39kg/0.86lbs |
|
Accessories |

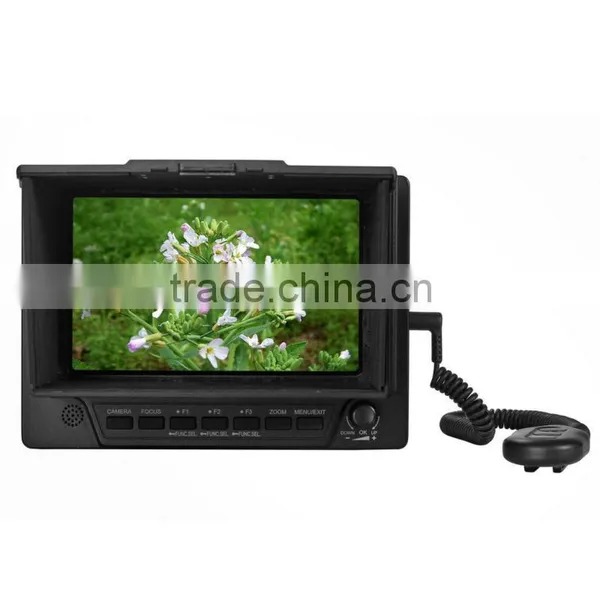

1. Field Monitor with Sun-hood 2. AC adaptor 3. User manual 4. F Key Cable Control 5. Shoe mount adaptor 6. Screws(for fixing the battery plate more tightly) 7. HDMI cable 8. Battery Plate-LP-E6 9. Battery Plate-F970(optional) 10 .Battery-D28S(optional) 11. Carry bag(optional)
|
|
