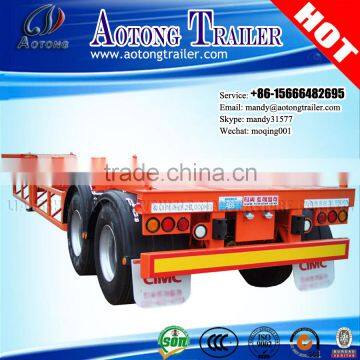

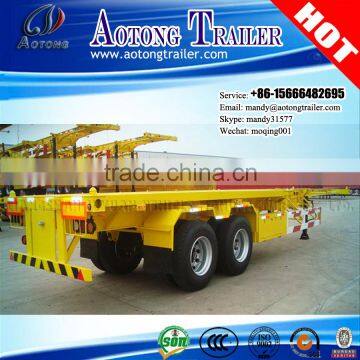

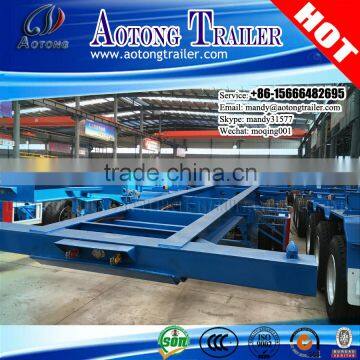

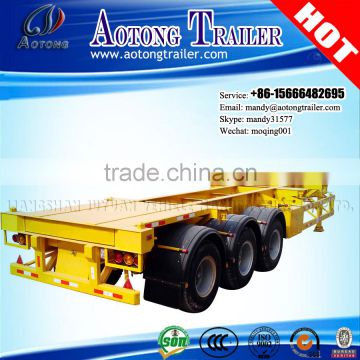

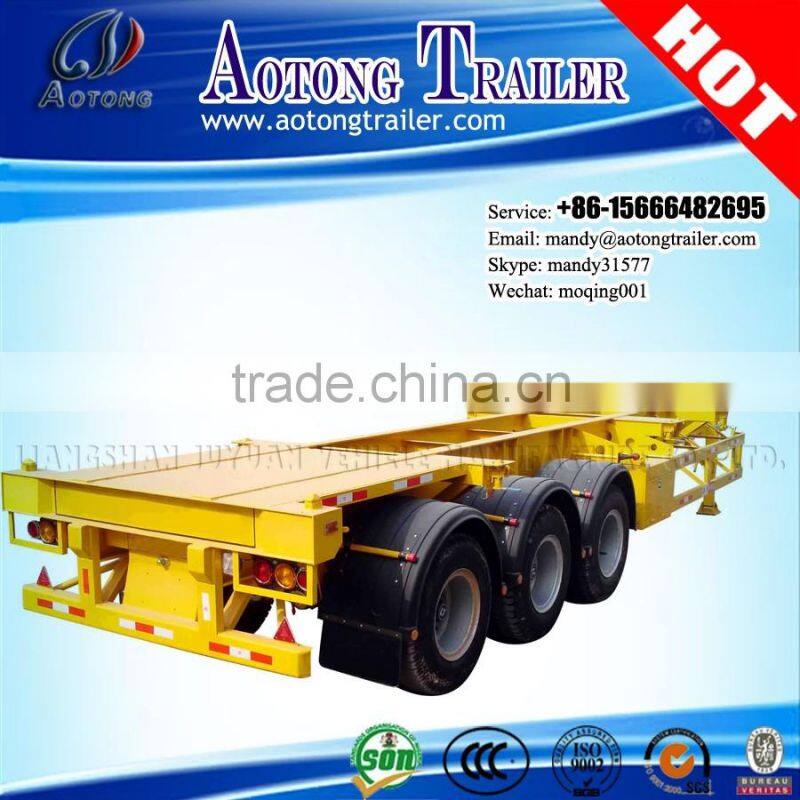

2 axle or 3 axle 20ft 40ft Skeleton Semi Trailer container chassis trailer for sale

FOB Price

USD $9,000 - $12,000 / Set

1 Set(Min.Order)

Supply Ability 500 Unit / Units per Month
Port Qingdao or Tianjin Port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Semi-Trailer	Material	Steel
Certification	Other, CCC,ISO,SGS,BV,SONCAP	Size	40ft, 1250025001550mm
OEM No.	Juyuan Trailer	Max Payload	50 tons
Place of Origin	Shandong, China	Brand Name	AOTONG
Model Number	LAT9282TJZG

Product Description

Creative design for your own special transportation program.
High tensile steel provides the strongest performance of semi trailer.
Automatic submerged arc welding and straightening machines make best main beam.
One coat blasting plus two coats polyester painting.
Standard and Brands of semi trailer parts can be chosen according to different requests.
Necessary accessories offered.

2 axle or 3 axle 20ft 40ft Skeleton Semi Trailer container chassis trailer for sale

Model		Outside Dimension L×W×H (mm)		NO. of Axle	Tire size	Total Weight (kg)	Rated Load (kg)
LAT9282TJZG		13000X2500X1580		3	11.00R20	37680	30480

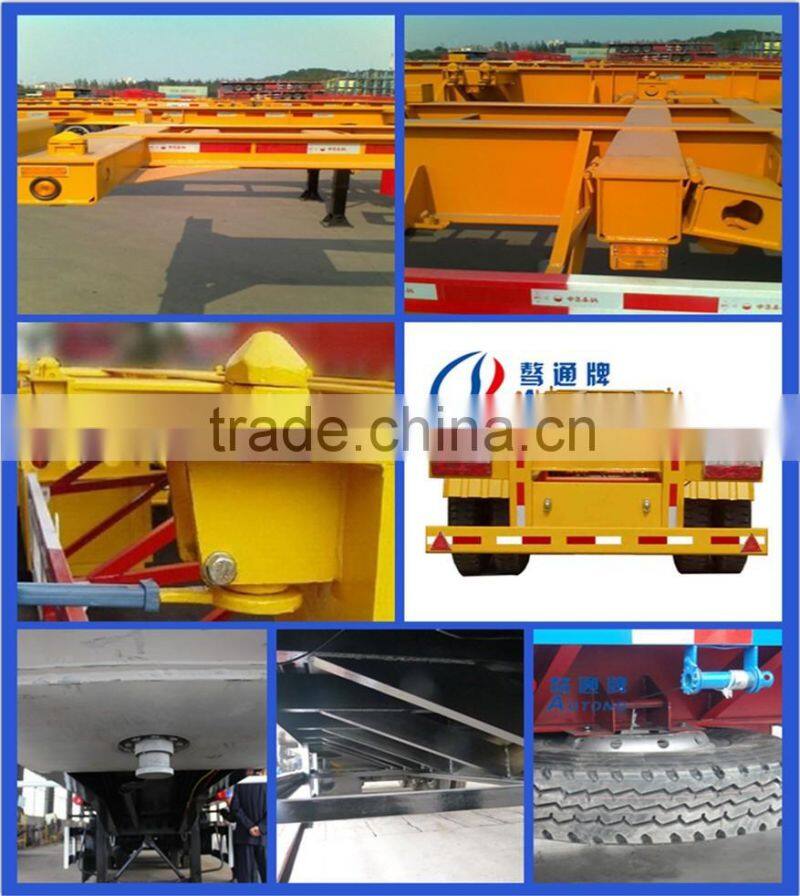

Description
Spare parts	Suspension		Common Material Suspension
	King Pin		3.5" or 2.00" traction pin Jost brand
	Rim		9.0-22.5 China brand 12 / 8 pieces
	Twist Locks		3 pieces
	Steel Spring		10 pieces
Axle	Axle No./ weight		3 or 2 axles FUWA brand
Tire	Number of Tire		12 / 8 pieces
	Spare Tire Carriers		2 pieces
Frame	Frame Beam		Height is 500mm
			Upper plate is 14mm, lower plate is 16mm,middle is 8 mm.
	Side beam		16# channel steel
	Landing Leg Support		28T
Brake	Brake		TKL brand
	Brake Chamber		Two double and two single chamber( TKL brand)
	ABS system		Can be choose freely
Electrical	Voltage		24V
	Receptacle		7 ways(7 wire harness)
LED Light	Front marker lamp		Front corner marker lamp is red, Reflector lamp is white
	Side marker lamp		Orange
	Rear lamp		Red
	Turn signal lamp		Orange
	Painting		According to your requirement
	Marking		According to your requirement
	Side Guard		According to your requirement

1. This series container chassis semi trailer is applicable for the transportations of the 20ft,40ft,45ft,53ft containers.

2. The capacity is for 60tons , we can manufacture it according to your needs.

3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension

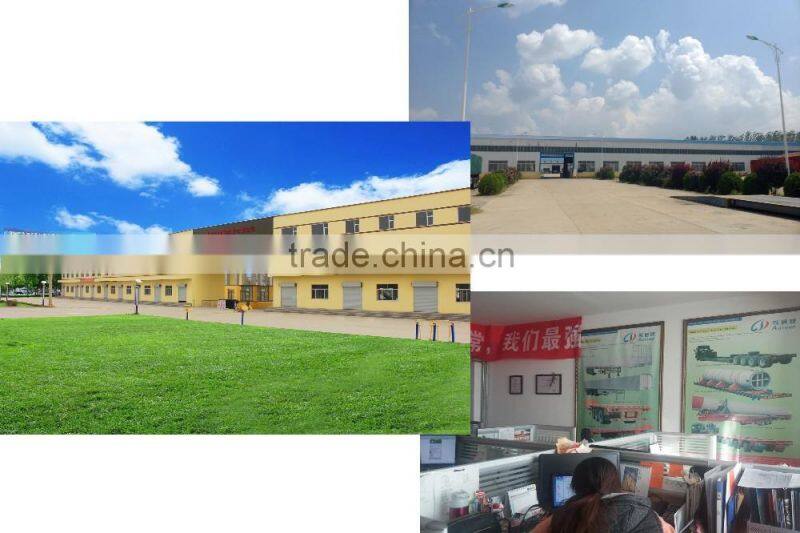

Welcome to visit our factory and we will pick you up at airport!

Production Machinery:

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used
CNC Flame Plasma Cutting Machine	GS	2	4.0
Press Machine	JC21-160	4	4.0
Hydraulic Plate Bender	WC67Y-200/4000	2	3.0
Hydraulic Pendulum Plate Shears	QC12Y-12*3200	2	3.0
Drilling Machine with Jointed Arm	ZN3050*16	4	4.0
Shaping Machine	BS6065	2	4.0
Universal Rotary Milling Machine	X6232	1	4.0
CNC Lathe	EL6140N	2	4.0
Saw Machine	GD4028N	2	5.0
Expander	ZX-3000	1	3.0
Rolling Machine	W11-4-200	2	3.0
Automatic Round Welding Machine	W11SNC-10-6500	1	4.0

Certifications

FAQ

1. Can i have samples of this type of trailer to test the quality?

Yes, you can buy any samples to test the quality,our MOQ is 1 set.

2. What's the delivery time and can you lower the price?

It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.

3. Can i customize the painting and the trailer design?

Yes, we offer customized design and logo for reasonable type.

4. What's the payment method?

TT 30% as Deposit, Balance Before shipment by TT or L/C at sight
