Help Center1.3MP Image Sensor Digital USB Microscope With 200X Magnification
Related Products
-
Microscope With Display tv Screen/ MicroscopyUS$ 75 - 95MOQ: 1 Piece -
Handheld USB Microscope for Electronics/ Diamond/ Pcb/ Jewellery/ JewelryUS$ 22 - 50MOQ: 100 Pieces
-
Educational Digital Microscope for Teaching/ for Kid/ Digital Microscope for Educating PurposeNegotiableMOQ: 1 Piece
-
Electric Microscope/ Microscope With Top Light/ Mini Led Light MicroscopeUS$ 20 - 35MOQ: 100 Pieces
-
Battery Powered Binocular Stereo Microscope for Education Research Pcb and JewelryUS$ 50 - 95MOQ: 48 Pieces

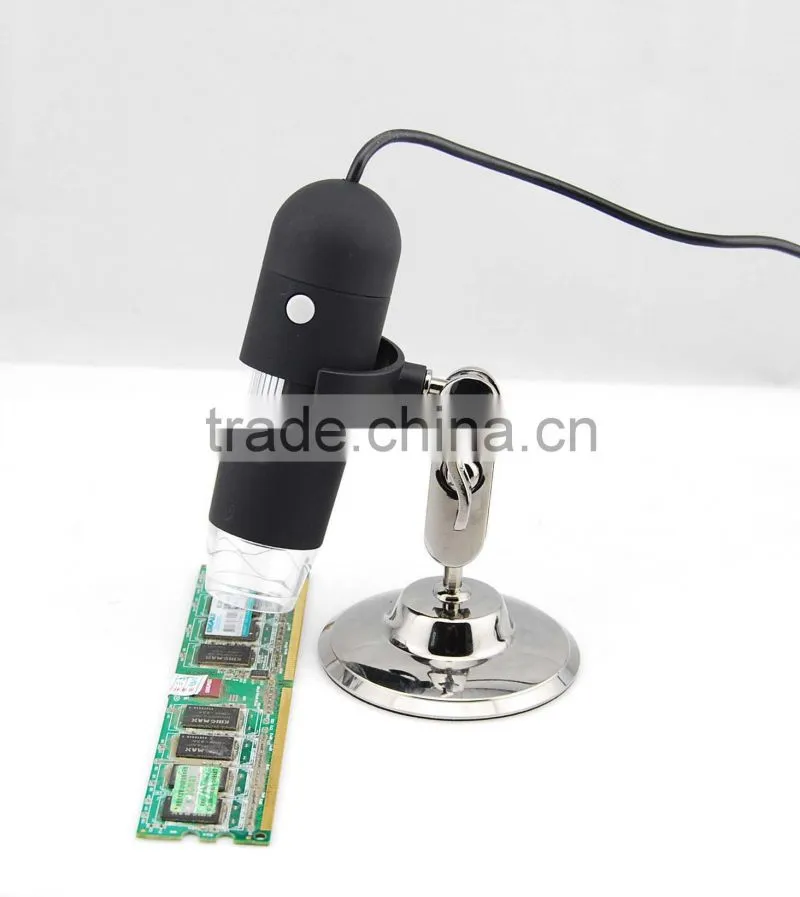

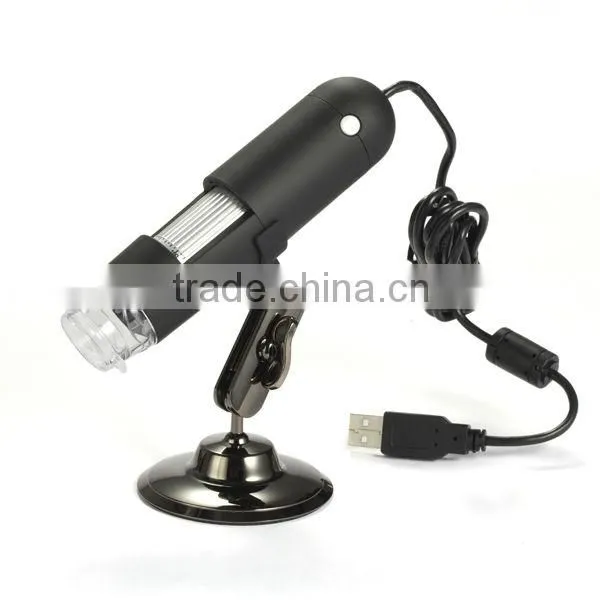

Overview:
This portable USB microscope with 200X magnification is a high-tech while easy to use Digital Microscope. With this unit you may see a unique & “bigger” world.
It is applicable in many fields such as visual inspection on electronic components, and materials in a full range of uses, beauty shop and education.
Its 1.3M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection enviornment.
The measurement software can help you to measure tiny objects easily and precisely (as small as 0.001mm).
All those excellent features make it a good aid for your daily inspection on tiny objects.
Detailed Specifications:
* Image sensor: 1.3 Mega Pixels (interpolated to 2M)
* Focus Range: Manual focus from 10mm to 500mm
* Frame Rate: Max 30f/s under 600 Lus Brightness
* Magnification Ratio: 10x to 200x
* Light source: 8 LED (adjustable by control wheel)
* Still capture resolution: 1600x1280 (2M), 1280x1024,
1024x960, 1024x768, 800x600, 640x480, 352x288, 320x240
* Video capture resolution: 1600x1280 (2M), 1280x1024,
1024x960, 1024x768, 800x600, 640x480, 352x288, 320x240
* Frame Rate: Max 30f/s under 600 Lus Brightness
* Video format: AVI
* Photo format: JPEG or BMP
* PC interface: USB2.0
* Power source: 5V DC from USB port
* Operation system: Windows2000/XP/Vista/Win7/Win8, Mac OS X 10.6 or above
* OSD language: English, German, Spanish, Korean, French, Russian
* Bundle software: MicroCapture with measurement & calibration function
* Working temperature: -20°C ~ +60°C
* Size: 110mm (L) x 33mm (R)
It can be used for purposes as below:
1. Textile industrial for textile inspection
2. Printing inspection
3. Industrial inspection: PCB, Precision machinery
4. Educational purpose
5. Hair examination
6. Skin examination
7. Microbiological observation
8. Jewelry & coin (Collections) inspection
9. Visual Assistance
10. Others
Notes before use
1. Don't dissemble the digital Microscope or change the interior parts, It can cause damage.
2. Don't clean the Microscope with alcohol organic solvents
3. Don't touch the lens with your fingers.
4. Avoid outdoor use if possible.
5. Storage temperature, -20° C ~ +40° C, Humidity: 45%RH ~ 85RH%.
6. In case the product gets wet, leave Power connection immediately. And do not dissemble or dry by hair dryer. Send to repair center if The microscope was affected by liquid or other elements.
7. Measurement Data only for reference.
Why Us:
Original developer and manufacturer
8 years Experience in developing/ manufacturing/ OEM
Good materials, Strict quality Control
Competitive and Reasonable price
Short Leadtime
Best service and efficient communication
12 months warranty
CE, RoHS compliance
