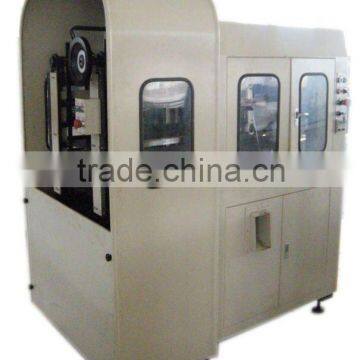

Help CenterWB360 Automatic Notebook Paper Hole Punching Machine
Related Products
-
WB360 Automatic Paper Hole Making / Punching MachineNegotiableMOQ: 1 Set -
WB520 Semi Automatic Double Wire Binding MachineNegotiableMOQ: 1 Set
-
WBZD380 Twin Loop Wire Book Binding MachineNegotiableMOQ: 1 Set
-
WB520 Automatic Double Wire Calendar Binding MachineNegotiableMOQ: 1 Unit
-
WB380 Wire o Binding MachinesNegotiableMOQ: 1 Set
Specifications
1. Automatic paper hole punching2. High-quality of punching
3. No coarsepunching edge
4. Accurate punching position
WB360 automatic punching machine | post press punching machine | paper hole punching machine
Purpose
The automatic punching machine is mainly used to punch holes for pre-bound books, with thickness of Max. 2mm each time(the thickness can be adjustable according to the quality of the paper), then the sheets is turned over by means of a wheel and shifted into the punching unit where they are automatically aligned laterally and longitudinally and punched. The punched sheets are kept in numerical sequence and collected on a jogger separately driven for further process. A wide range of optional punching bare are available.
Features
1. The simple operation system does not need the specialized experience. Easy to operate.
2. Safety and high efficiency
Technical Data
| Paper thickness | 60-360g/m2 |
| Max. sheet | 360*360mm |
| Min. sheet | 140*100mm |
| Max. sheet-feeding thickness per time | 1.5-2mm |
| Max. punching speed | 7000times/hour |
| Power | 380V/50HZ,380V/60HZ |
| Power of main motor | 2.2KW |
| Dimension (LxWxH) | 1900*1030*1780) |
| Net. weight | 1200kg |
