Specifications
E27 3W led light bulb BBL009Constant current drive inside
Alumin heat sink
Various color
CE&ROHS certification

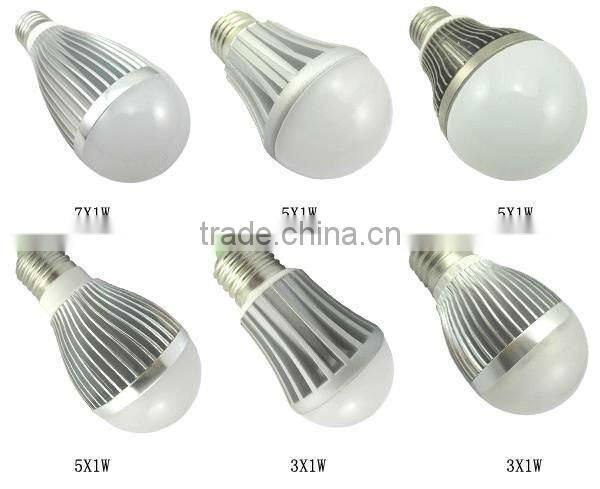

E27 3W led light bulb BBL009
1 Technical Specification of the Led bulb
Technical specifications of 3w led bulb | |
Introduction | |
Base (standard designation) |
E27( E26/GU10/B22 optional) |
Shell material |
Aluminum alloy+Glass |
Aluminium Housing Color |
Silver white(Silver white optional) |
Plastic cover version |
Frosted |
Mercury-free |
Yes |
Recycling |
Yes |
Certificates |
CE,RoHS |
Main electrical data | |
Total power/wattage (W) |
3 |
Rated wattage(W) |
3 |
Input Voltage (Nominal voltage) |
AC85-265V |
Operating frequency(Hz) |
50-60 |
Rated starting time (s) |
0.1S |
Power factor(PF) |
>60% |
Polarity |
Bipolar Protection |
LED Drive |
constant-current drive |
Light Source |
1w High Power LED |
LED lamps quantity |
3 |
Lifespan | |
Nominal lamp life time |
50000Hours |
Light Technical Data | |
Luminous Flux Output (LM) |
630-700 |
Rated luminous flux (LM/W) |
90-100 |
Beam Angle |
140° |
Rated color rendering index (Ra) |
≥75 |
Emitting Color |
White |
Light color |
white, warm white, red, yellow, blue, green |
Rated color temperature (k) |
2800k-7000k |
Operating temperature(Celsius degree) |
-30° - +50° |
Storage temperature(Celsius degree) |
-40° - + 80° |
Operation Humidity(RH) |
10%-90% |
Geometries | |
Diameter(mm) |
49 |
Length(mm) |
100 |
Packing Parameter | |
Weight (g) |
74.1 |
Packing material |
Box carton |
2 Specification of high power led bulb series
1) The following parameters is tested under the temperature of 25 degree
2) Voltage input: AC85-265V
3) Lifespan: 50,000Hours
4) Working temperature: -39 ~ 50 degree
5) The led color can be determined by the customers’ demands and the color can be single and RGB, gradual changing, jumping
6) Easy installation, big beam angel, dustproof, anti-creeping and anti-corrosion
7) The flux in white as an example: CCT: 2500-7000( can be determined according to customers’ demands)

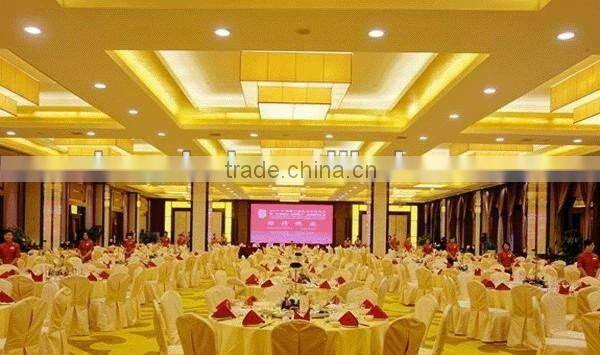

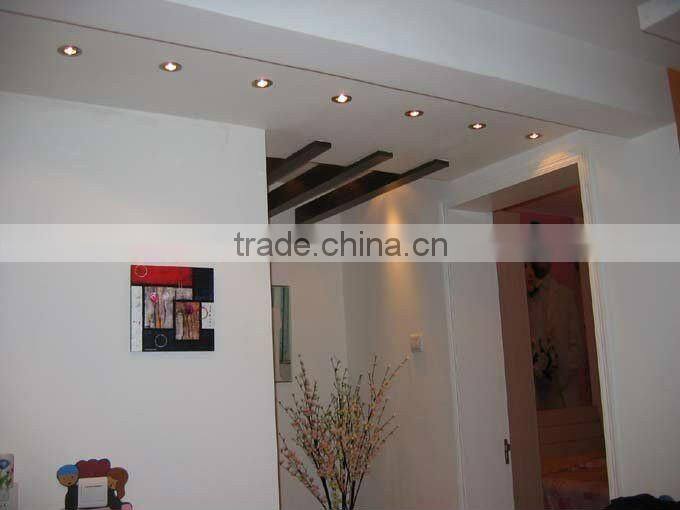

3 Application of LED Bulb
shop, window, mall, hotel, exhibition hall, room and counter etc.
low price led bulb
