Insulated glass is also called double glazed units,insulating glass.
Insulating glass is a combination of two or more pieces of glass, with high-strength composite stick close airtight plastic, made by the second sealing technology. Interval of aluminum frame
glass dock filled with desiccant to ensure that air or inert gas between the glass high and dry. Reduce indoor and
outdoor environment heat transfer, thus reducing the heat and to noise; prevent the temperature inside and outside
the large glass condensation; effective in reducing solar access.
using a variety of different specifications , such as different thicknesses and sizes, colorless transparent glass
and tempered glass, laminated glass, silk printing glass, colored glass,heat-reflective coated glass, Low-E coated glass and many other varieties. Can also be made into flat or cambered insulated glass.
Parameter:
Maximum Size: |
3500x2000mm |
Minimum Size: |
300x300mm |
Thickness of glass: |
3mm to 19mm in various combinations, 4mm+6A/9A/12A+4mm, 5mm+6A/9A/12A+5mm, 6mm+6A/9A/12A+6mm, 8mm+6A/9A/12A+8mm, 10mm+6A/9A/12A+10mm, 12mm+6A/9A/12A+12mm, and so on |
Aluminum Strips |
6A, 9A, 12A, 15A, 16A, 19A |
Color: |
Clear,ultra clear,F green, dark blue, Ford blue, euro grey, dark grey, bronze, green blue,etc |
|
Gas filling:
|
Air or argon
|
glass |
TUV |
SHGC |
SC |
U value |
6mm blue float glass+12 air+6mm clear low-e glass |
23 |
0.47 |
0.54 |
1.8 |
6mm grey float Glass+12 air+6mm clear low-e glass |
13 |
0.41 |
0.48 |
1.8 |
6mm green float glass+12 air+6mm clear low-e glass |
17 |
0.42 |
0.49 |
1.8 |
6mm clear float glass+12 air+6mm clear low-e glass |
41 |
0.66 |
0.74 |
1.9 |
Quality standard:CCC , ISO9001, GB/T11944-2002 insulating glass standard china
Thickness:12mm-60mm
Products can be combined by clear float glass, tinted glass , reflective glass, low-e glass , tempered glass , laminated glass ect.
Any colour, shape, sizes, can be customized according to your request.
Applications:
Such as window glass,door glass and food counters, refrigerator ,curtain wall ,skylight,and so on.

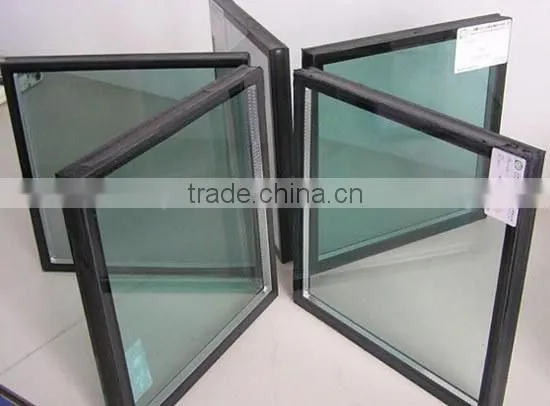

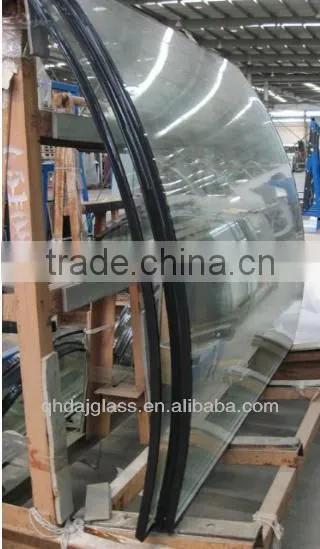

Glass picture:

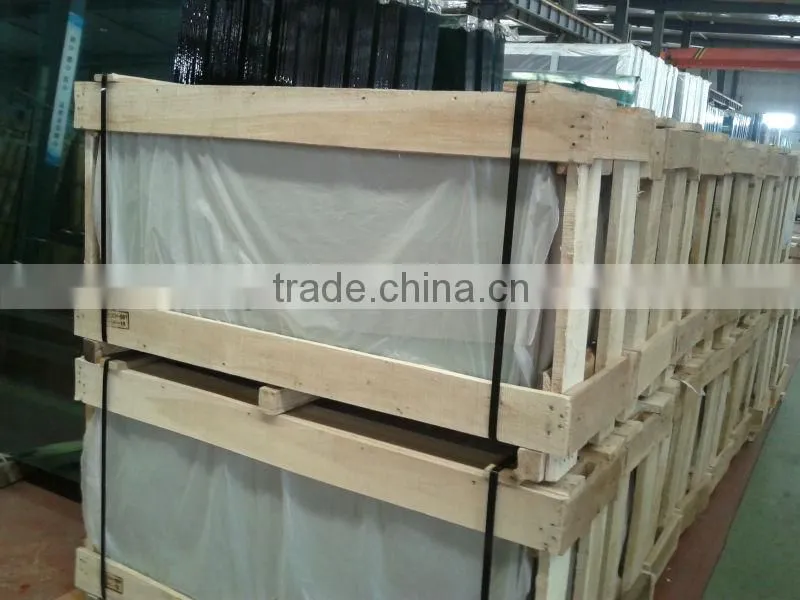

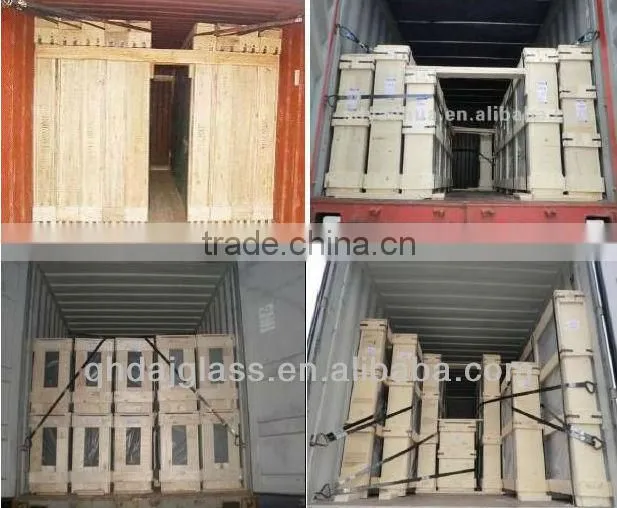

Packing:

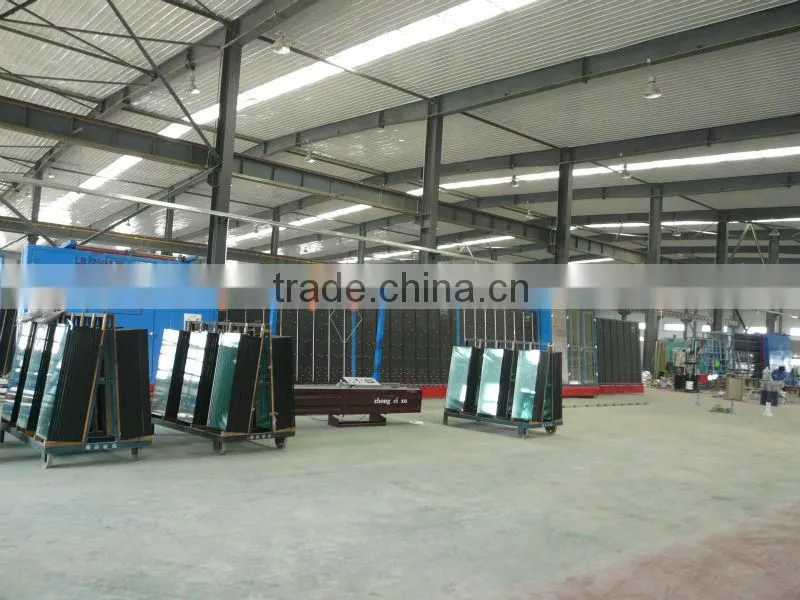

Equipment:

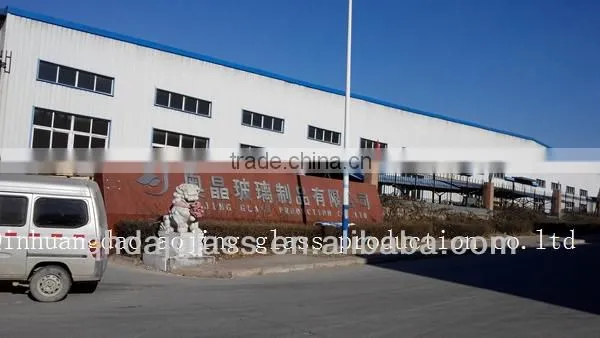

our factory:
certificate
