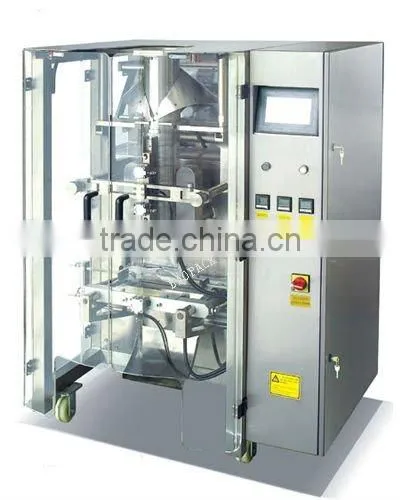

Help CenterHigh Speed Automatic Packing Bag Machine
Related Products
-
Filling and Sealing MachineUS$ 5,000 - 50,000MOQ: 1 Set -
Packaging Machine (VFFS/ Vertical Form Fill Seal Machine)US$ 1,000 - 50,000MOQ: 1 Set
-
Automatic Vertical Packing MachineUS$ 5,000 - 50,000MOQ: 1 Set
-
Vertical Filling and Packing MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Rainbow Sweets Packing MachineNegotiableMOQ: 1 Set
Applications:
1. Solid: candy,peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, pet food, etc.
2. Granule: MSG, grain,refined monosodium glutamate, capsule, seed, condiment, granulated sugar,chicken essence, melon seeds, nuts, granular drug, pesticide, fertilizer, feed,etc.
Main Features andCharacteristics:
1.Pouch type: The bag fill machine is suitable for kinds of pre-made pouches such as flat and stand-up pouches.
2.High speed: Rezpack high speed bag fill seal machine reaches 68bags/min.
3.Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
4.Easy to adjust only about 10 minutes to change different pouches.
5.Frequency control: speed can be adjusted by frequency conversion with the range.
6.High automation: the high speed bag fill seal machine is unmanned in weighing and packing process, and alarms automatically in case of failure.
Automatic packing equitment for preformed bag can pack different products at the sametime, such as liquid with powder, granule or solid with think liquid or powder,etc., just choose different measurement devices according to differentmaterials.
Automatic packaging equipment for preformed bag is versatile and suitable for all types of preformed bags packaging,including side seal bags, fin seal bags, gusseted bags, block bottom bags,zip-lock re-closeable bags, stand-up pouch with or without spout, compoundpaper bag, etc., and only by quick adjustment without size parts change over.
Its easy to operateproduct and bag size changeover.
Complying with GMPstandard, all product contact parts are in stainless steel or food gradematerials, guarantee hygiene and security of the food.
Automatic packagingequipment for preformed bag can give an alarm when no packing article orwrapping bag not opened.
The speed of automaticpackaging equipment for preformed bag is controlled by frequency conversion,and can be adjusted within the range according to the requirement.
Adopt Japan OMRON PLC and HITECH touchscreen electric control system.
Optional:
1. Washdown and anti-rust construction
2. Possibility to link-up and synchronize with other upand down stream packaging equipment
Standard Accessories:
Hot foil date coder
PLC controller
Pouch open guide withopen detector
Vibrating Dosing chute
Pneumatic cylinders
Temperature controller
Pneumatic valves
Vacuum pump
Frequency converter
Discharge conveyor
Optional Accessories
Filling and dosing machine
Overhead work platform
Bulk feed system such as elevation, screw,vibration, vacuum feeder etc.
Discharge hook-up conveyors
Check weigher
Metal detector, etc.
Technical Parameters:
Machine Name |
High Speed Bag Fill Seal Machine |
| Bag types | standup bag, portable bag, zipper bag,4-side sealing bag, 3-side sealing bag, paper bag, etc. |
Function |
Bags dispensing, Coding, Opening, Dosing 1st, Dosing 2nd, Heat sealing 1st, Heat sealing 2nd, and Bags discharge |
stations |
eight |
Bags size |
W:80~200mm L:100~300mm |
Filling Volume |
5 1500g depending on type of products |
Capacity |
40-68 bags/min depending on type of product and packaging material used |
|
Total power consumption
|
2.5Kw |
Machine Weight |
Approx. 1,000 Kgs |
Machine Dimension |
1540x1240x1465mm |
Compress air requirement |
> 0.2m3/min (to be supplied by user) |
Our Samples
RezPack Machinery Inc. is a specialist in automatic packaging equipment and services.
With experience of 20 years, a team of highly qualified professionals, and the most advanced design and manufacturing technologies, we offer innovating solutions in packaging equipment and systems with a main target, to contribute an additional value to customers.
We are a flexible packaging industry leader with an extensive product line, leading edge designs and the strongest commitment to customer service.
As an ISO9001 certified company, we constantly focus on the quality of our products, so we passed the CE certification.
Thousands of our machines are used in a variety of industries including food, beverage, hardware, electronics and pharmaceuticals.
Our customers are primarily in the USA, Canada and South America. Installations can also be found in many European countries, the Middle East, New Zealand and Australia.
