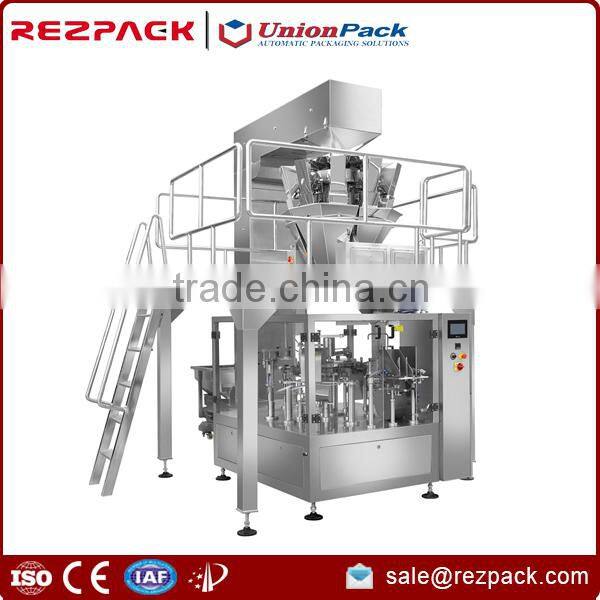

Dry Food Packing Machine

Dry food packing machine

Applications:

1. Solid species: candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed food, daily necessities, etc.

2. Granule species: grain, MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials, etc.

3. Powder species: spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides fertilizers, chemical raw materials, etc.

4. Liquid Species: rice wine, soy sauce, rice vinegar, fruit juice, beverages, detergent and so on.

5. Thick liquid Species: tomato sauce, peanut butter, jam, chili sauce, bean paste and so on.

6. Any other materials can be bagging.

Main Features and Characteristics:

1. Full-automatic premade bag packaging machine instead of handwork package, carry out automation of packing for large and small scale enterprise. This type machine improves the production efficiency and lowered cost for every work of life.

2. Change the specification of the wrapping bag rapidly, the automatic given bag device is width can easy adjust by adjustment automatic.

3. Accord with the sanitary standard of the food processing machinery, the spare parts on the machine which touch the product or packing bag adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food.

4. The packing materials loss low, what this machine is used is to prefabricate wrapping bag, the wrapping bag pattern is perfect, it is of high quality to seal, this improved the product specification.

5. Easy to operate, adopt advanced PLC to add POD (the touch-sensitive screen) electric control system, the man-machine interface is friendly.

Specifications and parameter:

Model: RD6-300

Working stations: Six

Function: Bags dispensing, Coding, Opening, Dosing, Heat sealing, and Bags discharge

Pouch type: All type of heat sealable preformed side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock re-closeable bags, stand-up pouch with or without spout etc.

Bags size: W:200~300mm L:100~300mm

Filling Volume: 5-1500g depending on type of products

Speed: 25-45bags/min, depending on type of product and packaging material used

Total power consumption: 1.5Kw

Machine Weight: Approx. 1,000 Kgs

Machine Dimension: 1540x1240x1465mm

Compress air requirement: 0.6 m3/min (to be supplied by user)
