High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen

High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen thumbnail-1
High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen thumbnail-2
High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen thumbnail-3
High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen thumbnail-4
High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen thumbnail-5
High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen thumbnail-6
High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen photo-1
High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen photo-2
High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen photo-3
High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen photo-4
High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen photo-5
High Frequency Pure Sine Wave 500w 24vdc to 240vac Inverter With USA Socket and With LED Display Screen photo-6
US$ 50 - 56 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CHSENTE
Model Number:
STP-500W
Contact Supplier Request Quote Chat Now
Yueqing Sente Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name CHSENTE
Model Number STP-500W
Output Power Other, 500W
Output Type Single
Size 260*150*75mm
Weight 1.8KGS
Input Voltage 24V DC
Output Voltage 240V AC
Type DC/AC Inverters
Output Frequency 60Hz
Output Current 2.08A

Product Description

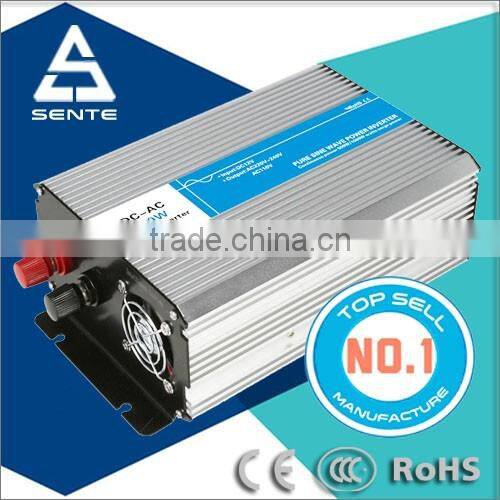

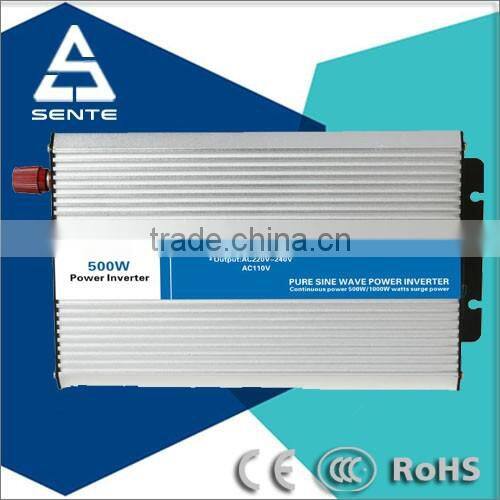

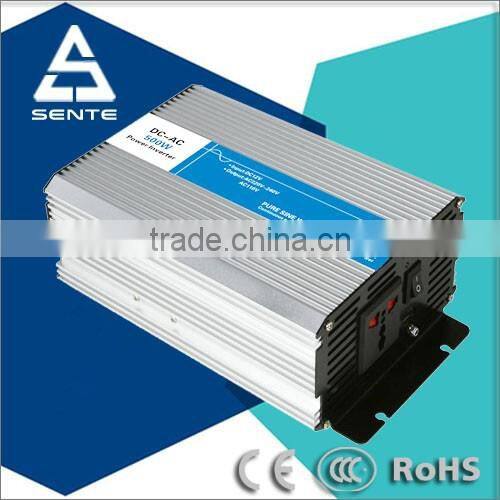

High frequency pure sine wave 500w 24vdc to 240vac inverter with USA socket and with LED display screen

Main features

1.Output waveform: Pure sine wave

1.Perfect protections
2.Patents/OEM/CE/RoHS
3.High quality and best price
4.Warranty: 2 years



High frequency pure sine wave 500w 24vdc to 240vac inverter with USA socket and with LED display screenHigh frequency pure sine wave 500w 24vdc to 240vac inverter with USA socket and with LED display screenHigh frequency pure sine wave 500w 24vdc to 240vac inverter with USA socket and with LED display screen



Specification: 500W pure sine wave inverter

Model

STP-500W

Output power

500W

Peak power

1000W

Input voltage

DC12V

DC24V

DC48V

DC12V

DC24V

DC48V

Output voltage

100VAC or 110VAC or 120VAC ±5%

220VAC or 230VAC or 240VAC ±5%

No-loadcurrent(less-than)

0.6A

0.3A

0.15A

0.6A

0.3A

0.15A

Output frequency

50HZ±0.5HZ or 60HZ±0.5HZ

Output wave

Pure sine wave

Waveform Distortion

THD<3%(linear load)

USB

5V , 1A

Max. working efficiency

94.80%

Input voltage range

9.55-15.5V

19.8-30.27V

40.2-60.4V

9.55-15.5V

19.8-30.27V

40.2-60.4V

Operating temperature range

-10°-+50°

Storage temperature

-30°- +70°

Humidity

Max. 90%, non-condensing

Warranty

Two years

Dimensions(W*H*D)

260*150*75mm

Package size

290*190*120mm

Net weight/Gross weight

1.8/2.3kg

Starting

bipolar soft start

Low voltage alarm

10.5±0.5V

21V±0.5V

42V±1V

10.5±0.5V

21V±0.5V

42V±1V

Low voltage shut down

9.5±0.5V

20V±0.5V

40V±1V

9.5±0.5V

20V±0.5V

40V±1V

Low voltage recovery

13±0.5V

24V±0.5V

48V±1V

13±0.5V

24V±0.5V

48V±1V

Over voltage  shut down

15.5±0.5V

31V±0.5V

61V±1V

15.5±0.5V

31V±0.5V

61V±1V

Over voltage recovery

14.8±0.5V

29.5V0.5V

59V±1V

14.8±0.5V

29.5±0.5V

59V±1V

LED Lights

Blue indicator light (inverter output, normal operation); the red indicator flashes (under / over voltage, overload, temperature, short circuit)

Protection

Battery over under / over voltage, overload, temperature, AC short circuit protection (positive and negative polarity protection)

Fuse

DC short circuit protection

Display

LED high-definition digital display

Circuit Topology

Frequency link

Cooling way

Intelligent cooling, built-in cooling block



High frequency pure sine wave 500w 24vdc to 240vac inverter with USA socket and with LED display screen

Packaging & Shipping

 High frequency pure sine wave 500w 24vdc to 240vac inverter with USA socket and with LED display screen



Our Services

If you can cooperate with us, we will be honored and you will benefit from:

- The good construction warranty- 1 year

- Your client satisfied on the right schedule and quality

- You can get a good reputation from your market and obtain more orders

- Our professional service before and after sale

- The free inverter samples after your first 3 orders

- The reasonable price

- Any question from you are welcome and will be replied in 24 hours



Company Information

 High frequency pure sine wave 500w 24vdc to 240vac inverter with USA socket and with LED display screen



Our Team,

is a young team full of passion,most of staffs in SENTE’s time have abundant experience.What's more, we are devoted ourselves to exchange integrity for customers’ confirm. According to the different requirements of customers, actively try our best to assist customer to offer professional service, provide reasonable suggestion and guarantee quality on the base of completing the order on time, in addition,we also help customer save the cost.We all believe that only sowing customer satisfaction seeds can have business growth in the near future.



High frequency pure sine wave 500w 24vdc to 240vac inverter with USA socket and with LED display screen



FAQ



 1. What is inverter?

Inverter is an electronic equipment that turn 12v/24v/48v dc into 110v/220v ac.

2. How many kinds of output wave form for inverters?

Two kinds. Pure sine wave and modified sine wave. Pure sine wave inverter could provide high quality AC and carry various loads, while it requires high tech and high cost. Modified sine wave inverter load poorly not carrying inductive load, but the price is moderate.

3. How do we equip an appropriate inverter for battery?

Take a battery with 12V/50AH as an example. Power equal current plus voltage then we know the power of battery is 600W. 12V*50A=600W. So we can choose a 600W power inverter according this theoretical value.



Note:

If you have any question or need, pls feel free to conatct me at anytime! And I will try my best to assist you!
