Textured Soya Meat Making Machine/TVP/TSP Food Making Machine

Specifications

Textured Soya Meat Making Machine
1.offer the formular
2.low consumption and price
3.differen shape
4.can eat for all region





Hot Sale Soya Nuggets Making Machine for All Region Person

1. Description:soya nuggest making machine

Textured or textures vegetable protein (TVP), also known as textured soy protein (TSP), soy meat, or soya meat, a meat analogue or nutritious meat extender is made through a process known as extrusion cooking with defatted soy flour as raw material. After the soya protein food is extruded from the dies of extruder plant the food is sliced into granules, flakes, chunks, nuggets, goulash, steakettes (schnitzel), etc. by revolving knives, and then is dried in a rotary dryer.

a. Raw Materials: adopts corn flour, fish meal as raw materials

b. Products: This line can be used to produce soya nuggets, TVP/TSP, soya chunks by adjusting the moulds from extruder; meanwhile it can produce cereal, snacks by adjusting the screws from extruder.

c. Capacity: 200kg/h, 500kg/h

d. Flow chart:

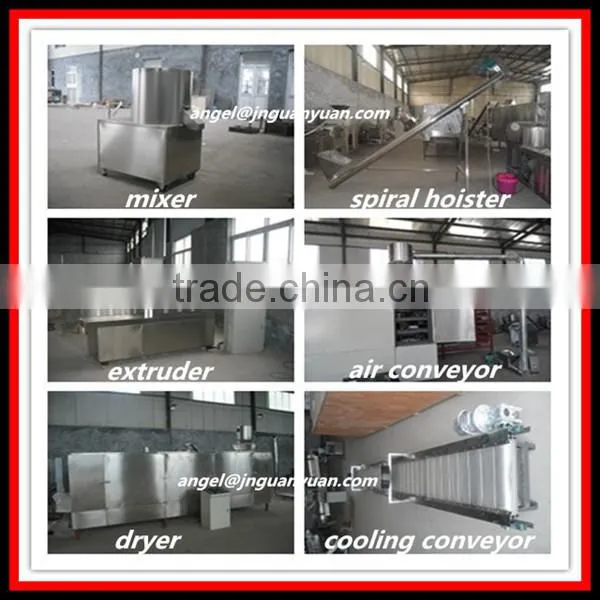

Mixing system---Extrusion system---Drying system---Cooling System----Packing system

e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’Local voltage according to different countries

f. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

g. Technical Parameters:



Model	Input Voltage	Installed Capacity	Power Consumption	Output	Size
GYS65-II	380v/50Hz	80kw	55kw	180-220kg/h	1600x1200x2100mm
GYS85-II	380v/50Hz	125kw	100kw	300-500kg/h	1900x1200x2300mm

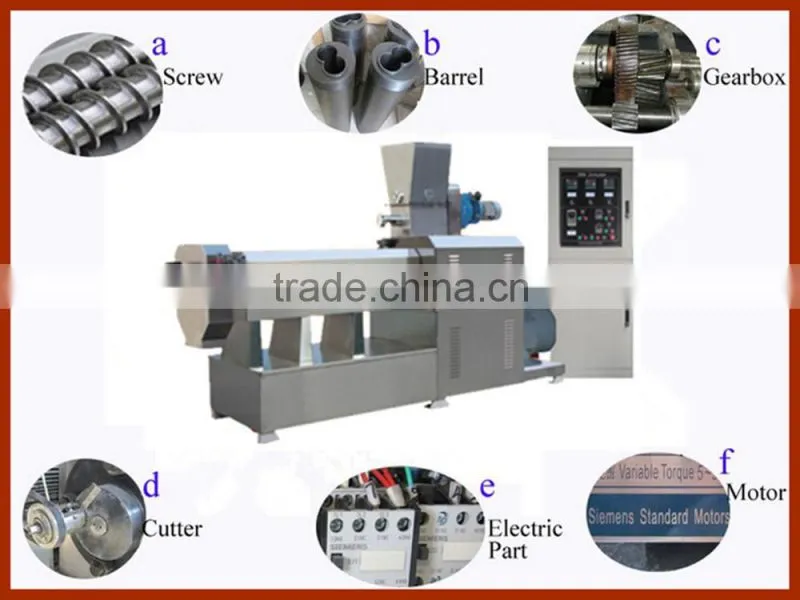

2. Features of Our Twin Screw Extruder:



a. The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.



b. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.



c. The gearbox has automatic lubrication function, with extends gear life.



d. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

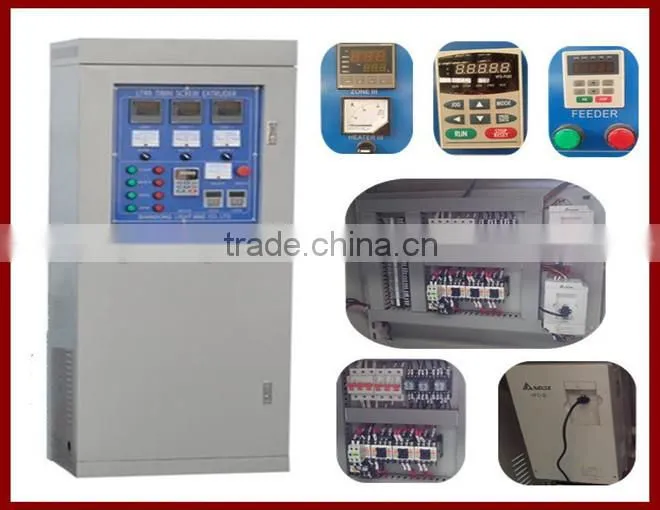

e. SIEMENS(CHINA) brands electronic parts used in the controller box, make sure the extrusion process perfect.



f. Main Motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.

3.Sample Pictures:



Our twin screw extruder can make soya protein food like Ball, Chunks, Flake, Cube, Mince etc with various shapes and colors through changing the dies and formulas



We have full formula of foods and will guide you to use different materials to produce variety quality food.







5.Our Service:

1. Free consultation service before, during, and after sales;

2. Free project planning and design services;

3. Free installation and commissioning of equipment until everything is functional;

4. Free management of equipments' long distance shipping;

5. Free training of equipment maintenance and operating personally;

6. Free new production techniques and formulas;

7. Provide 1 year complete warrantee and life-time maintenance service;

8. Engineers available to service machinery overseas.

9. Provide technical exchanging

10. Provide English Version of Installation/Operation/Service/Maintenance Manual.

6.About US:

We, Jinan Guanyuan Machinery & Equipment Co., LTD., is a professional food machinery manufacturer in China. An exceptional engineering team, personal customer service center and high-quality manufacturing capabilities have evolved exponentially since our humble beginnings in 2010, making us one of the preeminent providers of reliable extrusion equipment world-wide. We can guarantee customers superior quality machines up to design requirements and perfect working state. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.

Our Company has its own manufacturing plants workshops in China, business scope covering mainly machinery and equipment for corn meal milling system, corn flakes & breakfast cereal system, baby food system, corn puff snacks system, pellets system, artificial rice system, soy nuggets system; as well as pet food/fish food system.
Our Company engages in the technical research of extrusion foodstuff, in order to let our clients have superior foodstuffs to sell in the market. We can improve client's equipment and provide related training on new advanced technique. We can also make special designs for special products and materials according to clients' special requirements.









  Q1: what is your company  after-sale service?
       Our service is turn-key mode ,which include installment debugging and train
       Our engineers available to service machine overseas .
       We can free supply the basic formula of raw materials.
Q2: If machines wearable parts need to change, what should we do?
       we can offer the wearable parts all the time ,and offer video
Q3: What is the payment terms if we want to buy the machines?
       L/C  T/T 30% down  payment ,70% balance before delivery
