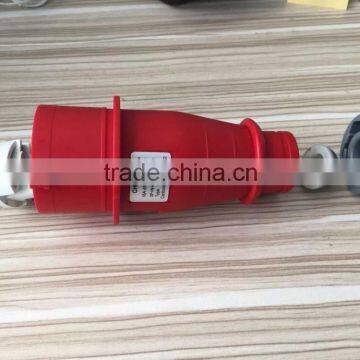

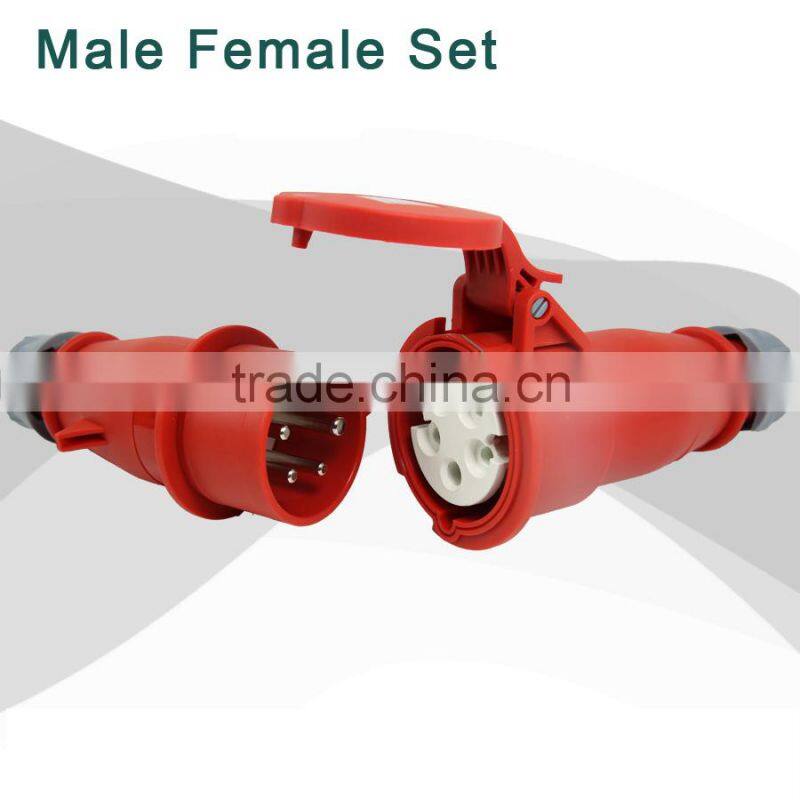

Alibaba Express 4Pin 380V 32 amp Waterproof Plug Industrial Plug Socket
For SENTE:
We can provide different series products of different environment as long as you need.
1.Resistance to bad weather and ageing,
2.Good space stability and accuracy,
3.Good resistance to acid and alkali,
4.Effectively prevent power outages and leakage.
Parameter(mm)
| Size | Amp | 16 | Amp | 16 | Amp | 32 | Amp | 32 | ||
| Poles | 3 4 5 | Poles | 3 4 5 | Poles | 3 4 5 | Poles | 3 4 5 | |||
| a | 140 140 144 | Conductor crosssectional | a | 173 173 173 | Conductor crosssectional | |||||
| b | 116 116 121 | area Min. to Max | b | 144 144 144 | area Min. to Max | |||||
| c | 43.5 49.5 56 | 1.5-2.5 | c | 57 57 63.3 | 4-6 | |||||
| d | 38.5 43.8 50 | d | 51 51 56.5 | |||||||
| e | 17.5 21.5 26.5 | e | 25 25 30.3 | |||||||
| f | 47 52 60 | f | 62 62 68.7 | |||||||
| g | 58 66.7 75 | g | 80.7 80.7 89 | |||||||
| Size | Amp | 63 | Amp | 63 | ||||||
| Poles | 3 4 5 | Poles | 3 4 5 | |||||||
| a | 238.9 238.9 238.9 | Conductor crosssectional | ||||||||
| b | 179.4 179.4 179.4 | area Min. to Max | ||||||||
| c | 66 66 66 | 10-16 | ||||||||
| d | 100.1 100.1 100.1 | |||||||||
| e | 75.5 75.5 75.5 | |||||||||
| f | 36.5 36.5 36.5 | |||||||||
| g | 69.5 69.5 69.5 | |||||||||
Product description
Poles |
2P+E, 3P+E, 3P+N+E |
Rated Voltage |
200-250V,380-415V,240-415V |
Rated Current |
16A, 32A, 63A |
Protect Degree |
IP44 or IP67 |
Certificate |
CE, CCC, CB |
Earth Contact Position |
6h, 9h |
Feature |
Safe,Durable,Timesaving |
Warranty |
2-Year Limited |
IEC/EN Rating |
IEC/EN 60309-2 |
Body Material |
Nylon66 |
Grommet/Gasket |
EPDM Rubber |
External Screws |
Acid-Proof S/S |
Contact Material |
Tinned Copper |
Type:industrial plugs,connectors,sockets,distribution boards
Specifications
1.Conform to:EN/IEC 60309-2
2.Protection degree:IP44
3.Certification: CE, CCC, CB
The industrial plug and socket now is widely used in industrial land,producing deparment,pubilc place and so on.So good quality means safety.Comply with European and internation standards EN/IEC60309-2,and it passes CE Certification,CCC Certification,CB Cerfication.We also have a set of high factory standards.Please be at ease to work.
Shipping Way: By Air & By Sea & By Express (DHL, FedEx, TNT, EMS, etc.)
1. Any question from you are welcome and will be replied in 24 hours
2. The reasonable price
3.Answer your question detailed
4.Solved the problem with you during using our products
5.Samples will be offered to you for our future cooperation.
Q:What is industrial plug and socket?
A:In simple words,industrial socket and plug just is connector to connect two sides for male and female,but it must meet many special environmental condition like low and high temperature,sand and dust,rainfall,fire and other environments. Usually it requires supporting the use of socket and plug.
Q:How can you ensure quality?
A: Our industrial plugs and sockets have pass lots type of test,such as Sand and Dust Test,CTI/PTI Test,Temperature-rise Test,Rainfall Test, Insertion and Retention Force Test,High and Low Temperature Test,Glow Wire Test and the other test.All of these tests can ensure hihg quality.
Q:How is the material of Nylon?
A:Nylon has own advantages.The fatigue strength and regidity is high.The heat resistance and wear resistance is good and it has low friction coefficient.
We can design and make new mold to produce auick connector what with your special requirement.
Our Team,
is a young team full of passion,most of staffs in SENTE’s time have abundant experience.What's more, we are devoted ourselves to exchange integrity for customers’ confirm. According to the different requirements of customers, actively try our best to assist customer to offer professional service, provide reasonable suggestion and guarantee quality on the base of completing the order on time, in addition,we also help customer save the cost.We all believe that only sowing customer satisfaction seeds can have business growth in the near future.
Note:If you have any question or need, pls feel free to conatct me at anytime! And I will try my best to assist you!
