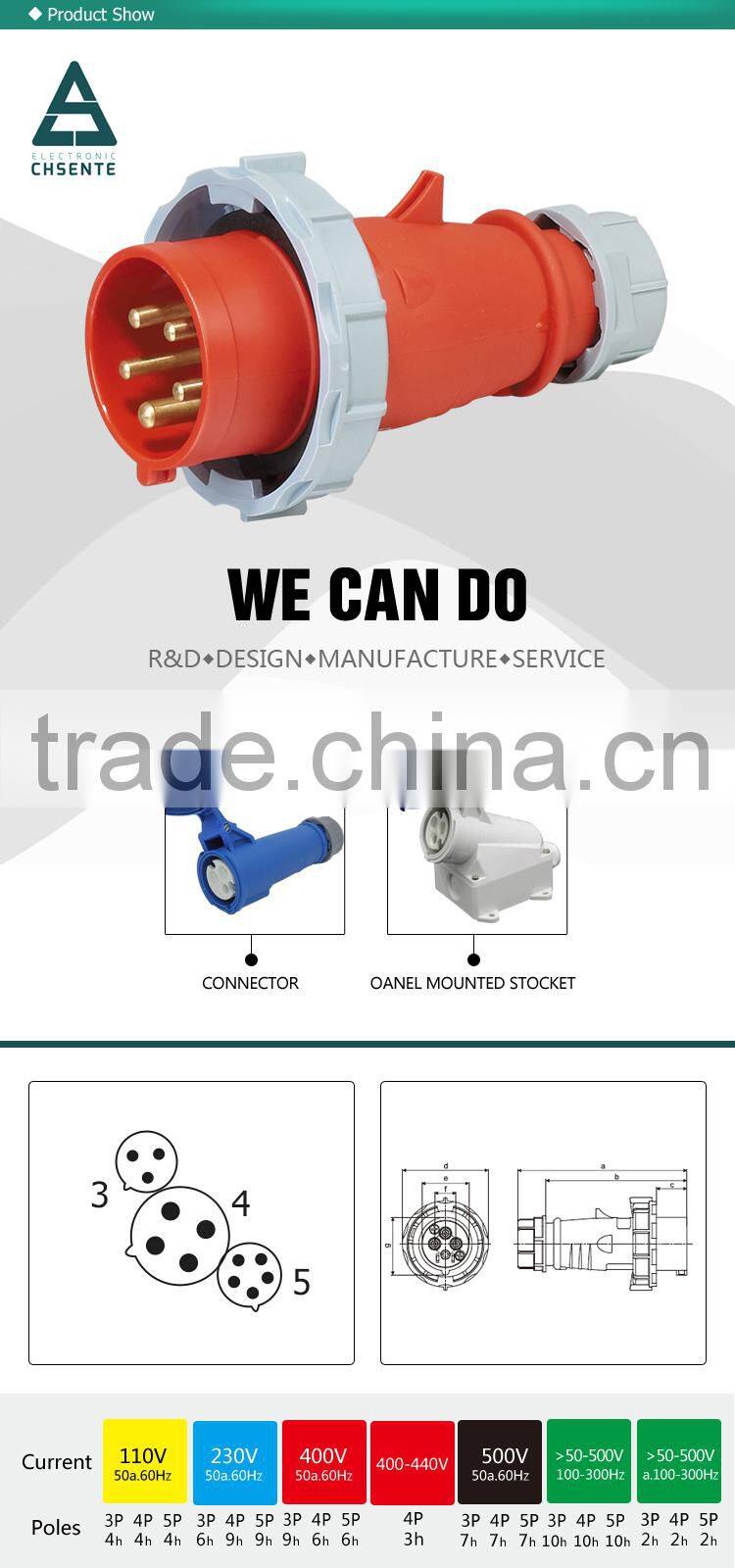

High Current 125 amp 5Pins Single Phase Industrial Plug And Socket
Specifications
single phase industrial plug and socket
1.Conform to:EN/IEC 60309-2
2.Protection degree:IP67
3.Certification: CE, CCC, CB, TUV and GS
The industrial plug and socket now is widely used in industrial land,producing deparment,pubilc place and so on.So good quality means safety.Comply with European and internation standards EN/IEC60309-2,and it passes CE Certification,CCC Certification,ROHS Cerfication.We also have a set of high factory standards.Please be at ease to work.
Product description
High Current 125 amp 5Pins Single Phase Industrial Plug And SocketPoles |
2P+E, 3P+E, 3P+N+E |
Rated Voltage |
110V, 230V, 400V, 500V |
Rated Current |
16A, 32A, 63A, 125A |
Protect Degree |
IP44 or IP67 |
Certificate |
CE, CCC, CB, TUV and GS |
Earth Contact Position |
6h, 9h |
Feature |
Safe,Durable,Timesaving |
Warranty |
2-Year Limited |
IEC Rating |
IEC 60309-1 & 60309-2 |
Body Material |
Nylon6,Nylon66 |
Grommet/Gasket |
EPDM Rubber |
External Screws |
Acid-Proof S/S |
Contact Material |
Brass |
For SENTE:
We can provide different series products of different environment as long as you need.
1.Resistance to bad weather and ageing,
2.Good space stability and accuracy,
3.Good resistance to acid and alkali,
4.Effectively prevent power outages and leakage.
Model
| 16 | 3 | ST277 | ST278 | ST279 | ||||
| 4 | ST280 | ST281 | ST282 | ST283 | ST284 | ST285 | ||
| 5 | ST286 | ST287 | ST288 | |||||
| 32 | 3 | ST289 | ST290 | ST291 | ||||
| 4 | ST292 | ST293 | ST294 | ST2175 | ST295 | ST296 | ST297 | |
| 5 | ST298 | ST299 | ST300 | |||||
| 63 | 3 | ST1570 | ST1571 | ST1572 | ||||
| 4 | ST1108 | ST11109 | ST1110 | ST1111 | ||||
| 5 | ST1112 | ST1113 | ST1114 | ST2958 | ||||
| 125 | 3 | ST3399 | ST3400 | |||||
| 4 | ST1441 | ST1442 | ST1443 | ST1444 | ||||
| 5 | ST1445 | ST1446 | ST1447 | ST3173 |
Parameter(mm)
| Size | Amp | 16 | Amp | 16 | Amp | 32 | Amp | 32 | ||
| Poles | 3 4 5 | Poles | 3 4 5 | Poles | 3 4 5 | Poles | 3 4 5 | |||
| a | 138 144 144 | Conductor crosssectional | a | 170 170 177 | Conductor crosssectional | |||||
| b | 115 120.5 120.5 | area Min. to Max | b | 141 141 148 | area Min. to Max | |||||
| c | 24.7 25.2 25.2 | 1.5-2.5 | c | 32.5 32.5 32.5 | 4-6 | |||||
| d | 70.2 78 87 | d | 93.3 93.3 101 | |||||||
| e | 38.3 43.8 50.2 | e | 51 51 56.5 | |||||||
| f | 17.5 21.5 26.5 | f | 25 25 30.3 | |||||||
| g | 47 52.2 60 | g | 62.2 62.2 68.7 | |||||||
| Size | Amp | 63 | Amp | 63 | Amp | 125 | Amp | 125 | ||
| Poles | 3 4 5 | Poles | 3 4 5 | Poles | 3 4 5 | Poles | 3 4 5 | |||
| a | 238.9 238.9 238.9 | Conductor crosssectional | a | 286 286 286 | Conductor crosssectional | |||||
| b | 179.5 179.5 179.5 | area Min. to Max | b | 219 219 219 | area Min. to Max | |||||
| c | 51.1 51.1 51.1 | 10-16 | c | 57 57 63.3 | 25-35 | |||||
| d | 69.5 69.5 69.5 | d | 81.1 81.1 81.1 | |||||||
| e | 113 113 113 | e | 131.5131.5 131.5 | |||||||
| f | 75.5 75.5 75.5 | f | 83.3 83.3 83.3 | |||||||
| g | 36.5 36.5 36.5 | g | 42.5 42.5 42.5 | |||||||
Type:industrial plugs,connectors,sockets,distribution boards
Shipping Way: By Air & By Sea & By Express (DHL, FedEx, TNT, EMS, etc.)
1. Any question from you are welcome and will be replied in 24 hours
2. The reasonable price
3.Answer your question detailed
4.Solved the problem with you during using our products
5.Samples will be offered to you for our future cooperation.
Q:What is industrial plug and socket?
A:In simple words,industrial socket and plug just is connector to connect two sides for male and female,but it must meet many special environmental condition like low and high temperature,sand and dust,rainfall,fire and other environments. Usually it requires supporting the use of socket and plug.
Q:How can you ensure quality?
A: Our industrial plugs and sockets have pass lots type of test,such as Sand and Dust Test,CTI/PTI Test,Temperature-rise Test,Rainfall Test, Insertion and Retention Force Test,High and Low Temperature Test,Glow Wire Test and the other test.All of these tests can ensure hihg quality.
Q:How is the material of Nylon?
A:Nylon has own advantages.The fatigue strength and regidity is high.The heat resistance and wear resistance is good and it has low friction coefficient.
We can design and make new mold to produce auick connector what with your special requirement.
Our Team,
is a young team full of passion,most of staffs in SENTE’s time have abundant experience.What's more, we are devoted ourselves to exchange integrity for customers’ confirm. According to the different requirements of customers, actively try our best to assist customer to offer professional service, provide reasonable suggestion and guarantee quality on the base of completing the order on time, in addition,we also help customer save the cost.We all believe that only sowing customer satisfaction seeds can have business growth in the near future.
Note:If you have any question or need, pls feel free to conatct me at anytime! And I will try my best to assist you!
