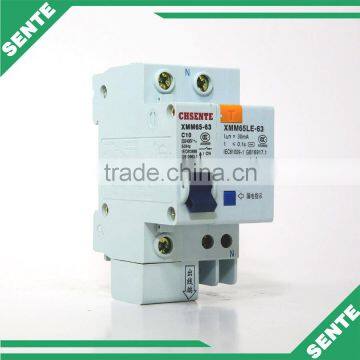

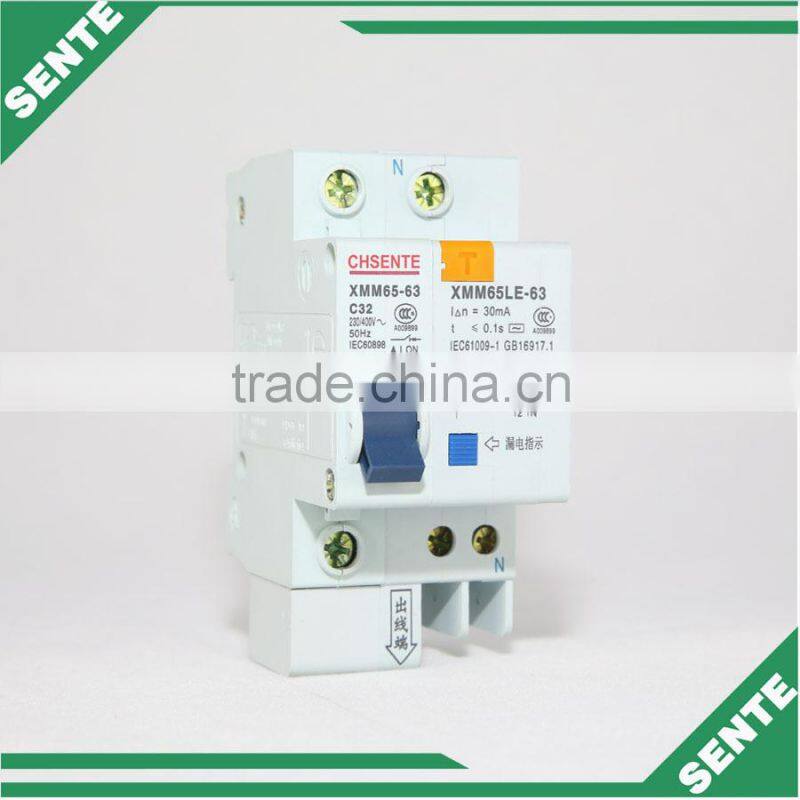

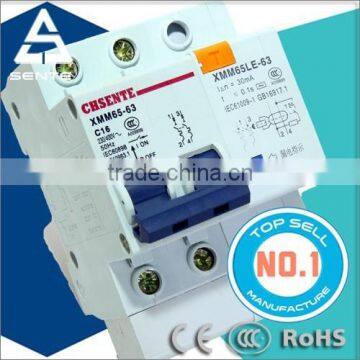

Help CenterXMM65LE(C45LE) Residual Current Circuit Breaker With Overcurrent Protection(RCBO,RCCB,RCD)
Related Products
-
XMML1-63 2 Pole Earth Leakage Circuit Breaker 1-63AUS$ 1 - 10MOQ: 100 Pieces -
XMML2-63 b c d Curve Residual Current Circuit Breaker 16-100A 2P/4PUS$ 1 - 10MOQ: 100 Pieces
-
4 Pole Earth Leakage Circuit BreakerUS$ 1 - 10MOQ: 100 Pieces
-
RcboUS$ 1 - 10MOQ: 100 Pieces
-
2013 New Design Intelligent High Breaking Capacity Moulded Case Circuit Breaker MCCBUS$ 10 - 200MOQ: 1 Piece
1. Company Profile

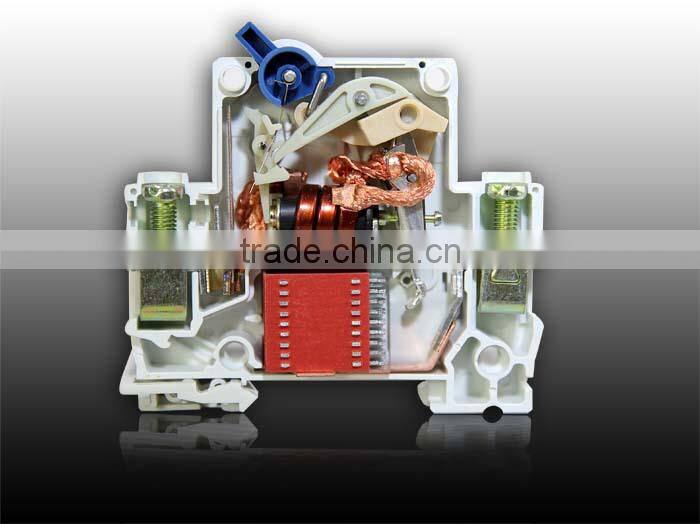

XMM65LE(C45LE) residual current circuit breaker is applicable to industrial area,commerical area,tall building and civil house.When thereis human electricity shock or if the leakage current of the line exceeds the prescribed value,it will cut off the power rapidly to protect human safety and prevent the accident duo to the current leakage.
Electrical Features |
Standard |
|
IEC/EN60898-1 |
Rated Current In |
A |
16 25 40 63 |
|
Poles |
|
1P 2P 3P 4P |
|
Rated Voltage Ue |
V |
230/400 |
|
Insulation Voltage Ui |
V |
500 |
|
Rated Frequency |
Hz |
50/60HZ |
|
Rated Breaking Capacity |
A |
10000 |
|
Rated Impulse Withstand Voltage(1.2/50)Uimp |
V |
6000 |
|
Dielectric Test Voltage At And Ind. Freq For 1 Min |
Kv |
2 |
|
Pollution Degree |
|
2 |
|
Themo-Magnetic Release Characteristic |
|
B C D |
|
Mechanical Features |
Electrical Life |
|
8000 |
Mechanical Life |
|
20000 |
|
Contact Position Indicator |
|
Yes |
|
Protection Degree |
|
IP20 |
|
Reference Temperature Of Setting Of Thermal Element |
°C |
30 |
|
Ambient Temperature(With Daily Average ≤35°C) |
°C |
-5~+40 |
|
Storage Temperature |
°C |
-25…+70 |
|
Combination with accessories |
Terminal Connection Type |
|
Cable/u-type busbar/pin-type busbar |
Terminal Size Top/Bottom For Cable |
Mm² Awg |
25 18-3 |
|
Terminal Size Top/Bottom For Busbar |
Mm² Awg |
25 18-3 |
|
Tightening Torque |
N*M IN-IBS |
2.5 22 |
|
Mounting |
|
On Din Rail Fn60715(35mm) By Means Of Fast Clip Device |
|
Connection |
|
From Top |

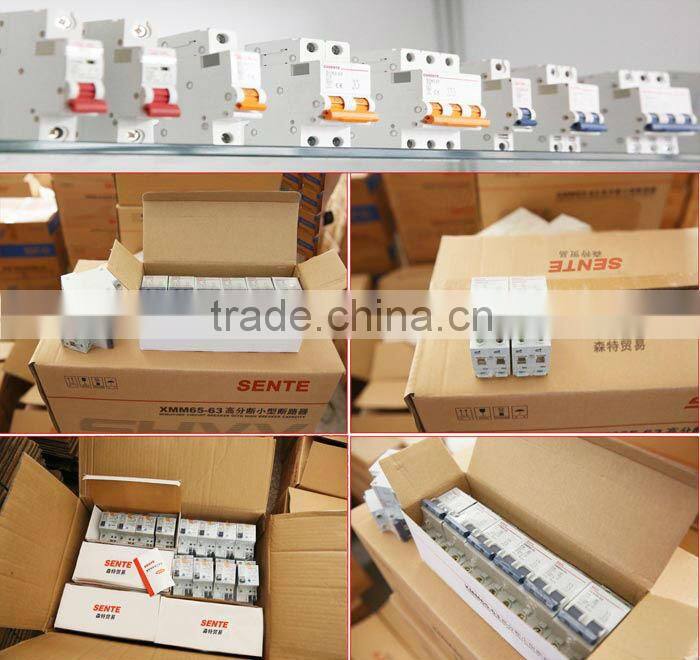

4. Package and Others
Carton

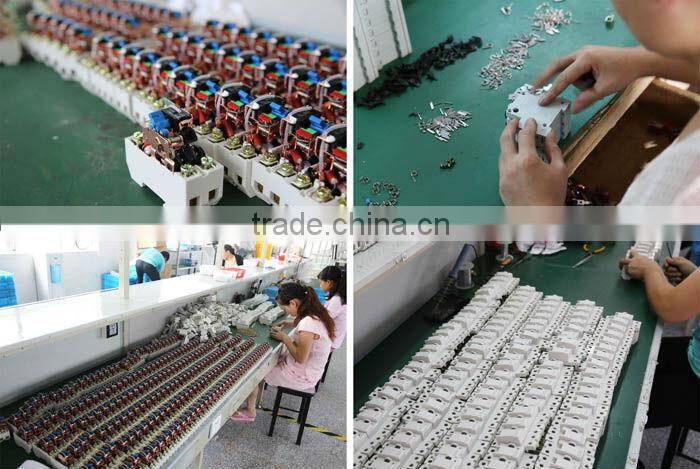

Production line

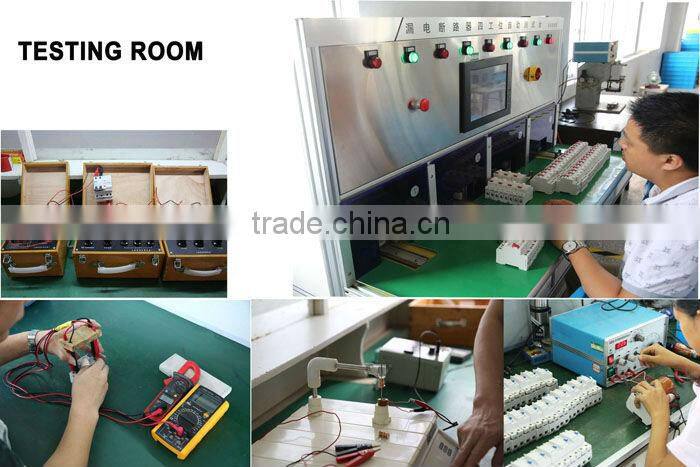

Testing room

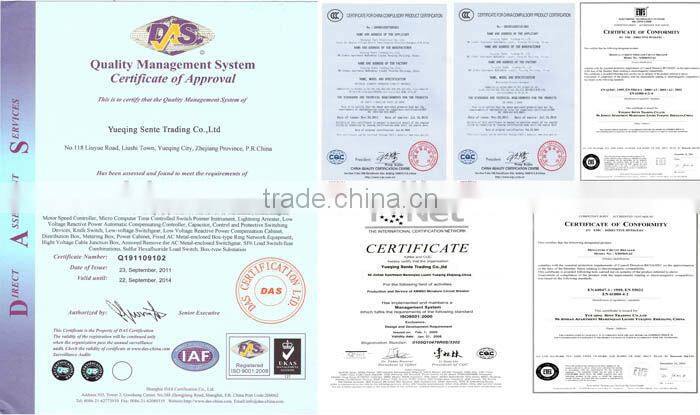

Certification
residual circuit breaker
