Help CenterXMM65-63 AC and A Type Residual Current Circuit Breaker RCCB,RCD
Related Products
-
XMM65-63 RCCB/RCD/residual Current Circuit BreakerUS$ 1 - 10MOQ: 100 Pieces -
XMM65-63 3p C25 OEM Service Residual Current Circuit Breaker RCCBUS$ 1 - 10MOQ: 100 Pieces
-
XMM65-63(C45) Electric Mcb SizeUS$ 1 - 10MOQ: 100 Pieces
-
DZ30-32 Type MCB Good dc Mcb BreakerUS$ 1 - 10MOQ: 100 Pieces
-
DZ30-32 DC MCB SAA 6KA From 1 - 63AUS$ 1 - 10MOQ: 100 Pieces
Specifications
1.Standard:IEC/EN60898-12.Mounting:On Din Rail Fn60715(35mm)
3. Connection: From Top And Bottom
1. Company Profile
YUEQING SENTE TRADING CO.,LTD,our company has perfect quality system which has passed the ISO9001 quality system., carrying out currently national standard and international Electro Technical Commission ‘IEC521’ standards strictly. We trust that best quality and hich-tech will bring us to win-win.
Electrical Features |
Standard |
|
IEC/EN60898-1 |
Rated Current In |
A |
16 25 40 63 |
|
Poles |
|
1P 2P 3P 4P |
|
Rated Voltage Ue |
V |
230/400 |
|
Insulation Voltage Ui |
V |
500 |
|
Rated Frequency |
Hz |
50/60HZ |
|
Rated Breaking Capacity |
A |
10000 |
|
Rated Impulse Withstand Voltage(1.2/50)Uimp |
V |
6000 |
|
Dielectric Test Voltage At And Ind. Freq For 1 Min |
Kv |
2 |
|
Pollution Degree |
|
2 |
|

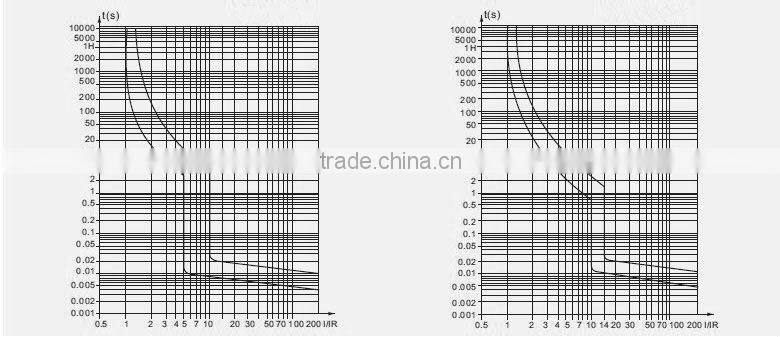

Themo-Magnetic Release Characteristic |
|
B C D |
|
Mechanical Features |
Electrical Life |
|
8000 |
Mechanical Life |
|
20000 |
|
Contact Position Indicator |
|
Yes |
|
Protection Degree |
|
IP20 |
|
Reference Temperature Of Setting Of Thermal Element |
°C |
30 |
|
Ambient Temperature(With Daily Average ≤35°C) |
°C |
-5~+40 |
|
Storage Temperature |
°C |
-25…+70 |
|
Combination with accessories |
Terminal Connection Type |
|
Cable/u-type busbar/pin-type busbar |
Terminal Size Top/Bottom For Cable |
Mm² Awg |
25 18-3 |
|
Terminal Size Top/Bottom For Busbar |
Mm² Awg |
25 18-3 |
|
Tightening Torque |
N*M IN-IBS |
2.5 22 |
|
Mounting |
|
On Din Rail Fn60715(35mm) By Means Of Fast Clip Device |
|
Connection |
|
From Top |
3. Details
Production line
Testing room
Certification
