IECEx&ATEX Certified Full Plastic Explosion-proof Terminal Boxes

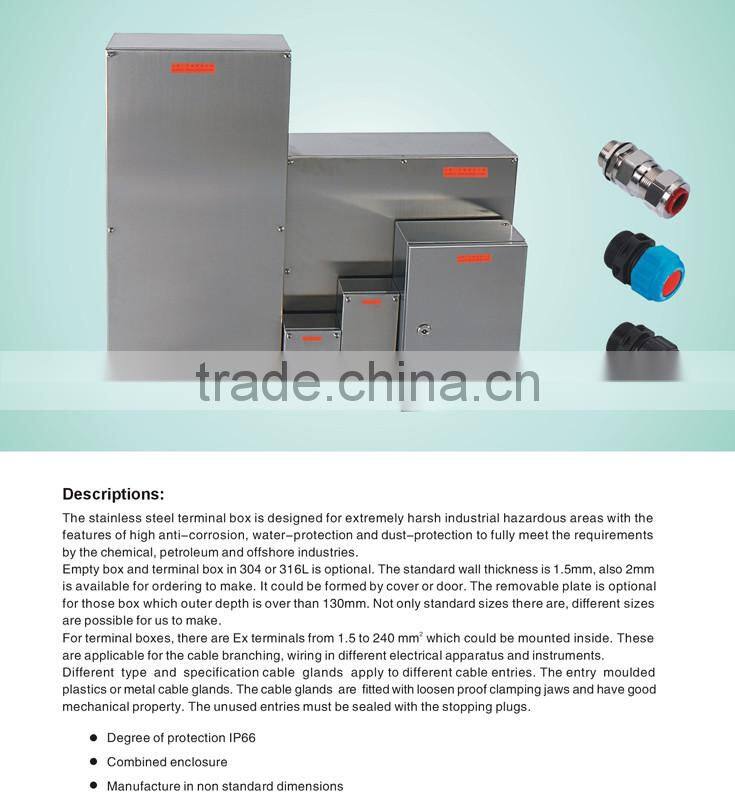

Description:
Specification and Features:
Main Technical Data:
| Ex mark | Ex e IIC T4/T5/T6 Gb DIP A21 TA T4/T5/T6 |
| Intended use | Can be used in zone 0, zone 1, zone 2, zone 20 zone 21 and zone 22 |
| Degree of protection | IP66 |
| Rated voltage | max 1100V |
| Rated current | max 400A |
| Ambient temperature use | -40 ℃ to +40 ℃ /55 ℃ |
| Shock resistance | 7J(Nm) |
| Earthing | M6 |
| Box internal installation structure forms | Rail bracket install and brass mounting plate install |
| Box open structure forms | Open cover type and open door type |
| Remove plate | 3mm detachable removal plate |
| Material thickness | Standard 1.5mm(Other customized) |
| Material enclosure | 304/316L/Carbon steel |
Order Specification:

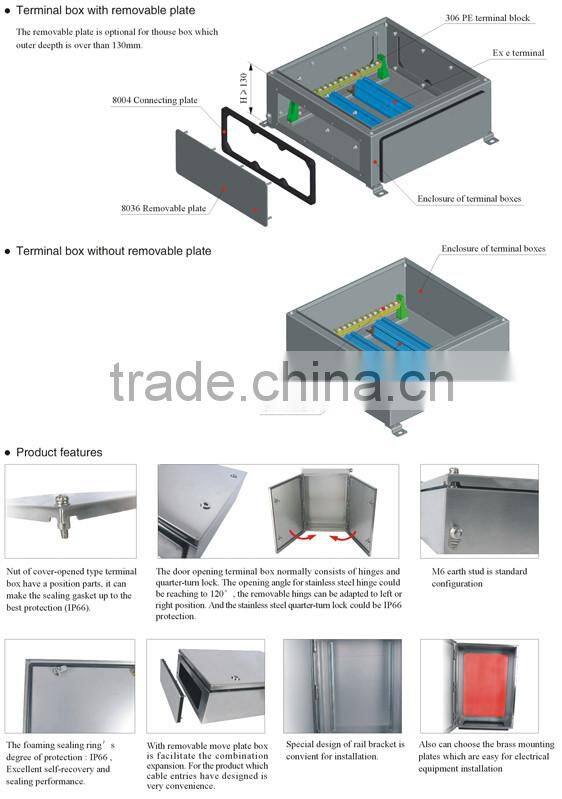

Optional Removable Plate:
Outline dimensions:
Specification of Cover-Open box:
Specification of Door-Open box:


Company information:
Factory Show:
