Electric Hot Water Boiler With ASME ,ISO Certification

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Once Through
Usage	Industrial	Pressure	High Pressure
Style	Vertical	Place of Origin	Jiangsu, China
Brand Name	WILFORD	Model Number	CLDR
Output	Hot Water	Certification	ASME,ISO,SGS
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Electric Hot Water Boiler with ASME
1.Full automatic
2.Long life time
3.Hot water is clean and sanitary
4.ASME

Electric Hot Water Boiler with ASME ,ISO Certification

The Hot Water Boiler

The Details of Hot Water Boiler

The Technical Parameter

Type	Unit	CLDR0.06-0.7-95/70	CLDR0.12-0.7-95/70	CLDR0.17-0.7-95/70	CLDR0.23-0.7-95/70	CLDR0.35-0.7-95/70	CLDR0.47-0.7-95/70	CLDR0.53-0.7-95/70	CLDR0.7-0.7-95/70
Rated working pressure	Mpa	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Rated outlet water temperature	℃	120	120	120	120	120	120	120	120
Input power	KW	60	120	180	240	360	480	600	720
Input current	A	90	180	270	360	540	720	900	1080
Rated voltage	V	3N AC 50Hz 380V
outlet water pipe diameter	DN	40	50	50	50	65	80	80	100
recyle water pipe diameter	DN	40	50	50	50	65	80	80	100
inlet water pipe diameter	DN	15	15	15	15	25	25	25	25
drain valve diameter	DN	25	25	25	25	25	25	25	25
Overall size:L	mm	850	1050	1150	1280	1580	1680	1780	1960
W	mm	800	950	950	1150	1350	1500	1600	1700
H	mm	1680	1900	2050	2100	2600	2950	3000	3200
Boiler control cabinet size:A	mm	-	-	-	-	1200	1200	1200	1500
B	mm	-	-	-	-	500	500	500	600
C	mm	-	-	-	-	1800	1800	1800	2000
Weight	kg	210	400	530	740	1080	1380	1480	1770

The main superiorities

1. Safe and reliable:with double singal control of pressure and temperature;

2. Full automatic:advanced touch screen controller,digital prosecution system;

3. High efficiency,reliable operation:with series protection measures;

4. Stylish appearance:perfect design,colorful,elegant.

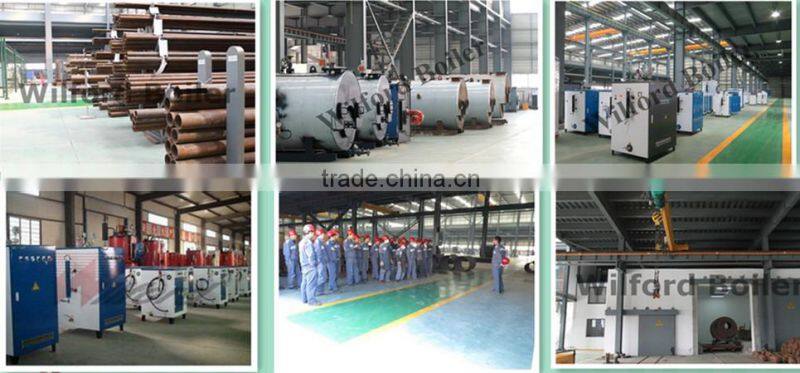

About our workplace

Our factory eatablished in 1998, is specialized in the production of oil,gas, electric heating steam boilers,hot water boilers, biomass-fired boiler .

The certificates

1.China High-tech Enterprise
2.Class B Boiler Manufacturing
3.ASME
4.IS9000:2008

The customers
