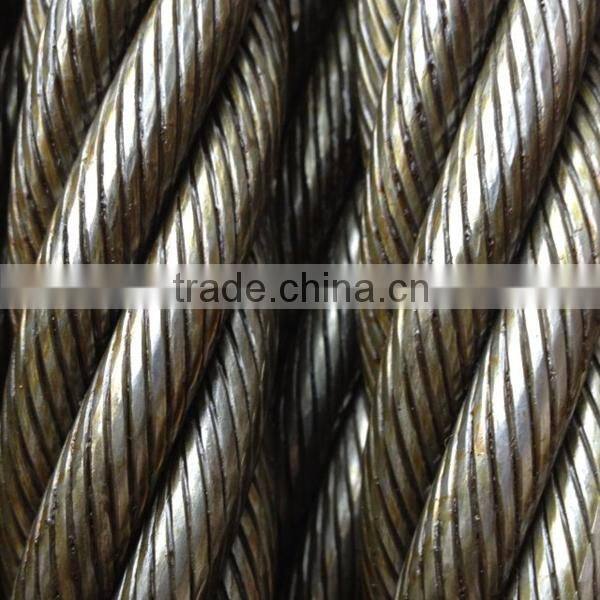

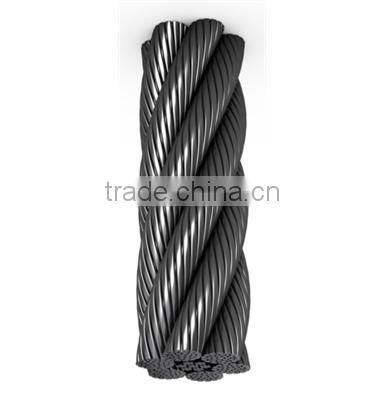

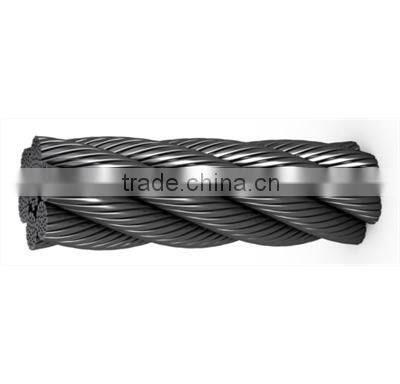

Wire Rope With Compacted Strand 6xK36WS+IWRC WARRINGTON SEALE

Specifications

Wire Rope With Compacted Strand 6xK36WS+IWRC WARRINGTON SEALE

1). Type :   Wire Rope With Compacted Strand 6xK36WS+IWRC WARRINGTON SEALE
2). Grade : Carbon steel 70#, 72#, 60#, 45#
3). Standard : AISI, ASTM, GB, DIN, JIS
4). Surface : Ungalvanized / Galvanized
5). Diameter : 28 mm
6). Construction : 6xK36WS+IWRC
7). Core : IWRC
8). Length : 500m/reel, 1000m/reel, 1500m/reel, 2000m/reel etc
9). Packing : Wrapped with plywood reel then put on pallets
10). Payment Term : T/T or L/C etc
11). Loading Port : Shanghai China
12). Delivery Term : EXW, FOB, CFR, CIF
13). Quality Assurance : Mill Test Certificate is supplied with shipment, ISO, SGS
14). MOQ : 1 ton
15). Delivery Time : Within 10 days after receiving deposit
16). Certification : ISO, SGS etc
18). Lay : RHOL, RHLL. LHOL. LHLL
19). Nominal Tensile Strength(Mpa) : 1570, 1670, 1770, 1870, 1960Mpa

IWRC Independent Wire Rope Core belongs Steel Core, the Steel Core Rope has a big breaking force, and a good resistance to impact, high temperature and extrusion.

Compacted Strand has been subject to a compacting process such as drawing rolling or swageing where by the metalic cross-sectional area of the wires remains unaltered whereas the shape of the wires and the dimension of the strands are modified.

COMPACTED STRAND ROPE, the wires in the strand are in the facial contact state, The metal block-coefficient of the wire rope is big, and the structure of the strand is tight. When the wire rope is being used, it does not have quadratic bending stress between the wires of every year, and has small contact stress. So the COMPACTED ROPE has good antifriction, anti-extruction and anti-fatigue characteristic, and it is not easily distortion.

ISO 9001: 2008, SGS Registered as a manufacture of stainless steel wire rope.
Officer supplier of Chinese National High Speed Train(CRH train), National Grid.
Stainless Steel Wire Rope Supplier of the Nest in 2008 Beijing Olympic Games

Application:

Tianli supply a large range of compacted strand ropes in both galvanised and ungalvanised finish with either ordinary or langs lay.
