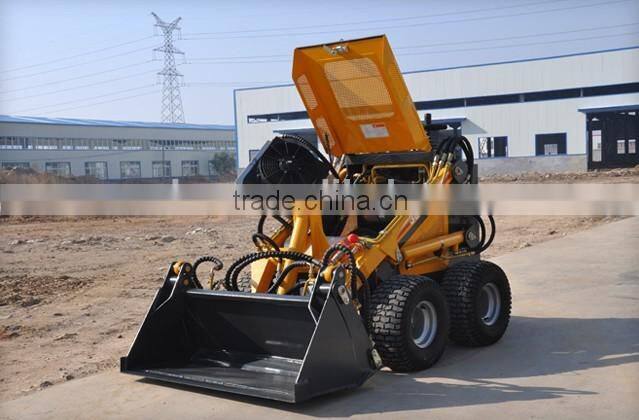

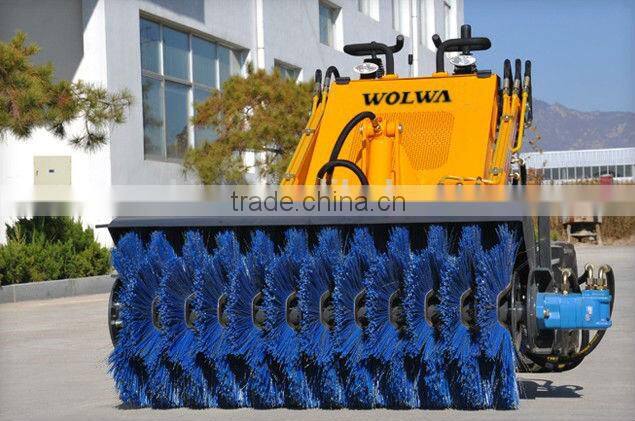

China Mini Wheeled Skid Steer Loader GN380

Name: China Mini Wheeled Skid Steer Loader GN380
Brand: WOLWA
SKU: 111846123
Availability: InStock

Wolwa Group Co., Ltd.

US$ 1 - 9,600 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

WOLWA

Model Number:

GN380

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name WOLWA

Model Number GN380

Place of Origin Shandong, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 3466x800x2000

Rated Load 200 Kg

Certification ISO

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

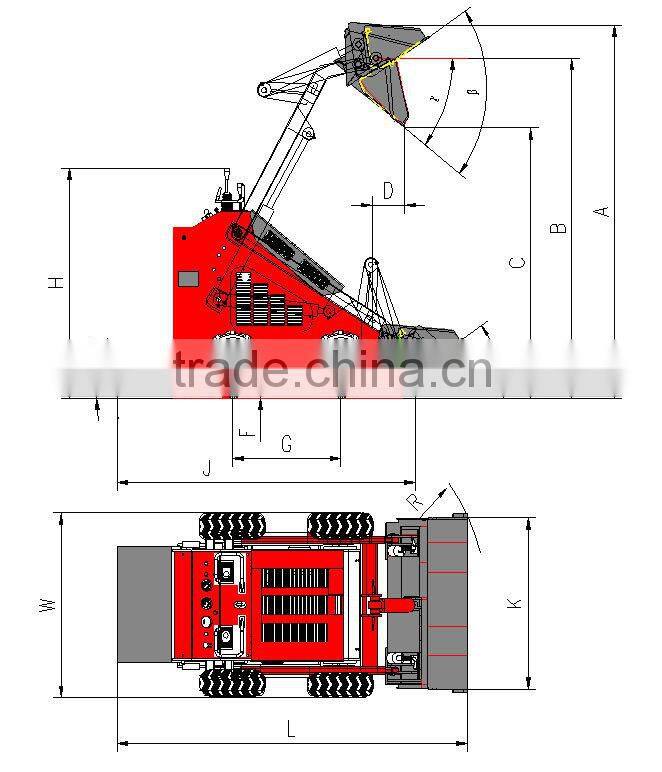

GN380 200kg load electric skid steer loader with good quality Dimensions:

Item	With Chevron Engineering Tyre
Max working height H1	2143mm	84.37inch
Max dump height H2	1488mm	58.58inch
Total Height H	1233mm	48.54inch
Max pin height	1884mm	74.17inch
The length of the foot plate	678 mm	26.7inch(foot plate level)
Total length with bucket L ( mm)	2206mm	86.9inch
Highest point dump distance L1(mm)	348mm	13.7inch
Length without bucket L2(mm)	1752mm	69inch
Bucket width B(mm)	980mm	38.6inch
Total width B1(mm)	1160mm	45.67nch
Wheel base	940mm	37inch
Ground clearance(mm)	118mm	4.65inch
Turning radius R(mm)	1307 mm	51.5inch
Bucket dumping angle α(°)	30
Rollback of bucket on ground β(°)	25
Departure angle(°)	11(foot plate level)

Parameter:

Item		Item
Engin	Rated power(KW)	15.4KW(21HP)
	Rated speed(rpm)	3300
Noise (Db)		95
Hydraulic system	Hydraulic pressure(Mpa)	17
	Cycle time(s)	Raise		Dump	lower
		4.27		1.34	3.31
Technical Parameter	Operating Load	200 Kg	441lb
	Bucket Capacity	0.15 m3	5.33(ft 3)
	Max Lifting Force	375 Kg	827lb
	Travel Speed	0-5.5Km/h	0-3.4mile/h
	Operating Weight	890 Kg	1958lb(With Chevron Engineering Tyre )
Tires		18*6.5-8
