products specification:
Dongfeng Cummins 6BT5.9-C130 engine, higher power;
Hydrodynamic transmission, three-element and single stage torque converter, high reliability, easy maintenance;
Xuzhou Liangyu 3D90EC powershift transmission, 3 forward and 3 reverse speeds, much more reasonable for working;
Electric-pneumatic-hydraulic shift technology, flexible operation and higher reliability;
Single lever pilot control system, comfortable and flexible operation;
Double sealed hydraulic pipeline joints with 24° awl and O ring of international standard, avoided oil leakage obviously;
Fully hydraulic steering system, flexible operation and higher reliability;
Air over hydraulic disk brake system;
Working device with automatically leveling ability at high position;
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability;
Integral, luxury instrument board;
New, luxury cabin
.
Item | Specifications | Item | Specifications |
Bucket capacity | 1.7 m3 | Rated power | 92kW/2200rpm |
Rated load | 3000kg | Tyre | 17.5-25 |
Dumping height | 3050mm | Overall dimensions | 6990 x2420 x3000mm |
Max. breakout force | 120kN | Operating weight | 9800kg |
Max. drawing force | 90kN |
Optional: Dongfeng Cummins 6BT5.9-C130 engine; Quick hitch & attachments; Joystick control.

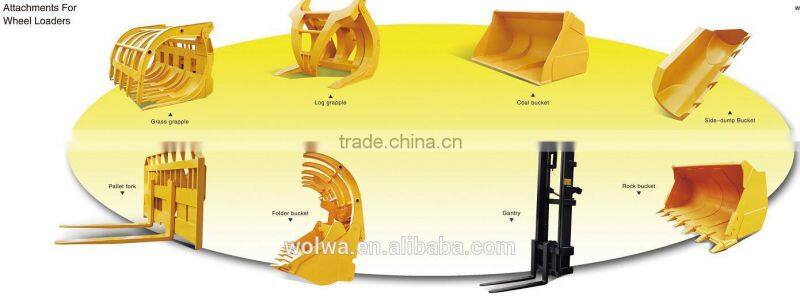

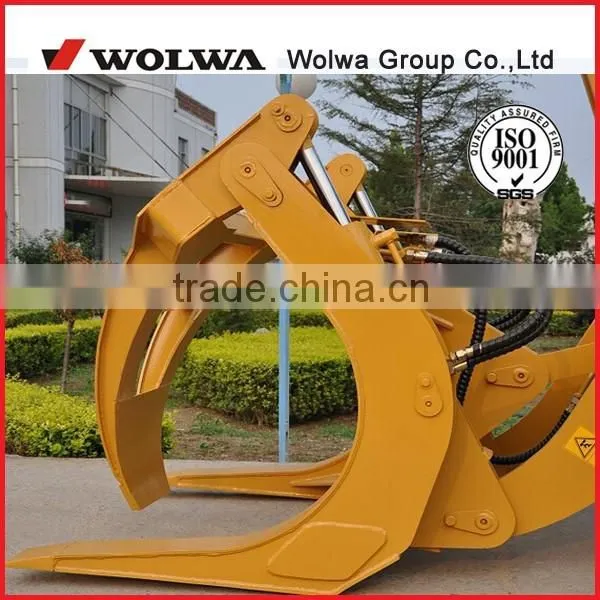

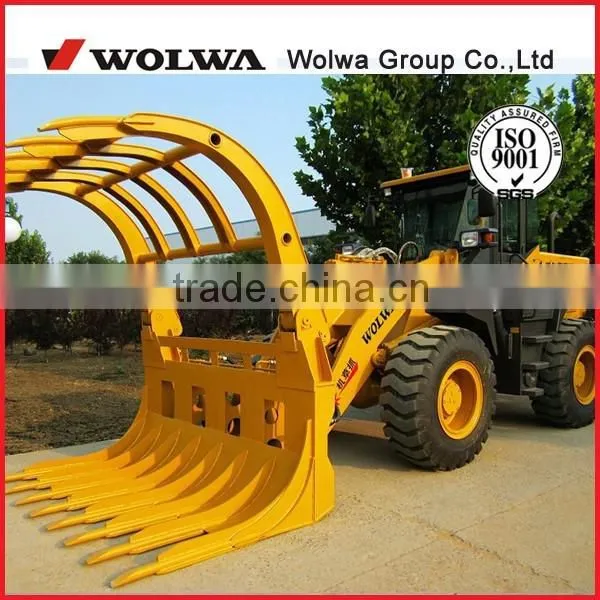

optional attachments

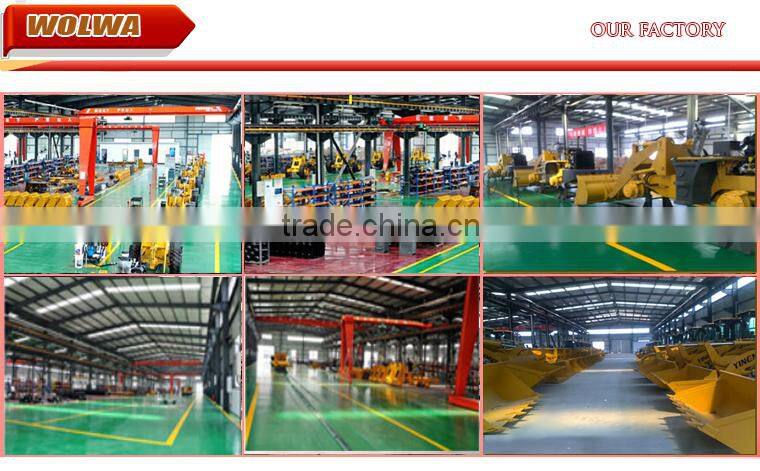

Factory show:
