Specifications
1. best quality round biscuit machine2.stainless steel
3.easy to operate
4.one year guarantee
MachineDescription:
Guanyuan automatic biscuit production line, with original design, compact structure and highly automatic, has developed on the base of absorbing Japanese technology. All working procedures that from dough feeding, sheeting, molding, waste recycling, baking to cooling, can be completed automatically in one line. Hundreds of moulds and dozens of technology recipes make it possible to produce all kinds of popular biscuits, such as cream biscuit, layer biscuit, soda cracker, calcium biscuit, multi-vitamin biscuit, vegetable biscuit, etc.
Working Process:
Dough making → Biscuit forming → Baking → Oil sprayer → Cooling → Stacking→ Packing
Capacity optional: (Price of this line depends on the capacity)
100/200/300/500/800 kg/hr
Final Products:
cream biscuit, layer biscuit, soda cracker, calcium biscuit, multi-vitamin biscuit, vegetable biscuit, etc.
Technical Parameter
| Mode | Input Voltage | Power | Output | Weight | Dimension |
| GYB225 | 380V/50HZ | 28.5KW | 50KG/H | 1500KG | 18*06*1.5M |
| GYB280 | 380V/50HZ | 56KW | 100KG/H | 2500KG | 26*0.8*1.5M |
| GYB400 | 380V/50HZ | 120KW | 200KG/H | 4000KG | 45*1*1.5M |
| GYB60 | 380V/50HZ | 200KW | 400KG/H | 10000KG | 70*1.2*1.75M |
| GYB1000 | 380V/50HZ | 300KW | 800KG/H | 15000KG | 100*1.85*2.45M |
Configuration for a biscuit production line:

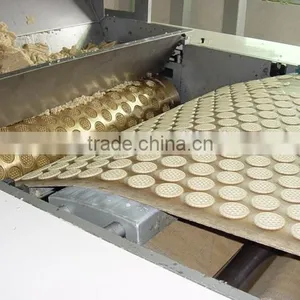

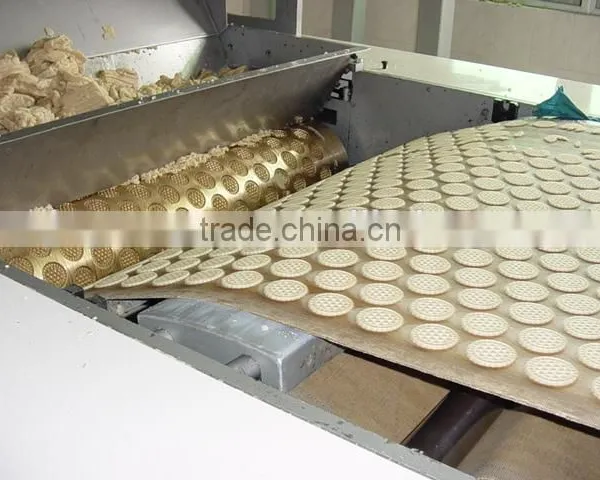

1. Flour mixer — 2. Roll cut biscuit forming machine — 3.Roll print biscuit forming machine — 4.Tunnel oven — 5.180degree Turning machine — 6.Oil spraying machine — 7.Cooling line — 8.Biscuit stacking machine — 9.Biscuit sandwich machine — 10.Biscuit packing machine

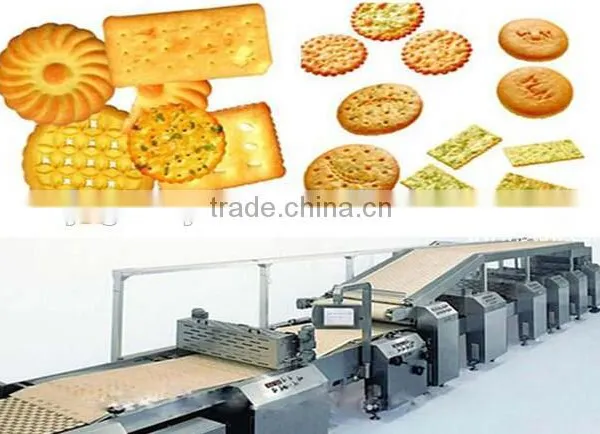

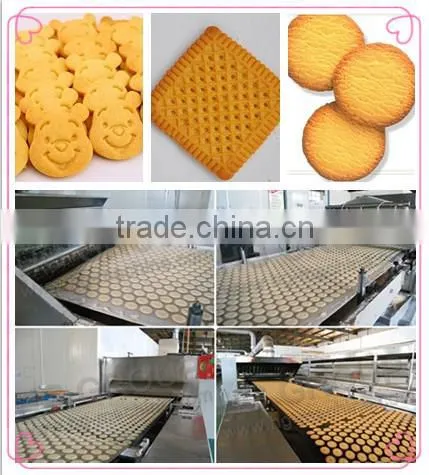

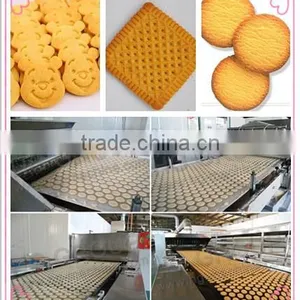

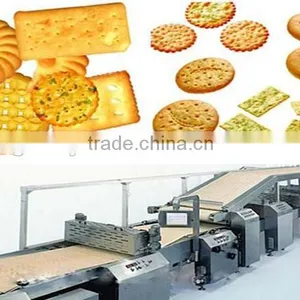

Finished products samples
Our company and our machines
Package
Our certifications
(1) Before-sales service
Our sales team would offer our earnest service to every customer:
A. Workshop project
B. Technical formula
C. Prospect and cost analysis
D. Shipment service
(2) After sales service
Guanyuan group reflect their value through service. Below service we would provide to every customer after sales:
A. Installation: including Global re-installation, Intimate maintainance , Debugging.
B. Training program
C. Spare parts update
For more questions, welcome to contact with me
Mob:0086-15098981259 Tel:0086-531-68829287
FAX:0086-21-68829387
