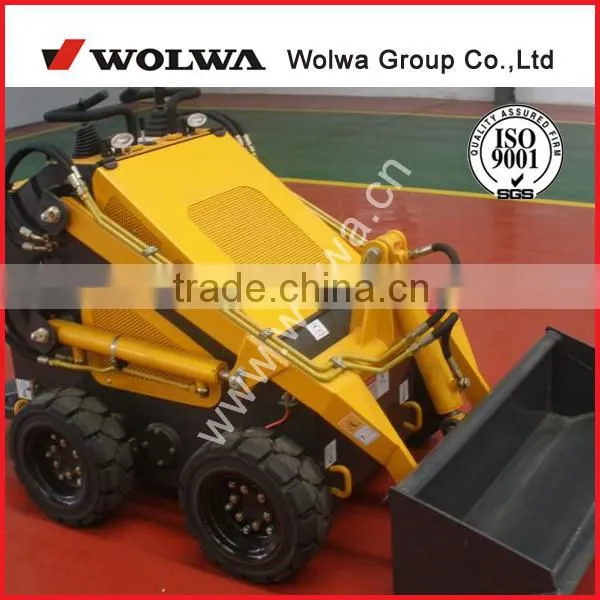

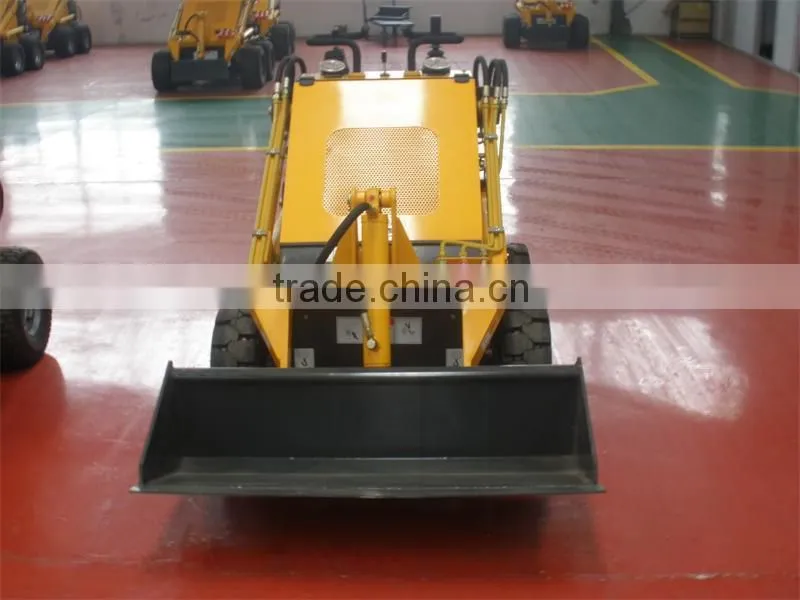

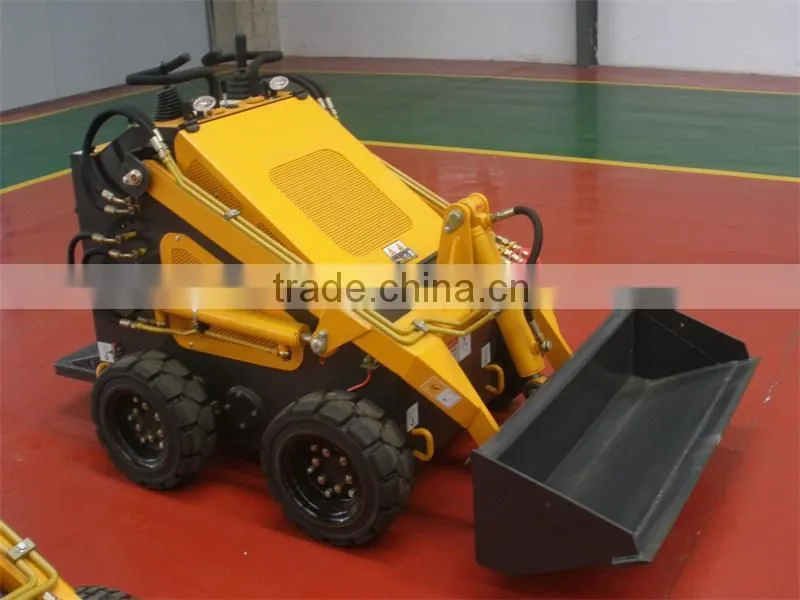

Small Garden Loader 200kg Capacity Wheel Loader GN380
US$ 2,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Wolwa
Model Number:
GN380
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Loader 200kg Capacity Wheel Moving Type GN380US$ 2,000 - 10,000MOQ: 1 Set -
Customer Highly Praised Factory 8T Wheel Sugarcane LoarderUS$ 10,000 - 100,000MOQ: 1 Set
-
0.3CBM Bucket Crawler Skid Steer Loader Pilot Control GNLC50US$ 10,000 - 30,000MOQ: 1 Set
-
Mini Crawler Skid Steer Loader With 600kg Capacity GNLC50US$ 10,000 - 30,000MOQ: 1 Set
-
Small Track Skid Steer Loader With 600kg Capacity GNLC50US$ 10,000 - 30,000MOQ: 1 Set
Condition
New
Brand Name
Wolwa
Model Number
GN380
Place of Origin
Shandong, China
Type
Skid Steer Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
2206*1160*1233mm
Rated Load
200kg
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
small garden loader 200kg capacity wheel loader GN380
Small loader GN380 is a mechanical equipment with many uses. The fuselage is narrow, easy handling, can easily and quickly stogether to hook up a variety of different functions to realize all kinds of work widely used in park, courtyard, lawn, garden or any other place in the environment.
Max working height |
2143 mm |
Max pin height |
1884 mm |
Max dump height |
1488 mm |
Max Dumping distance |
348 mm |
Bucket swing angle |
55° |
Dumping Angle |
30° |
Collection bucket angle |
25° |
Departure angle |
11° |
Total height |
1233 mm |
Ground clearance |
118 mm |
Wheelbase |
636 mm |
Length without bucket |
1752 mm |
Total width |
1160 mm |
|
bucket width |
980 mm |
|
Total length |
2206 mm |
|
Front turning radius
|
1307 mm |
Engine power |
15.438kw(21hp) |
