Titanium Oxide Ceramic Part for Textile Machinery

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HXP

Model Number:

HS69140

Shenzhen Huaxin Precision Ceramics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HXP

Model Number HS69140

Use Weaving Machinery

Type Gripper

Specifications

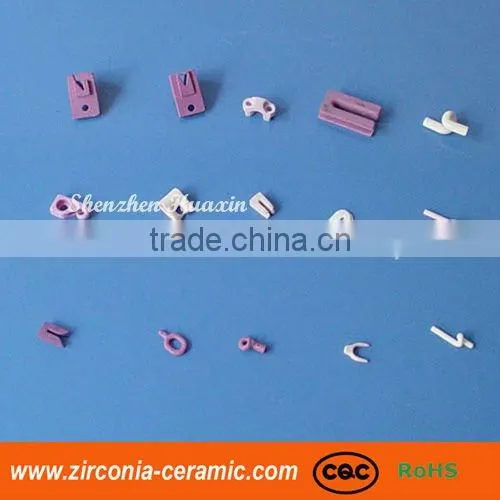

Titanium oxide ceramic part for textile machinery
Wear resistant
Anti-static
Precision polishing

95% alumina ceramic, 99.5% alumina ceramic, titanium oxideFeatures:

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) Stiffness texture

6) Used in all electric products and electric heating products

7) OEM, ODM and OBM are welcomed

We can supply the products according to customer's drawings, samples and performance requirement.

Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc.
Material	Unit	Steatite ceramics	95% alumina ceramics	99.5% alumina ceramics
Density	G/cm3	2.7	3.65	3.85
Highest application temperature	°C	1100	1500	1800
Bending strength	Mpa	150	300	340
Compressive strength	Mpa	900	3400	3600
Hardness	HV0.5	800	1800	2000
Insulation breakdown strength	KV/mm	10	15	18
Processing technology
Process range (mm)
Outside Diameter	1---300
Inside Diameter	0.5---300
Length	0.5---1200
Accuracy of working (mm)
Perpendicularity	0.01
Concentricity	0.01
Roundness	0.005
Straightness	0.005
Parallelism	0.01
Planeness	0.005
Roughness	0.05
Fit clearance	0.005
