Help Center2015 HOT! 4*4 Wheel Hydraulic Sugarcane Loader Excavator With Grab for Sale
Related Products
-
Cheap Mini Excavator 9 Ton Crawler Excavator With 0.35CBM Bucket DLS100-9BUS$ 10,000 - 60,000MOQ: 1 Set -
Cheap Mini Excavator With 0.3CBM Bucket DLS880-9BUS$ 40,000 - 100,000MOQ: 1 Set
-
Wolwa Sugarcane Harvest Machine With Grabber 8 Ton DLS880-9AGUS$ 15,000 - 35,000MOQ: 1 Set
-
Wolwa Child Excavator for Children Play WRT-360US$ 0.01 - 2,000MOQ: 1 Set
-
Wolwa Child Excavator Mini Digger for Children WRT-180US$ 0.1 - 3,000MOQ: 1 Set
DSL 760-9A wheeled sugarcane loader brief introduction
·Main parameter :operating weight 7600kg
grab and load weight 1000kg
power 74kw/2200rpm
·A strong energy-saving power system
·Operation environment is comfortable,safe,convenient
·Intelligent operation and display the humanized design
A)DLS760-9A sugarcane loader parameters
Max grapple height |
5400mm |
Max dumping height |
5300mm |
Max grapple radius |
5300mm |
Engine model |
4BTA3.9-C100 |
Rated power |
74KW(101HP) |
Engine brand |
Cummins |
Total machine weight |
7800kg |
Grab capacity |
1200-1300kg |
Working efficiency |
3000kg/min |
Working times |
3/min |
Hydraulic system working pressure |
20Mpa |
Maxing flux |
63ml/r/63ml/r |
Slope |
25% |
Working speed |
≤30km/h |
Boom rotation angle |
110° |
Overall dimension (L*W*H) |
4900*2600*3100mm |
Min. ground clearance |
580mm |
Wheel base |
2000mm |
Tires |
23.1-26 |
Fuel consumption |
≤225g/kw.h |

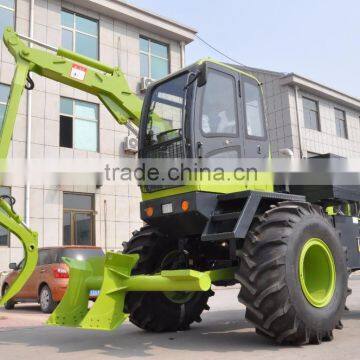

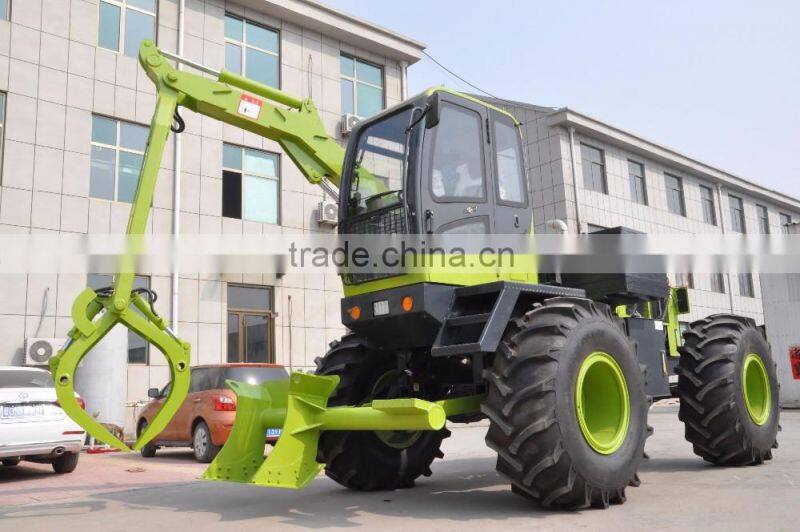

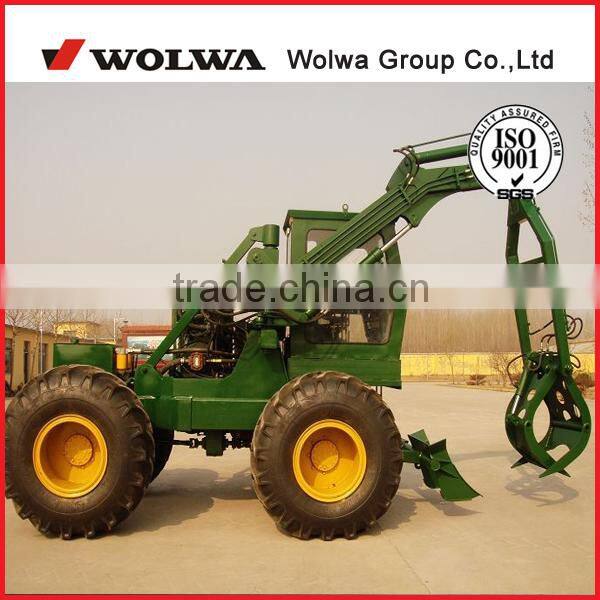

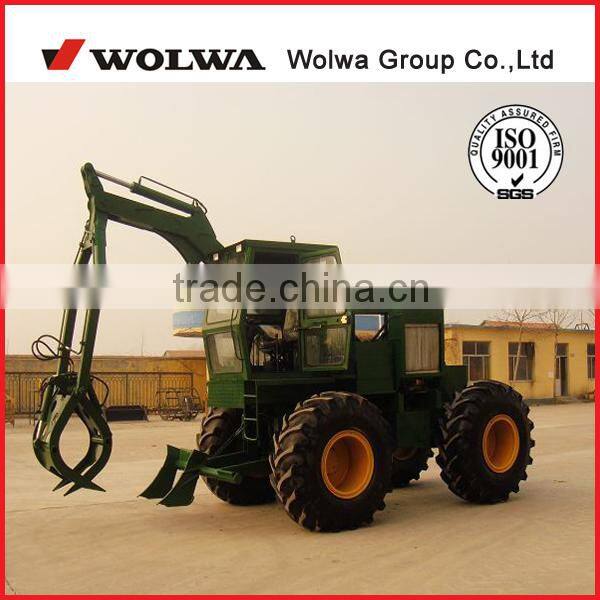

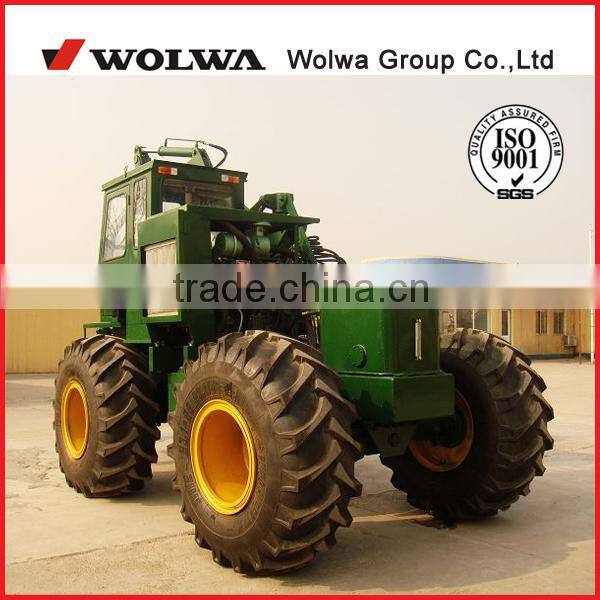

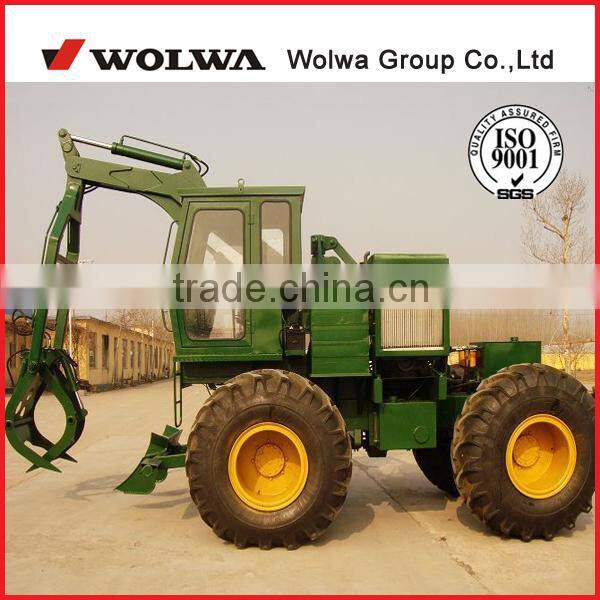

B)More DLS760-9A sugarcane loader photo
C)Our excavator workshop
D)Our exhibition
E)Our shipment
F)Contact information
