Place of Origin Guangdong, China
Type Ceramic Parts
Application Industrial Ceramic
Material Zirconia Ceramic
Model Number Zirconia Ceramic Sleeves
Brand Name Hxpceramcs

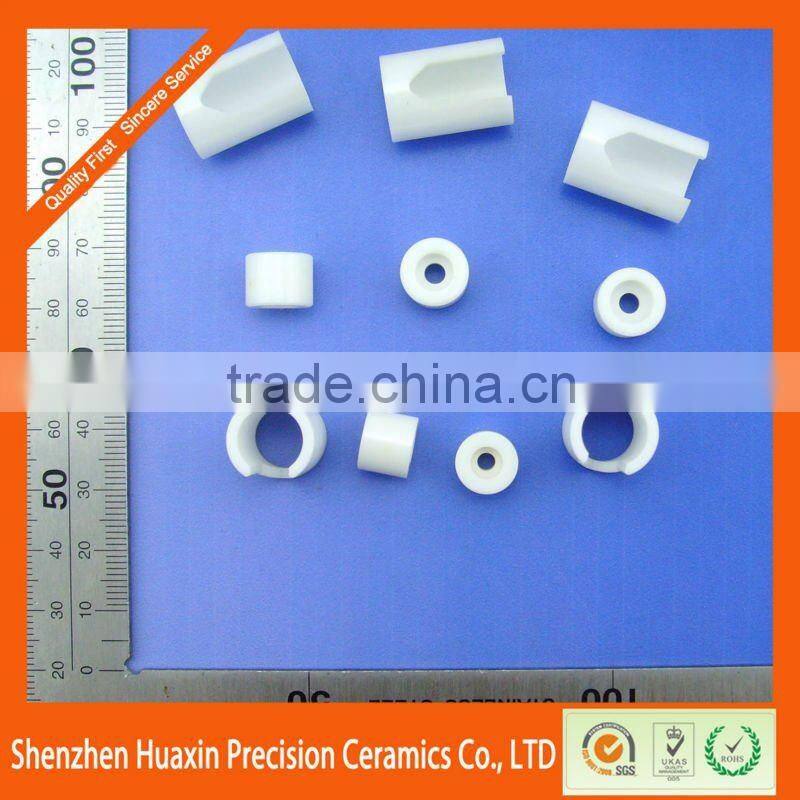

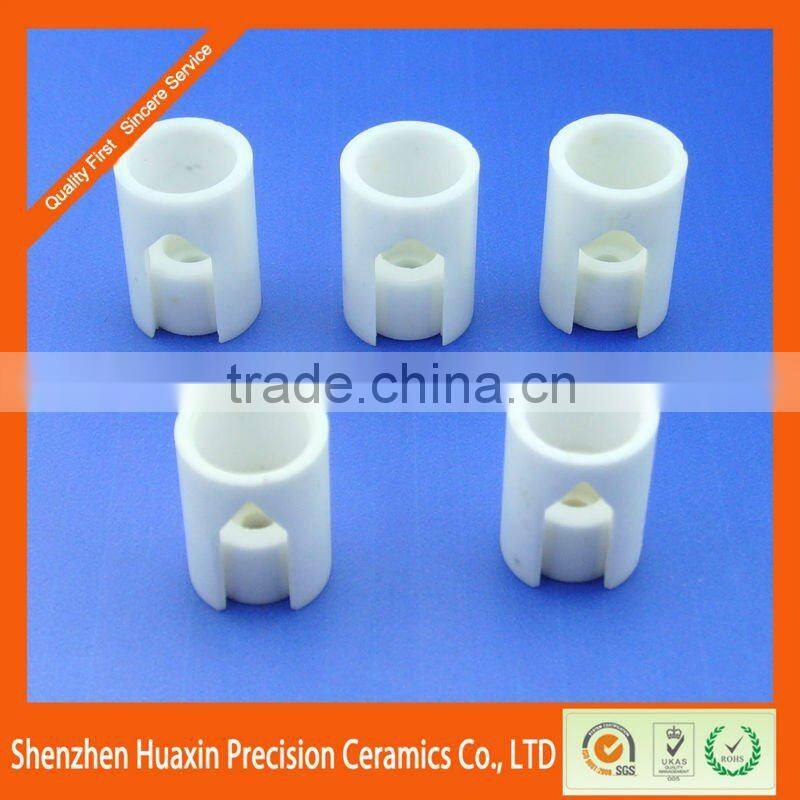

Good Precision Polishing Zirconia Ceramic Sleeves Zta Ceramic Bush

  1. Use temperatures up to 2400°C
  2. High density
  3. Low thermal conductivity (20% that of alumina)
  4. Chemical inertness
  5. Resistance to molten metals
  6. Ionic electrical conduction
  7. Wear resistance
  8. High fracture toughness

Good Precision Polishing Zirconia Ceramic Sleeves Zta Ceramic Bush

Zirconia ceramic are used in shaft , plunger, high-Pressure cleaning machines. sealing structure, auto mobile Industrial, oil drilling equipment, Insulation parts in electrical equipment , ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.

Zirconia ceramics performance

Density

g/cm3

6.05

Water absorption

%

<0.05

Firing temperature

°C

1550

Hardness

HV

1350

Bending strength

MPa

950

Compression strength

Mpa

25000

Breaking tenacity

Mpa·m1/2

6-8

Hot expansion coefficient

/°C

9.5x10-6

Processing technology

Process range (mm)

Outside Diameter

1---300

Inside Diameter

0.5---300

Length

0.5---800

Accuracy of working (mm)

Perpendicularity

0.01

Concentricity

0.01

Roundness

0.005

Straightness

0.005

Parallelism

0.01

Planeness

0.005

Roughness

0.05

Fit clearance

0.005

We can supply the products according to customer's drawings, samples and performance requirement.
