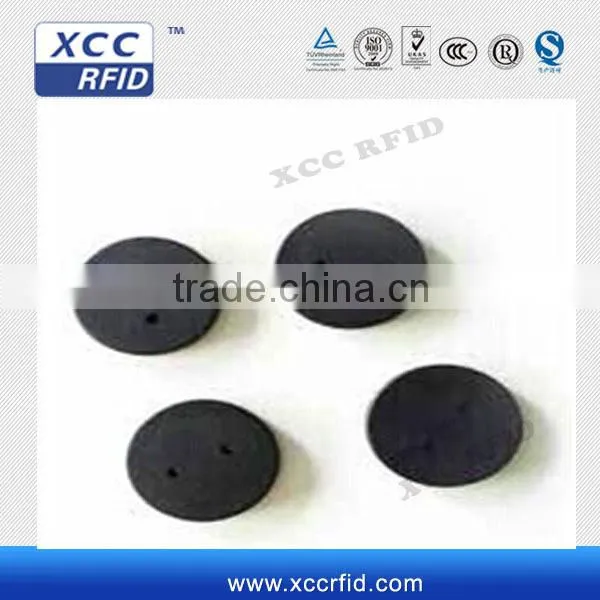

Dia 22 mm ISO14443A Ntag 213 NFC Laundry Tag With two hole
Manufactuer:XCC RFID
1) 18years RFID maufactuer experiences
2) 10 000 square meters factory
3) Export since 2007
Place of origin: Dongguan, Guagdong
1. Customized materil, size, colour
2. Compatible chip is available & Fast data transfer with stable profermance
3. Printable, strong 3M adhesive layer on back
4. nfc tags for mobile payment
5. Ntag203 chip nfc tag are hot in nowadays for widely using
PPS Laundry Tag
Product Description:
The Laundry tag has been specially designed for applications requiring a rugged transponder that can withstand harsh environment, this RFID tag basically meets all requirements in terms of heat, pressure and chemical resistance as needed in applications of RFID tracking of garments in the textile rental and laundry industries.
Product Parameter:(Mainly For HF Type the reading distance is not longer)
Available dimension:,20,22,24,26,28,30mm
Thickness: 2.5+/-0.3mm
Material: PPS Two Side
Chip Available:FM11RF08;1KS50 ISSI4439 Ntag213/Ntag216/Ntag215
Ultralight;I-CODE2,
Frequency Available:13.56Mhz
Operation temperature: -20 to 85 ℃
Storage temperature: -20℃~ + 110℃ for 500 hours
+120℃ for 35 hours, +140℃ for 5 hours
Typical programming cycles (at +25 degree C): 100,000
Data retention time (at +55 degrees Celsius): > 10 years
Simultaneous identification of tags: up to 50 tags per second (reader/antenna dependent)
Dimensions: Diameter.22 +/- 0.2mm x 3± 0.2m, hole size is diameter 2mm
Diameter25 +/- 0.2mm x 3, ±0.2m,hole size is diameter 3mm
Case material: nylon
Protection class: IP 68 (condition: water pressure 45bar, 10h)
Chemical resistance: typical chemicals used in laundry and dry-cleaning processesAnd we can supported other chip EM, H4102, E5557, HITAG 1 or 2
Standard Color: black
Options: Custom logo available on request.
Application:
Laundry tag can be widely applied in the following fields:
Tracking management
Factory/warehouse/hotel/hospital/amusement park
Hospital uniforms
Linens/ Pallets/ Canvas bags
Dry cleaners/Launderers
-
Use in hotel sheet/ Attached to textile/ Work clothing
NFC Type Information
|
Ultralight (UL) |
Ultralight C(ULC) |
Ntag203 |
1K |
Available Memory |
48byte |
148byte |
144byte |
752byte |
URL Length |
41characters |
132 characters |
132characters |
256characters |
Text length |
39characters |
characters |
132characters |
256characters |
NFC Type |
Type2 |
Type2 |
Type2 |
Type2 |
Date Example |
Short url,phone number,plece of text |
Long url,smart poster,short contact(i.e name and phone number) |
Long url,smart poster,short contact(i.e name and phone number |
Full contact information |
Performance |
Good;fast chip and low data amount result in a quick read time |
Not great;the built in encryption slows down the read time |
Awesome;latest chip and antenna design and low data size result in quick read time |
Slow,due to older chip design and larger data size |
Formatting |
Blank can be NDEF formatted |
Blank Can be NDEF formatted |
NDEF formatted |
Blank can be NDEF formatted |
Cost |
cheap |
cheap |
cheap |
expensive |
Lockable |
yes |
yes |
yes |
Technically no,but tag locking can be |
Our Opinion |
OK,if you only need minimal storage .If you are going to use NDEF ,then it would be better to use the NTAG
|
Similar to the NTAG,but performance is not that great.The additional data storage over the Ultralight is nice you aren’t to use |
The best all around chip to use if you’re using NDEF |
Only use this chip if you need the additional data storage |
