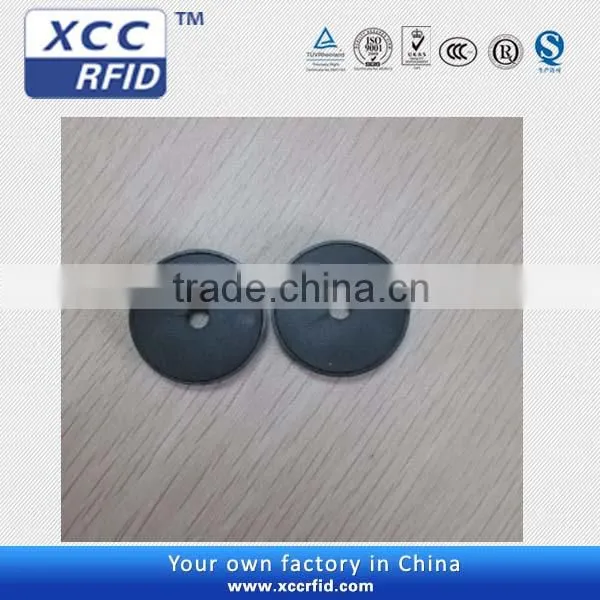

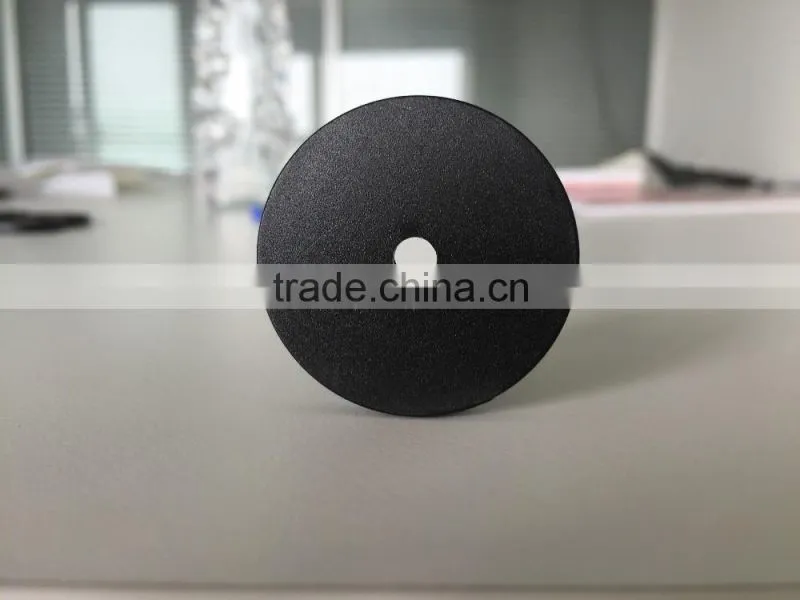

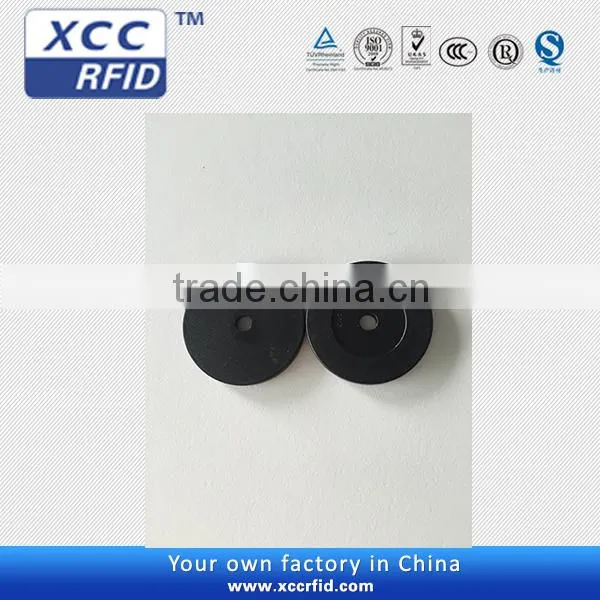

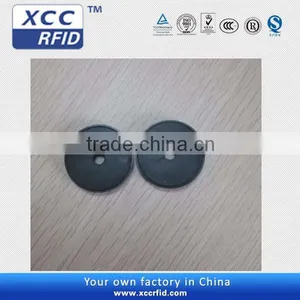

Good Passive Patrol Tag for Patrol System

US$ 0.15 - 1.50 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

XCC

Model Number:

2016011205

Shenzhen XCC RFID Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name XCC

Model Number 2016011205

Manufactuer:XCC RFID

1) Export since 2007
2) 10 000 square meters factory
3) Insist on the concept of Integrity Managment since 1996s

Place of origion: Dongguan, China

Features of Security Patrol RFID Tags

1. Waterproof Passive Security Patrol RFID Tags with stable Reading performance

2. Other size and chip type are available

3. 1 or 2 colors silk printing logo

4. 3M glue sticker layer on back

5. Patorl tags can be done with or without anti-metal material

cal	Dimension:	25/30/34mm or customized
	Thickness	4.5mm or customized
2.Material	PCB, ABS
3.Chips available	HF 13.56MHz Chips (ISO 14443-A/B/15693/18000-3)
	Mf Ultralight / Mf S50 / Mf S70 /Ntag213
	Mf ICODE SLI-L /ICODE SLI/ ICODE SLI-S
	Mf DESFire EV1 2k/4K/8K
	Mf Plus S2K/4K & Mf Plus X2K/4K

	LF 125Khz Chips(ISO 18000-2)
	Tk4100/Em4200/T5577
	Hitag1/2 Hitag S256/2048
4.Memory Size	96bit / 512bit / 1-8Kbit / 1KByte /2KByte /8KByte
5.Write Cycle	100,000
6.Data retention time	10 years
7.Reading Distance	0-6cm (According to the design of the antenna of the reader)
8.Working Temp	-25~+60°C
9.Available Craft	4-color offset printing , Silk-screen printing ,Thermal printing ,
	Digit printing , Magnetic stripe , Barcode, Hot-stamping gold/silver color , Signature panel , Series number marking, Hole punch,
	UV printing etc.
10.Application:	Electronic consumption
	Access management
	Property management
	Airport baggage tracking logistics
	Medical care
	Attendance management
	Banking business
