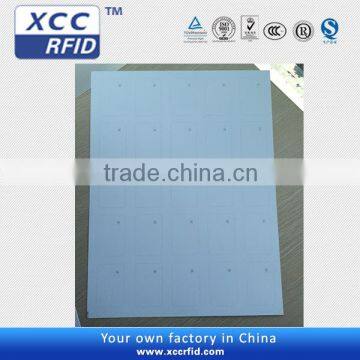

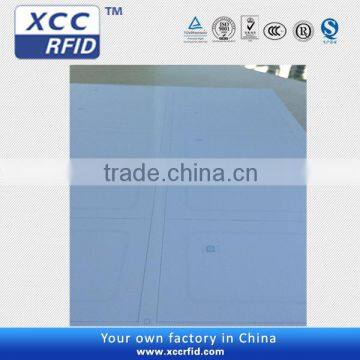

Help CenterTop Quality Manufacture of RFID Card Inlay
Related Products
-
High Quality RFID Smart Card Inlay ManufacturerUS$ 0.15 - 1.50MOQ: 100 Pieces -
Transparent RFID Smart Card Inlay ManufacturerUS$ 0.15 - 1.50MOQ: 100 Pieces
-
New Prelam Manufacture of RFID Card InlayUS$ 0.12 - 0.15MOQ: 100 Pieces
-
RFID Smart Card Inlay ManufacturerUS$ 0.15 - 1.50MOQ: 100 Pieces
-
Prelam Manufacturer of China Hitag 256 PrelamUS$ 0.5 - 4MOQ: 1000 Pieces
Manufactuer:XCC RFID
1) 19 years RFID maufactuer experiences
2) 10 000 square meters factory
3) Export since 2007
Place of origion: Dongguan, Guagdong

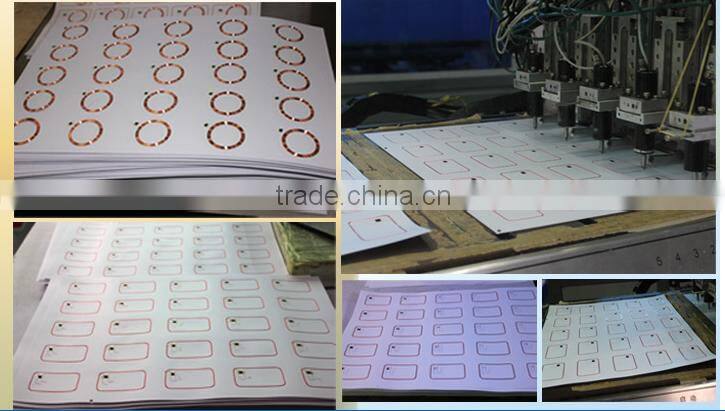

We have ultrasonic and flip technique to produce PVC Card Inlay. A. the cards made by Flip will have very flat surface, and very thinner thickness; B. ultrasonic, it has the best working performance no matter for the reading distance, or the card’s surface.
XCCRFID provides card manufactures with a reliable and convenient semi-product for the manufacture of finished contactless cards, Prelam stands for Pre-laminated. XCCRFID prelam could incorporate pre-winding coil or ultrasonic embedding copper antenna,even FLIP chip etching antenna upon the customer’s requirements. The prelam can be made of material PVC,PET,etc.We could develop any size and shape of antenna that can be adapted to the specific requirements of the customer. Reliability, durability and prefect electrical performance,compliant with divers standards.
XCCRFID RFID Card Inlay is ideal semi-products for laminating contactless card,tag applications such as automated fare collection,access control, ePayment and identification.
1. Excellent surface for card laminate processing
2. High-class etched aluminium antenna
3. Multi size PVC sheet available
4. Reliability, durability electrical performance leads high yield rates in cards/tags production
| 1.Physical | Format | 2*5, 5*5, 4*6, 3*8, 4*10 or customized |
| Layout: | 305*460, 325*480, 300*480, 290*480, 210*297, 305*460, 400*470 mm or customized formats. | |
| Thickness | 0.38-0.55 mm or customized | |
| 2.Material | PVC + copper antenna | |
| 3.Other Chip choice | HF 13.56MHz Chips (ISO 14443A/15693) | |
| Ultralight /S50 /S70/ ICODE SLI-X/ICODE SLI/ ICODE SLI-S/Ntag213/215/216 | ||
| Defire 2k/4K/8K, Plus(S)(X)2K/4K | ||
| LF 125Khz | ||
| T5577, Tk4100, Em4200, Em4305, hitag | ||
| 4.Memory Size | 96bit / 512bit / 1-8Kbit / 1KByte /2KByte /8KByte | |
| 5.Write Cycle | 100,000 | |
| 6.Data retention time | 10 years | |
| 7.Reading Distance | 0-100cm (According to the design of the antenna of the reader) | |
| 8.Application: | For card production | |
