125Khz LF RFID Cards Prelam/Inlay Thickness 0.42-0.46mm

US$ 0.09 - 1.5 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

XCC

Model Number:

ki 16032803 thin inlay

Shenzhen XCC RFID Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name XCC

Model Number ki 16032803 thin inlay

Manufactuer:XCC RFID

1) RFID maufactuer since 1996
2) 10 000 square meters factory
3) Export since 2007

Place of origion: Dongguan, Guagdong

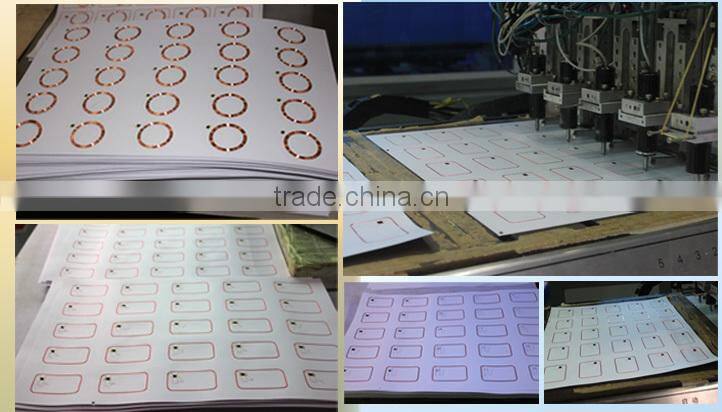

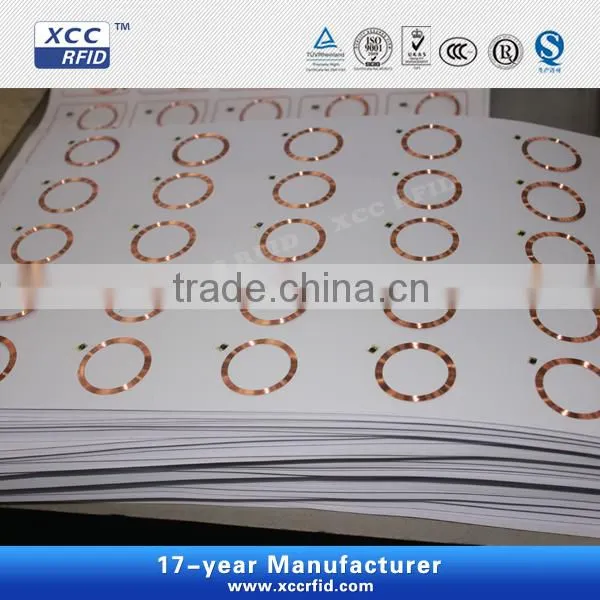

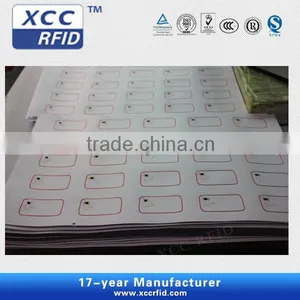

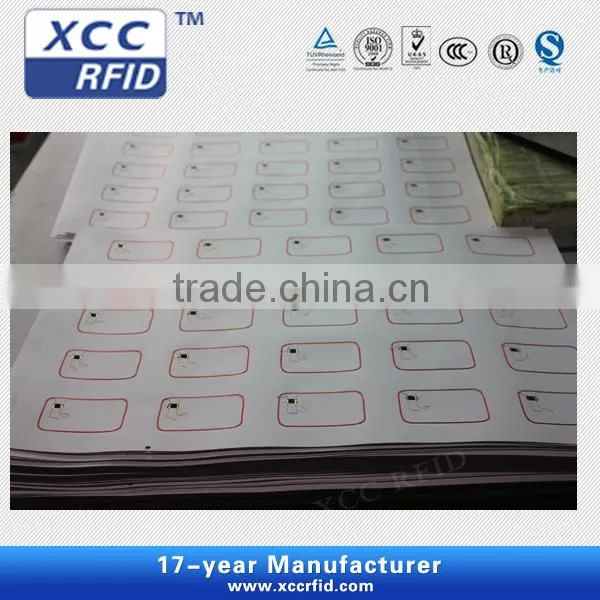

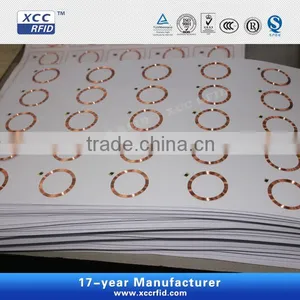

125Khz LF RFID Cards Prelam/Inlay Thickness 0.42-0.46mm

Features of smart cards inlay

1. Excellent surface for card laminate processing

2. Custom layout, big size is acceptable, such as 450x610mm.

3. For low frequency, thickness can be do at 0.40mm without chips, with chips 0.42-0.46mm.

4. Reliability, durability electrical performance, good quality rfid cards prelam leads lower loss rates in cards/tags production, saving your cost.

Specification of smart cards inlay

1.Physical	Format	25, 55, 46, 38
	Layout:	305460, 325480, 300480, 290480, 210297, 305460, 400*470 or customized formats.
	Thickness	0.38-0.55 mm or customized
2.Material	PVC + copper antenna
3.Other Frequency Chip choice	HF 13.56MHz Chips (ISO 14443-A/B/15693/18000-3)
	Mf Ultralight /Mf S50 / Mf S70
	Mf ICODE SLI-L /ICODE SLI/ ICODE SLI-S
	Mf EV1 2k/4K/8K
	Mf Plus S2K/4K
	Mf Plus X2K/4K
	LF 125Khz
	T5577/ Tk4100, Em4200, Em4305
	Hitag1/2 hitag256/2048
4.Memory Size	96bit / 512bit / 1-8Kbit / 1KByte /2KByte /8KByte
5.Write Cycle	100,000
6.Data retention time	10 years
7.Reading Distance	0-100cm (According to the design of the antenna of the reader)
8.Working Temp	-20~+70°C
9.Application:	For card production process
