Manufactuer:XCC RFID
1)Export since 2007

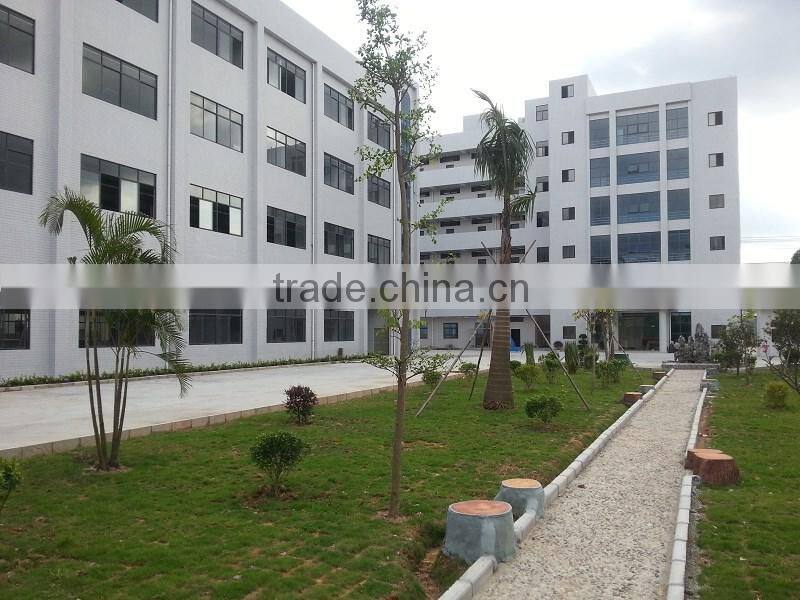

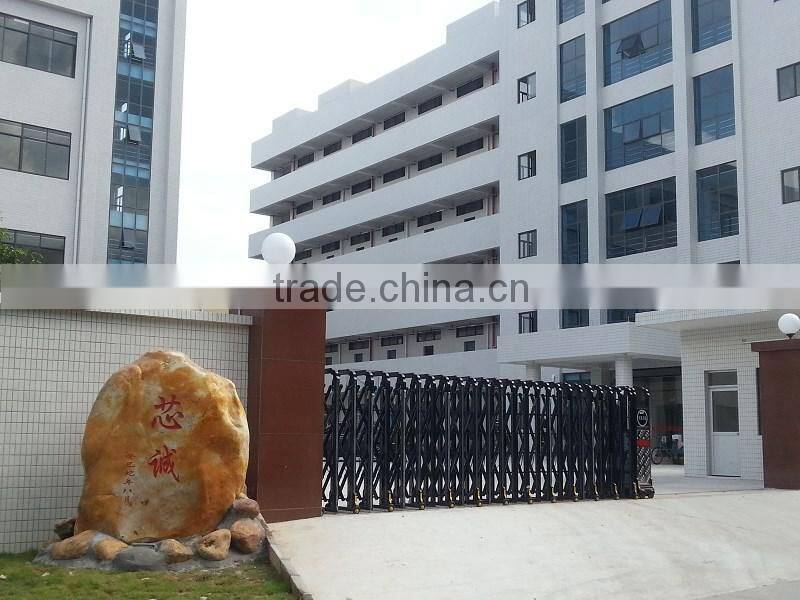

2)100,00 square meters factory
3)19 years RFID maufactuer experiences
Place of origion: Dongguan, China
GENERAL DESCRIPTION

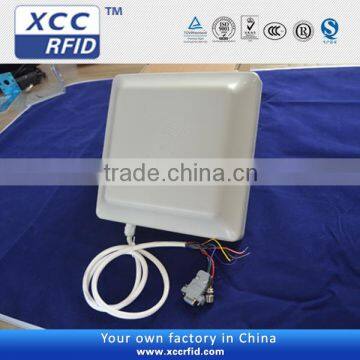

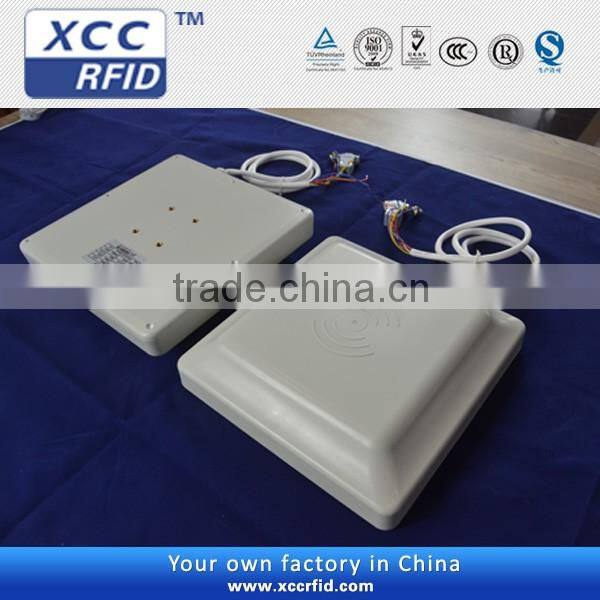

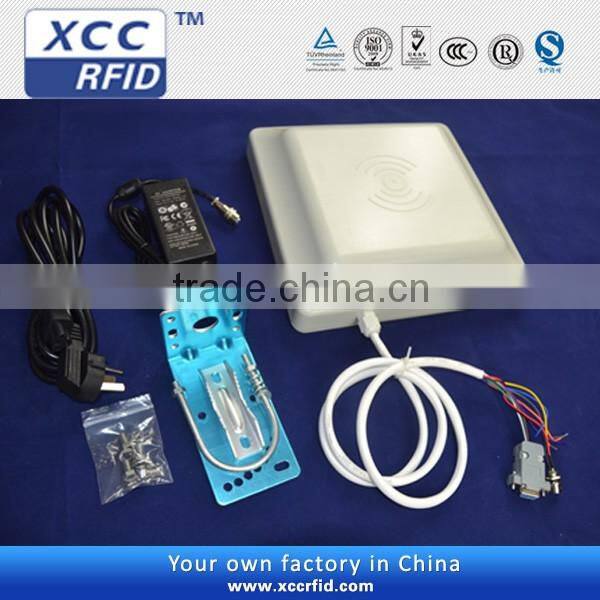

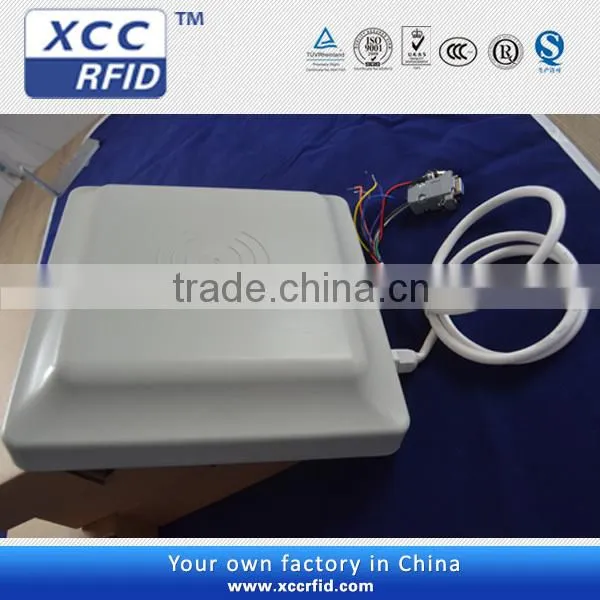

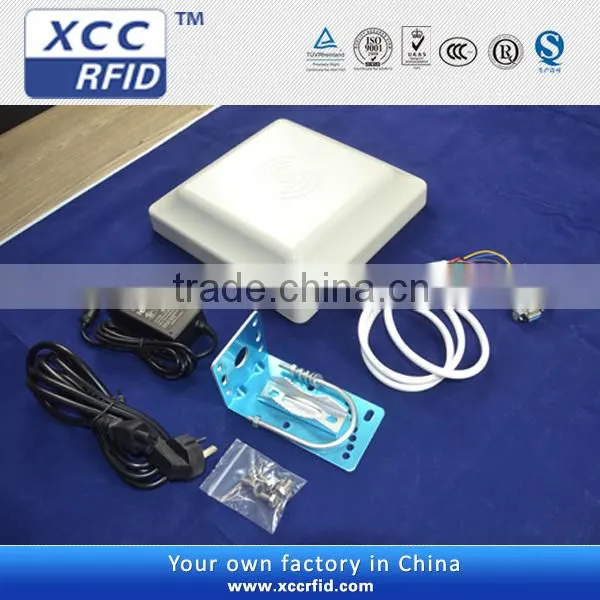

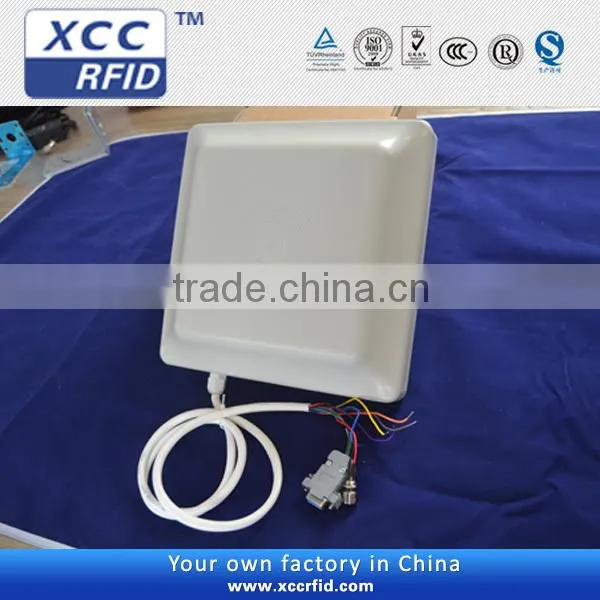

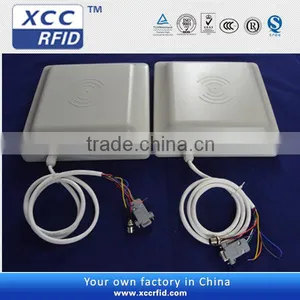

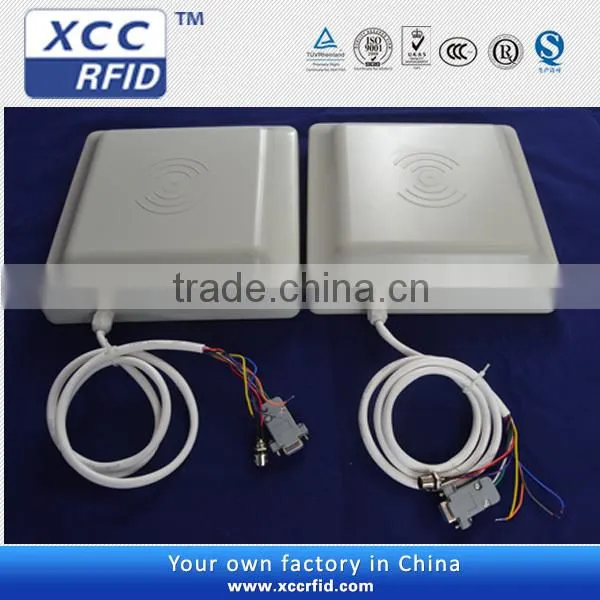

XCC-RFID101 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
FEATURES
l Self-intellectual property;
l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
l 902~928MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l 8dbi antenna optional with effect distance more than 5m*;
l Support auto-running, interactive and trigger-activating work mode;
l Low power dissipation with single +9 DC power supply;
l Support RS232, RS485, Wiegand interface;
l Provide DLL and Demonstration Software Source code to facilitate further development.
CHARACTERISTICS
l Absolute Maximum Rating
ITEM |
SYMBOL |
VALUE |
UNIT |
Power Supply |
VCC |
16 |
V |
Operating Temp. |
TOPR |
-10~+60 |
℃ |
Storage Temp. |
TSTR |
-25~+80 |
℃ |
l Electrical and Mechanical Specification
Under TA=25℃,VCC=+9V unless specified
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
Power Supply |
VCC |
8 |
9 |
12 |
V |
Current Dissipation |
IC |
|
350 |
650 |
mA |
Frequency |
FREQ |
902 |
|
928 |
MHz |
Effective Distance |
DIS |
800 |
1000 |
|
cm |
INTERFACE
|
ITEM |
COMMENT |
Red |
+9V |
Black |
GND |
Yellow |
Wiegand DATA0 |
Blue |
Wiegand DATA1 |
Purple |
RS485 R+ |
Orange |
RS485 R- |
Brown |
GND |
White |
RS232 RXD |
Green |
RS232 TXD |
Grey |
Trigger input(TTL level) |
USB ID reader
