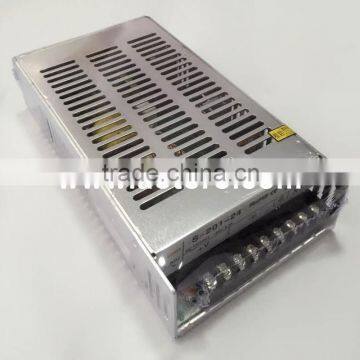

Help CenterSmps Power Supply S-201-48 48V DC SMPS Quality Guaranteed
Related Products
-
S-240-15 Single Output 12v Multiple Output Power Supply Power SupplyUS$ 15.5 - 15.5MOQ: 1 Piece -
Power Supply Circuit S-240-24 Meanwell Power SupplyUS$ 15.6 - 15.6MOQ: 1 Piece
-
Power Tap Switch S-240-48 Single Smps Power Supply Circuit Quality GuaranteedUS$ 13.3 - 24.1MOQ: 1 Piece
-
Led Power Supply S-240-5 Quality Manufacturing Posters Quality GuaranteedUS$ 13.3 - 24.1MOQ: 1 Piece
-
Variable Output dc Power Supply S-240-48 Multi Output Switch PowerUS$ 15.6 - 15.6MOQ: 1 Piece
Established in 1997, Yueqing Aotoro Electric Automation Co.,Ltd is a professional in the electronic sensors research and development, one of the most professional sensor manufactures China.Now, we have won high and good reputation from customers both at home and abroad with excellent products and competitive price. We special manufacture in photoelectric switch,proximity switch,solid state relay,switch power supply,magnetic relay,timer relay,counter, touch sensor, all of our product have already approved CE certificate. We always believe in that the enterprise could keep leading position in the market as long as we are seeking our object.With this spirit,we always try best to satisfactory our customers to enlarge markets.
|
MODEL
SPECIFICATION |
S-201-5 |
S-201-7.5 |
S-201-12 |
S-201-15 |
S-201-24 |
S-201-27 |
S-201-48 |
|||
OUTPUT DC VOLTAGE |
5V |
7.5V |
12V |
15V |
24V |
27V |
48V |
|||
RATED CURRENT |
40A |
26.5A |
16.5A |
13A |
8.3A |
7.4A |
4.2A |
|||
OUTPUT CURRENT |
0-40A |
0-26.5A |
0-16.5A |
0-13A |
0-8.3A |
0-7.4A |
0-4.2A |
|||
RIPPLE & NOISE |
150mVp-p |
150mVp-p |
180mV |
180mV |
180mV |
240mV |
240mV |
|||
LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|||
LOAD REGULATION |
±1% |
±1% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|||
RATED POWER |
200W |
198.75W |
198W |
198W |
199.2W |
199.8W |
201.6W |
|||
EFFICIENCY |
74% |
79% |
80% |
81% |
83% |
83% |
84% |
|||
VOLTAGE ADJ. RANGE |
4.5-5.6V |
6-9V |
10-13.2V |
13.5-18V |
20-26.4V |
26-32V |
41-56V |
|||
INPUT VOLTAGE RANGE |
90-132VAC/186-264VAC selected by switch |
|||||||||
INPUT AC CURRENT |
4.5A/115V 2.5A/230V |
|||||||||
INRUSH CURRENT |
30A/115V 50A/230V |
|||||||||
LEAKAGE CURRENT |
<3.5mA/240VAC |
|||||||||
OVER LOAD PROTECTION |
105 ~ 150% rated output power, cut off output power, auto-recovery |
|||||||||
OVER VOLTAGE PROTECTION |
5.75-6.75V |
9.4-10.9V |
15.5-18.2V |
18-21V |
27.6-32.4V |
33.7-39.2V |
57.6-67.2V |
|||
TEMP. PROTECTION |
RTH3>=90 cut off output power |
|||||||||
TEMP. COEFFICIENT |
±0.03%(050) |
|||||||||
SETUP, RISE, HOLD TIME |
200ms,100ms,20ms |
|||||||||
VIBRATION |
10500Hz,2G 10min./1 cycle , period for 60min, each along X, Y, Z axes |
|||||||||
WITHSTAND VOLTAGE |
I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC |
|||||||||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|||||||||
WORKING TEMP. HUMIDITY |
-10+50,20%90%RH |
|||||||||
STORAGE TEMP., HUMIDITY |
-20+85,10%95%RH |
|||||||||
DIMENSION |
215*115*50mm |
|||||||||
WEIGHT |
0.9Kgs |
|||||||||
SAFETY STANDARDS |
UL1012 |
|||||||||
EMC |
FCC PART15J CONDUCTION CLASS B |
|||||||||
AOTORO Technology Support
Index: passed the CCC, CE certification, all the technical indexes reach achieve national standard (GB/T14048.10-1999), Technology: adopting new special IC, adopt the most complete technica l design, with various protection circuit, anti-jamming measures, more stable performance. by SMD production technology, product reliability and consistency. Management: passed ISO9001 certification, all processes of production links is strict accordance with the standardization documents, never let any nonconforming into the market. Appearance: by international standard method to design, structure more reasonable and more beautiful appearance. Service: pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guaranteed.
Payment
1. Full payment must be made within 15 days of placing your order.
2. The buyer is responsible for any tax and/or duty charged by their country.
Shipping and handing
FEDEX is our preferred shipping method. We offer ship goods with FEDEX EMS TNT DHL UPS.
Insurance
Buyers are responsible for any insurance they feel is required..
RefundExchange Only
1.If you are not satisfied with your purchase, you can exchange the item. The buyer is responsible for all further shipping fees.2. The buyer must contact us within 3 days of delivery if they wish to exchange defective or incorrectly shipped items.
Feedback
Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems.
Service:
pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guaranteed.
