Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Led Switching Power Supply S-100-15 15V 120v Power Switch Quality Guaranteed

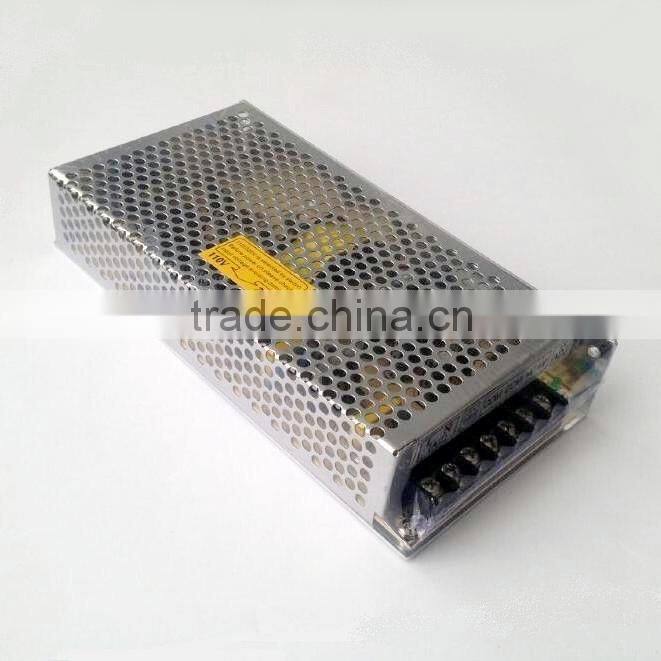

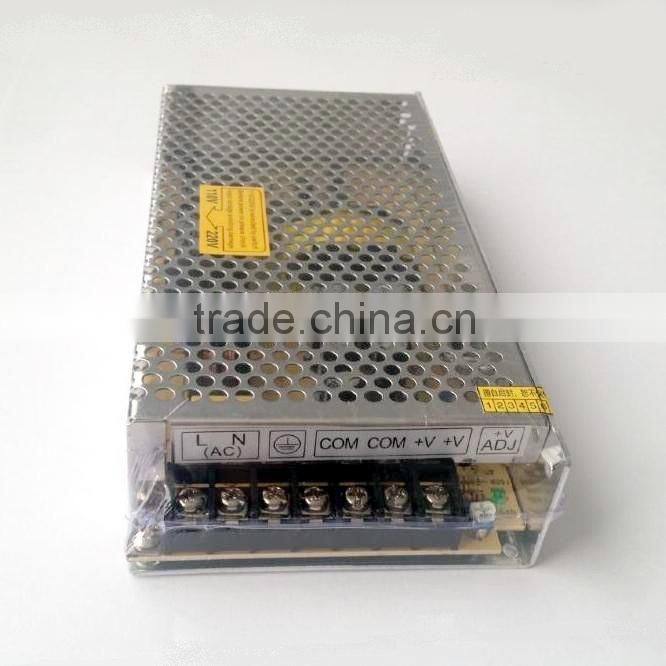

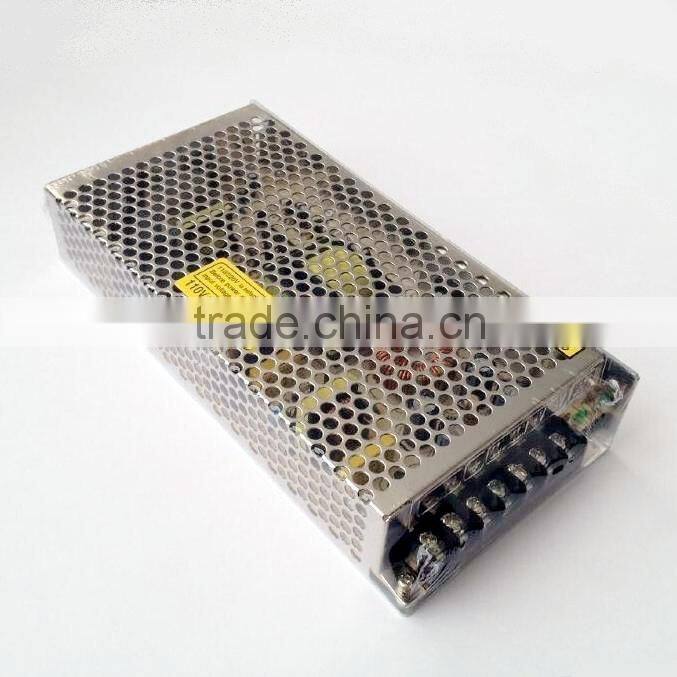

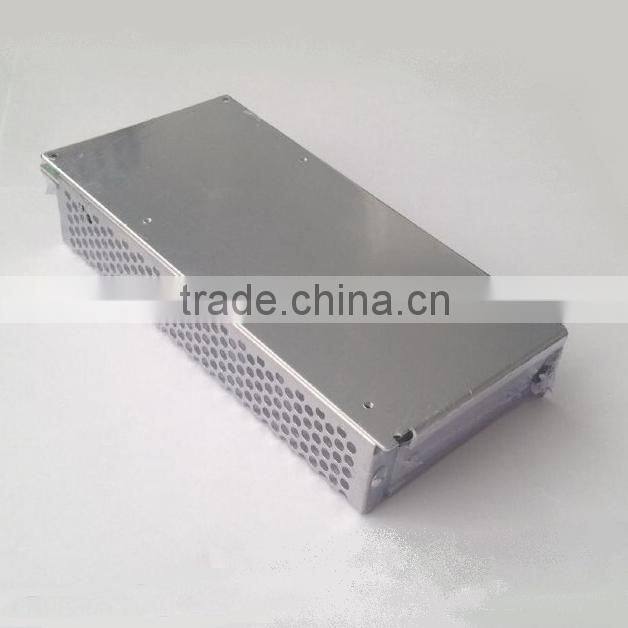

Led Switching Power Supply S-100-15 15V 120v Power Switch Quality Guaranteed

Name: Led Switching Power Supply S-100-15 15V 120v Power Switch Quality Guaranteed
Brand: Aotoro
SKU: 111807633
Availability: InStock

Yueqing Aotoro Electric Automation Co., Ltd.

Led Switching Power Supply S-100-15 15V 120v Power Switch Quality Guaranteed thumbnail-1

Led Switching Power Supply S-100-15 15V 120v Power Switch Quality Guaranteed photo-1

US$ 8.3 - 15 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Aotoro

Model Number:

S-100-15

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Aotoro

Model Number S-100-15

Output Power 51 - 100W

Output Type Single

Input Voltage Other, 85-132VAC,180-264VAC

Output Voltage 3V5V7.5V12V15V24V27V48V

Output Current 20A13.6A8.5A6.7A4.5A3.7A2A

Specifications

led switching power supply
(1)AC Input Power
(2)High Efficiency&Low Operation Temperature
(3)Compact Size Light Weight

Established in 1997, Yueqing Aotoro Electric Automation Co.,Ltd is a professional in the electronic sensors research and development, one of the most professional sensor manufactures China.Now, we have won high and good reputation from customers both at home and abroad with excellent products and competitive price. We special manufacture in photoelectric switch,proximity switch,solid state relay,switch power supply,magnetic relay,timer relay,counter, touch sensor, all of our product have already approved CE certificate. We always believe in that the enterprise could keep leading position in the market as long as we are seeking our object.With this spirit,we always try best to satisfactory our customers to enlarge markets.

MODEL SPECIFICATION	S-100-3	S-100-5	S-100-7-5	S-100-12	S-100-15	S-100-24	S-100-27	S-100-48
OUTPUT DC VOLTAGE	3V	5V	7.5V	12V	15V	24V	27V	48V
RATED CURRENT	20A	20A	13.6A	8.5A	6.7A	4.5A	3.7A	2A
OUTPUT CURRENT	0-20A	0-20A	0-13.6A	0-8.5A	0-6.7A	0-4.5A	0-3.7A	0-2A
RIPPLE & NOISE	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
LOAD REGULATION	±1%	±1%	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
RATED POWER	60W	100W	102W	102W	100.5W	108W	99.9W	96W
EFFICIENCY	70%	78%	80%	81%	81%	84%	84%	84%
VOLTAGE ADJ. RANGE	2.85-3.3V	4.75-5.5V	6.75-8.25V	10.8-13.2V	13.5-16.5V	21.6-26.4V	26-32V	43.2-52.8V
INPUT VOLTAGE RANGE	85-132VAC/180-264VAC selected by switch
INPUT AC CURRENT	2.4A/115V 1.2A/230V
INRUSH CURRENT	COLD START 30A/115V 60A/230V
LEAKAGE CURRENT	<2mA/240VAC
OVER LOAD PROTECTION	105 ~ 150% rated output power, cut off output power , auto-recovery
TEMP. COEFFICIENT	±0.03%(050)
SETUP, RISE, HOLD TIME	200ms,100ms,30ms
VIBRATION	10500Hz,2G 10min./1 cycle , period for 60min, each along X, Y, Z axes
WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
WORKING TEMP. HUMIDITY	-10+60,20%90%RH
STORAGE TEMP., HUMIDITY	-20+85,10%95RH
DIMENSION	1999838mm
WEIGHT	0.66Kgs
SAFETY STANDARDS	UL1012
EMC	FCC PART15J CONDUCTION CLASS B

Aotoro Technology support:

Index: passed the CCC, CE certification, all the technical indexes reach achieve national standard (GB/T14048.10-1999),

Technology: adopting new special IC, adopt the most complete technical design, with various protection circuit, anti-jamming measures, more stable performance.

by SMD production technology, product reliability and consistency.

Management: passed ISO9001 certification, all processes of production links is strict accordance with the standardization documents, never let any nonconforming into the market.

Appearance: by international standard method to design, structure more reasonable and more beautiful appearance.

Service: pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guarantee.

Payment

1. Full payment must be made within 15 days of placing your order.

2. The buyer is responsible for any tax and/or duty charged by their country.

Shipping and handing

FEDEX is our preferred shipping method. We offer ship goods with FEDEX EMS TNT DHL UPS.

Insurance

Buyers are responsible for any insurance they feel is required..

RefundExchange Only

1.If you are not satisfied with your purchase, you can exchange the item. The buyer is responsible for all further shipping fees.2. The buyer must contact us within 3 days of delivery if they wish to exchange defective or incorrectly shipped items.

Feedback

Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems.

Service:

pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guaranteed.
