Popular Customized Electric Flat Carriage, Electric Flat Car for Sale
Popular Customized Electric Flat Carriage, Electric Flat Car for Sale

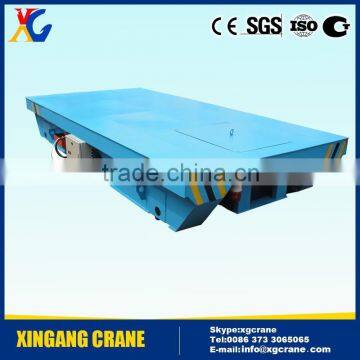

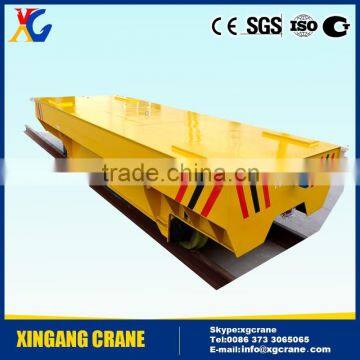

KPC 30T Electric Flat Carriage
KPC Series power supply contact line is flat, security sliding touch line AC 380V directly into
the car to a flow control system, to control the car to start, stop, forward and backward, and so on. Driven by car mobile slide block safety sliding contact line to achieve to
car power supply, security sliding touch line by the installation location restrictions, can be
installed in the outer tracks or rail trench.

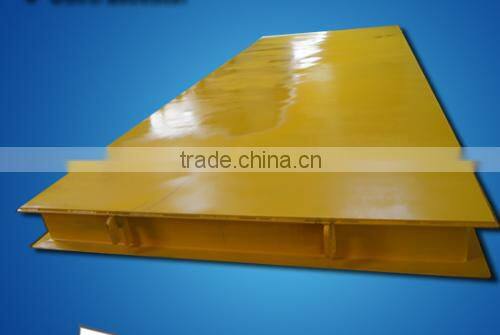

1.Welded construction of structural steel
2.Lugs for securing loads ; Four steel wheels
3.Cable pendant controlled ; Brakes
4.Steel wheels; Steel deck
5.Electric powered
It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on.
KPC Series power supply contact line is flat, security sliding touch line AC 380V directly into the car to a flow control system, to control the car to start, stop, forward and backward, and so on. Driven by car mobile slide block safety sliding contact line to achieve to car power supply, security sliding touch line by the installation location restrictions, can be installed in the outer
tracks or rail trench.
| Type | KPC | KPC6 | KPC10 | KPC16 | KPC25 | KPC40 | KPC63 | KPC100 | KPC160 | |
| rated load(t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | ||
| table-board dimensions(mm) | Length L | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | |
| Width B | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | ||
| High H | 550 | 550 | 580 | 650 | 700 | 850 | 900 | 1150 | ||
| running speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | ||
| padding-bottom(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 | ||
| wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | ||
| wheel pair C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | ||
| wheel base A(mm) | 2000 | 2000 | 2200 | 2500 | 2800 | 3200 | 3600 | 4500 | ||
| motor type | YZ 2.2 | YZ 2.2 | YZ 3.7 | YZ 3.7 | YZ 5.5 | YZ 7.5 | YZ 7.5 | YZ 7.5×2 | ||
| power(Kw) | 2.2 | 2.2 | 3.7 | 3.7 | 5.5 | 7.5 | 7.5 | 7.5×2 | ||

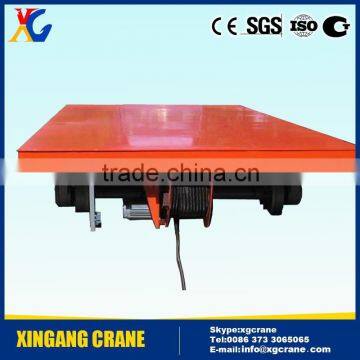

| KPJ cable drum | AC380V | AC380V |
AC380V 3×4+1×2.5 |
|||||||
| 3×2.5+1×1.5 | 3×4+1×2.5 | |||||||||
| Reference weight (t) | 2.2 | 2.5 | 3.2 | 4.3 | 5.7 | 8.3 | 10.2 | 22.5 | ||
| Recommended the rail type | P24 YB222-63 | P38 GB183-63 | P43 GB182-63 | P50GB181-63 | ||||||
| Number of wheel/roller | 4/2.2t | 4/3.3t | 4/5t | 4/7.5t | 4/11.5t | 4/18t | 4/27.5t | 8/22.8t | ||
| pressure | ||||||||||
Related Products:
1. Is your Electric Flat Car customized?

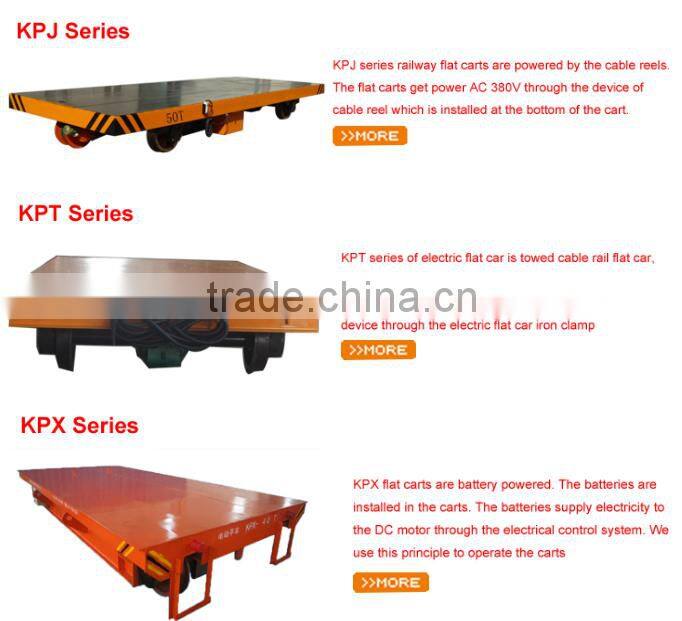

Yes, according to your demands and usage, we could offer different electric flat car, such as KPJ,KPX, KPC,KPT, They all can be design by your need.
2.What kind of information should I provide when inquiry?
•Load capacity
•Table size
•Power supply mode
•Industry power source in your country
•Or other detailed requirements
3.Can I have a visit to your factory?
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
4.Why choose us?
♦Provide a various kinds of electric flat car, which could meet customer's needs.
♦We could help customer choose the right model and also provide customization.
♦ Provide timely delivery,Sales engineers are ready to solve all problem.
If you want to order our products,Pls feel free to contact Jessie.Thanks a lot .
