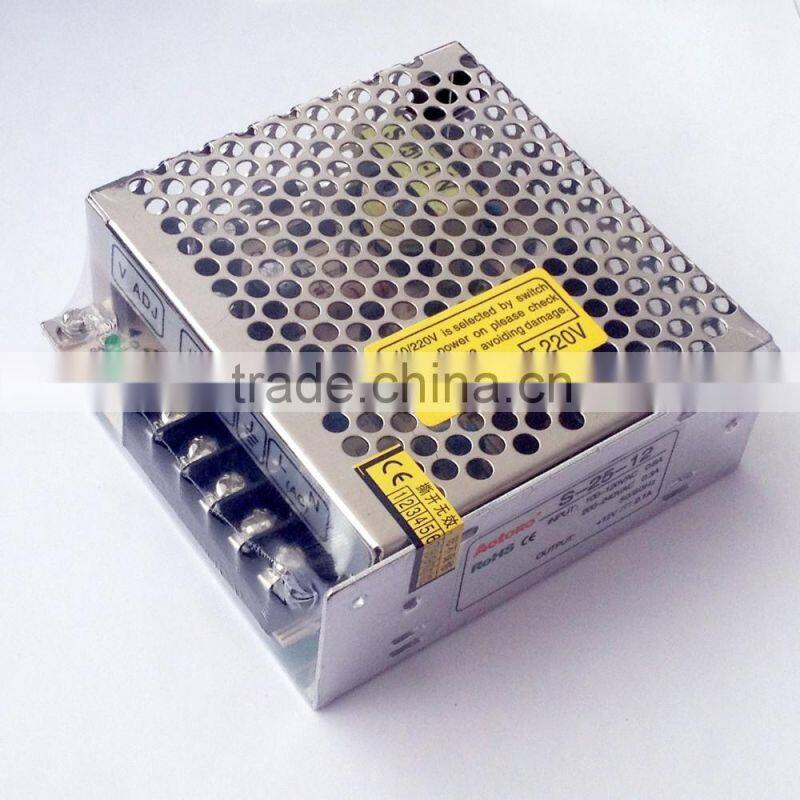

Help CenterAc/dc Switching Power Supply S-25-12 12v Electric Switch Quality Guaranteed
Related Products
-
Led Switching Power Supply S-25-5 5V 5AUS$ 4.5 - 8.2MOQ: 5 Pieces -
Emerson Switch Mode Power Supply S-25-24 Quality GuaranteedUS$ 4.5 - 8.2MOQ: 5 Pieces
-
Switching Power S-25-12 12v Supply Supplier 120v Power SwitchUS$ 4.5 - 8.2MOQ: 5 Pieces
-
25W Power Supply Led SMPS SupplierUS$ 4.5 - 8.2MOQ: 5 Pieces
-
Switching Power Supply S-25-5 5V 5A LED Power Supply Quality GuaranteedUS$ 4.5 - 8.2MOQ: 1 Piece
Specifications
ac/dc switching power supply1.AC input range selected by switch
2.size:99*97*35mm
3.high reliabiltity
4.packaging standard
AOTORO Technology Support Index: passed the CCC, CE certification, all the technical indexes reach achieve national standard (GB/T14048.10-1999), Technology: adopting new special IC, adopt the most complete technica l design, with various protection circuit, anti-jamming measures, more stable performance. by SMD production technology, product reliability and consistency. Management: passed ISO9001 certification, all processes of production links is strict accordance with the standardization documents, never let any nonconforming into the market. Appearance: by international standard method to design, structure more reasonable and more beautiful appearance. Service: pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guaranteed.
|
MODEL SPECIFICATION |
S-25-5 |
S-25-12 |
S-25-15 |
S-25-24 |
OUTPUT DC VOLTAGE |
5V |
12V |
15V |
24V |
RATED CURRENT |
5A |
2.1A |
1.7A |
1.1A |
OUTPUT CURRENT |
0-5A |
0-2.1A |
0-1.7A |
0-1.1A |
RIPPLE & NOISE |
50mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
LOAD REGULATION |
±1% |
±0.5% |
±0.5% |
±0.5% |
RATED POWER |
25W |
25.2W |
25.5W |
26.4W |
EFFICIENCY |
72% |
76% |
77% |
80% |
VOLTAGE ADJ. RANGE |
+10,-5% |
±10% |
±10% |
±10% |
INPUT VOLTAGE RANGE |
85132VAC/170264VAC, selected by switch |
|||
INPUT AC CURRENT |
0.6A/115V 0.35A/230V |
|||
INRUSH CURRENT |
COLD START 15A/115V 30A/230V |
|||
LEAKAGE CURRENT |
<0.75mA/240VAC |
|||
OVER LOAD PROTECTION |
105 ~ 150% rated output power, fold back current limiting, auto-recovery |
|||
TEMP. COEFFICIENT |
±0.03%(050) |
|||
SETUP, RISE, HOLD TIME |
300ms,100ms,30ms |
|||
VIBRATION |
10500Hz,2G 10min./1 cycle , period for 60min, each along X, Y, Z axes |
|||
WITHSTAND VOLTAGE |
I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC |
|||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|||
WORKING TEMP. HUMIDITY |
-10+60,20%90%RH |
|||
STORAGE TEMP., HUMIDITY |
-20+85,10%95RH |
|||
DIMENSION |
99*97*35mm |
|||
WEIGHT |
0.37Kgs |
|||
SAFETY STANDARDS |
UL1012 |
|||
EMC |
FCC PART15 J CONDUCTION CLASS B |
|||
Aotoro Technology support:
Index: passed the CCC, CE certification, all the technical indexes reach achieve national standard (GB/T14048.10-1999),
Technology: adopting new special IC, adopt the most complete technical design, with various protection circuit, anti-jamming measures, more stable performance.
by SMD production technology, product reliability and consistency.
Management: passed ISO9001 certification, all processes of production links is strict accordance with the standardization documents, never let any nonconforming into the market.
Appearance: by international standard method to design, structure more reasonable and more beautiful appearance.
Service: pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guarantee.
Payment
1. Full payment must be made within 15 days of placing your order.
2. The buyer is responsible for any tax and/or duty charged by their country.
Shipping and handing
FEDEX is our preferred shipping method. We offer ship goods with FEDEX EMS TNT DHL UPS.
Insurance
Buyers are responsible for any insurance they feel is required..
RefundExchange Only
1.If you are not satisfied with your purchase, you can exchange the item. The buyer is responsible for all further shipping fees.2. The buyer must contact us within 3 days of delivery if they wish to exchange defective or incorrectly shipped items.
Feedback
Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems.
Service:
pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guaranteed.
