Led Parking Sensor M30 E3F-DS70C1 Photoelectric Sensor Quality Guaranteed

Led Parking Sensor M30 E3F-DS70C1 Photoelectric Sensor Quality Guaranteed photo-1

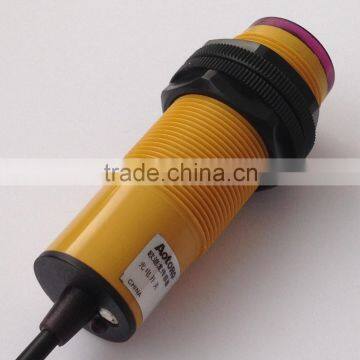

Led Parking Sensor M30 E3F-DS70C1 Photoelectric Sensor Quality Guaranteed photo-2
Led Parking Sensor M30 E3F-DS70C1 Photoelectric Sensor Quality Guaranteed photo-3

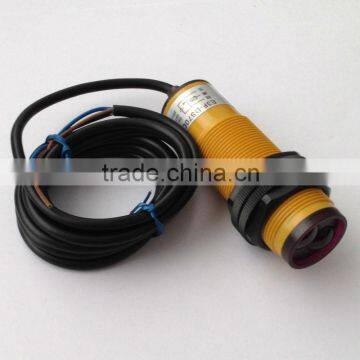

Led Parking Sensor M30 E3F-DS70C1 Photoelectric Sensor Quality Guaranteed photo-4
US$ 5.4 - 9.7 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Aotoro
Model Number:
E3F-DS70C1
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai shenzhen guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Aotoro
Model Number E3F-DS70C1
Usage Other, Automation control
Theory Other, infrared sensor
Output Switching Transducer

Specifications

Led parking sensor
1.detecting distance:70cm
2.power supply:10-30VDC
tection:IP64
4.CE approved.packaging standard

Established in 1997, Yueqing Aotoro Electric Automation Co.,Ltd is a professional in the electronic sensors research and development, one of the most professional sensor manufactures China.Now, we have won high and good reputation from customers both at home and abroad with excellent products and competitive price. We special manufacture in photoelectric switch,proximity switch,solid state relay,switch power supply,magnetic relay,timer relay,counter, touch sensor, all of our product have already approved CE certificate. We always believe in that the enterprise could keep leading position in the market as long as we are seeking our object.With this spirit,we always try best to satisfactory our customers to enlarge markets.





Led parking sensor M30 E3F-DS70C1 photoelectric sensor quality guaranteedLed parking sensor M30 E3F-DS70C1 photoelectric sensor quality guaranteed







Specification



E3F series



Type

(diffusing)

Type(polarized retroreflective)

Type

through-

beam)

DC 3-wire

NPN output

NOE3F-DS70C1E3F-R4C1E3F-10C1

NC

E3F-DS70C2

E3F-R4C2

E3F-10C2

DC 3-wire PNP output

NO

E3F-DS70B1

E3F-R4B1

E3F-10B1

NC

E3F-DS70B2

E3F-R4B2

E3F-10B2

AC 2-wire

SCR output

NO

E3F-DS70Z1

E3F-R4Z1

E3F-10Z1

NC

E3F-DS70Z2

E3F-R4Z2

E3F-10Z2

5-wire relay output

use DC power supply

NO







NC







5-wire relay output

use AC power supply

NO







NC







5-wire relay output

use free AC/DC

power supply

NO







NC







Sensing distance

0-70cm

≤4m

≤10m

Hysteresis

20%max. of

sensing distance





Sensing object

Opacity or

Transparency

Opacity

Min. 36mm

Opacity

Min. 11mm

Standard object

100X100mm

white lackluster

paper

TD-08

reflector



Supply voltage

DC type10-30VDC,AC type90-250VAC

Current consumption

DC type5mA max,AC type:3mA max.

Response frequency

DC type:100Hz max,AC type:20Hz max.

Control output

Resistive load:200mA max.,

Inductive load:100mA max.

Circuit protection

Reverse polarity,surge absorber

Operating temperature

-10 to +60non-freezing condition

Residual voltage

DC 3-wire type:1.5V max., AC 2-wire type:8V max

Insulation resistance

Min. 20M500VDC

Enduring voltage

AC1500V  50/60Hz for 1minute

Protection

IP64IEC specification



Led parking sensor M30 E3F-DS70C1 photoelectric sensor quality guaranteed



Led parking sensor M30 E3F-DS70C1 photoelectric sensor quality guaranteedLed parking sensor M30 E3F-DS70C1 photoelectric sensor quality guaranteedLed parking sensor M30 E3F-DS70C1 photoelectric sensor quality guaranteed

Led parking sensor M30 E3F-DS70C1 photoelectric sensor quality guaranteedLed parking sensor M30 E3F-DS70C1 photoelectric sensor quality guaranteedLed parking sensor M30 E3F-DS70C1 photoelectric sensor quality guaranteedLed parking sensor M30 E3F-DS70C1 photoelectric sensor quality guaranteedLed parking sensor M30 E3F-DS70C1 photoelectric sensor quality guaranteedLed parking sensor M30 E3F-DS70C1 photoelectric sensor quality guaranteed











Aotoro Technology support

Index: passed the CCC, CE certification, all the technical indexes reach achieve national standard (GB/T14048.10-1999),

Technology: adopting new special IC, adopt the most complete technical design, with various protection circuit, anti-jamming measures, more stable performance.

by SMD production technology, product reliability and consistency.

Management: passed ISO9001 certification, all processes of production links is strict accordance with the standardization documents, never let any nonconforming into the market.

Appearance: by international standard method to design, structure more reasonable and more beautiful appearance.

Service: pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guarantee.



Payment

1. Full payment must be made within 15 days of placing your order.

2. The buyer is responsible for any tax and/or duty charged by their country.



Shipping and handing



FEDEX is our preferred shipping method. We offer ship goods with EMS TNT DHL and UPS.



Insurance



Buyers are responsible for any insurance they feel is required..



RefundExchange Only

  1. If you are not satisfied with your purchase, you can exchange the item. The buyer is responsible for all further shipping fees.2. The buyer must contact us within 3 days of delivery if they wish to exchange defective or incorrectly shipped items.



Feedback



Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems.



Service:



pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guarantee.
