Label Printing Machine Feature
1. Use spring to adjust the printing pressure, can keep two ends of inking roller to be uniform and smooth, also the inking roller not too heavy or light.
2.18ink-distributing rollers and double-ink form rollers, which get graphics printed more perfect and support ultra-long trapping printing without vogue image.
3. Flexible polishing installment, which gets the gloss of printed product durable, causes printed product more environment-friendly and reduces production cost effectively.
4. Ultra-light flinty aluminum alloy plate tube and plate fitting method, which get the plate fitting simpler and easier.
5.Adjustable UV photo source and interlocked control of printing speed, which get printed product have perfect drying effect regardless of any printing material or printing speed selected, free from manual regulation and avoiding unnecessary waste of time and material.
6. Adjustable printing plate, which get the alignment of plate easier.
7. The 2nd printing can be done through computer positioning (i.e. by using electric eye tracing & positioning) .
8. Each printing unit can work independently, which enhance the production efficiency greatly, and each printing unit can adjust to fine-tune.
9.Overprinting System: Once printing length is input at the main control unit, every unit will move automatically to the preset position. Each unit is controlled individually by a motor. With the help of CCD image, lateral, longitudinal and bevel direction registration can be achieved without stopping the machine production. This greatly increases the print quality and reduced the production wastage.

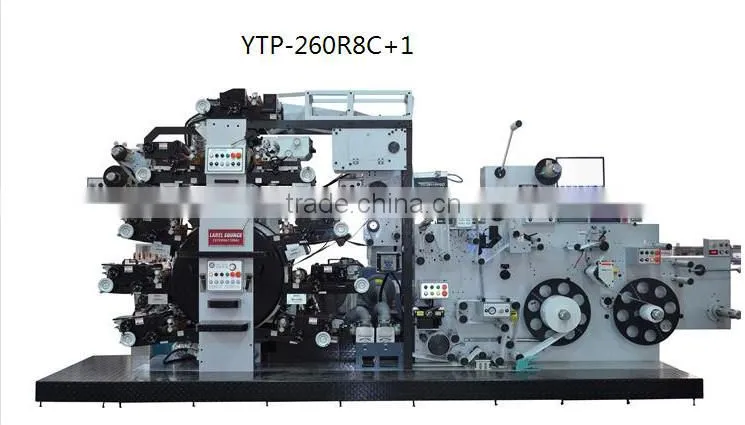

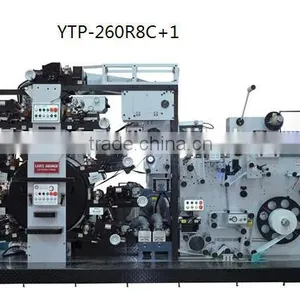

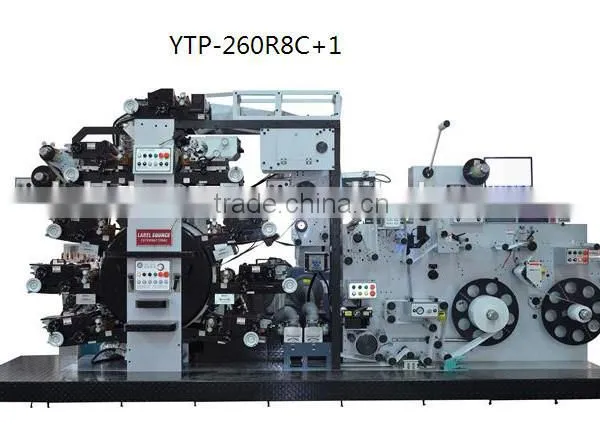

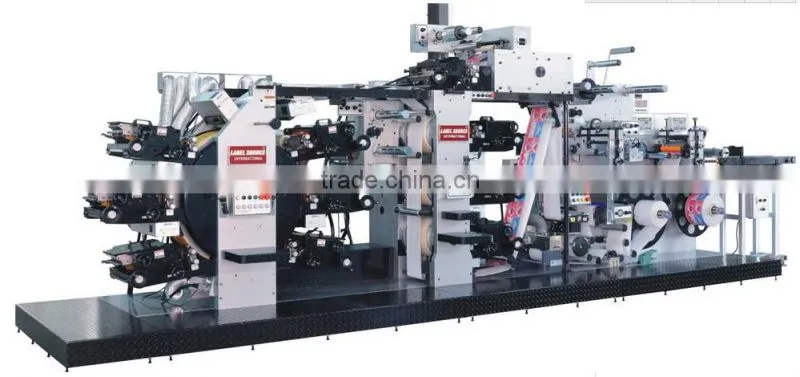

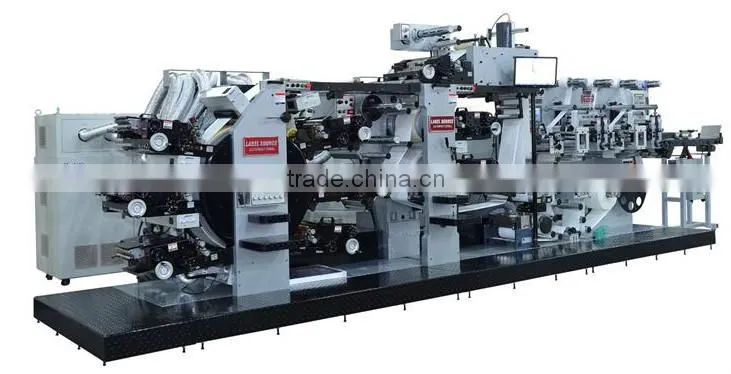

Letterpress label printing machine(8 color
Printing Station |
8sets |
Gearing |
1/8* |
Max.paper width |
260 mm |
Max.printing width |
250 mm |
Unwind roll dia.max |
800 mm |
Rewind roll dia.max |
800 mm |
Max printing length |
460.375 mm |
Min printing length |
190.5 mm |
Max printing speed |
100 m/min |
Net weight |
8100 (kgs) |
Gross weight |
9100 (kgs) |
Main motor |
380v(kw) 11 |
Stirring motor(2pcs) |
400 w |
UV dryer 9sets |
47 kw |
Machine size |
6.2*1.6*2.5 m |
Accessorise:
Printing station |
8 sets |
Printing cylinder(Size Optional) |
5 sets |
UV dryer |
8 sets |
Tools |
1 set |
Block setting table |
1 set |
Automatic web guiding system |
1 set |
Splicing platform |
1 set |
Corona treater (Foil can be treated) |
|
Electrostatic Eliminator |
The Selects and Purchases Equipments:
Intaglio plate printing system

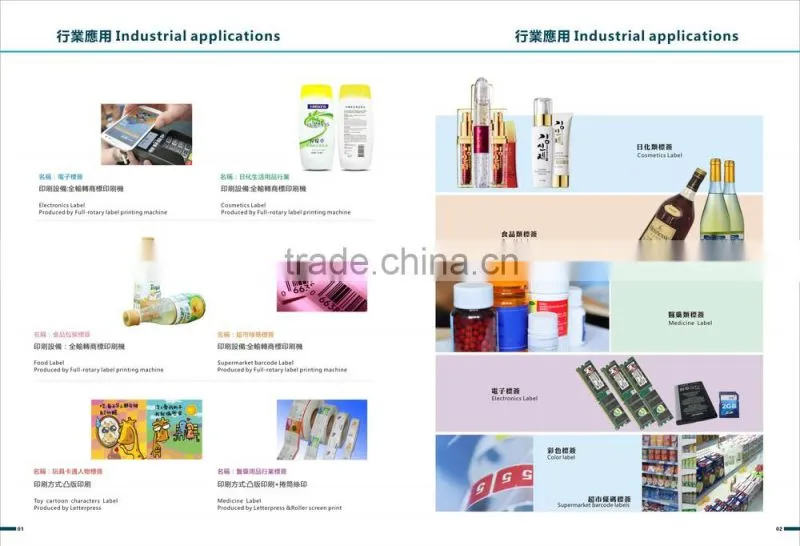

Suitable material:Adhesive paper,Laminate material BOPP Film,Shrinkable Film Styrofoam and other special material.
Standard plate making reference:photopolymer plate
Plate hardness:45°~55°
Plate thickness:0.95mm
Depth:0.69mm(reference)
1. Purchase Service
DABA COMPANY have a specialize and efficiency working team.If you are new on the printing and packing area ,Some samples of your products could be shew to us will be appreicate ,we will give you specialized suggestion of whole work .
2. Shipping Service
DABA COMPANY have a spcialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .
DABA COMPNAY copperate with the most famous shipping company in China also.They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all DABA Company machines.DABA Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to surpply the round trip tickets ,food ,hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factory to learn how to operate machines.DABA Company technician will teach and train the lerners hand by hand till he can operate machine by himself.
Obviouslly, Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken ,Just a pictures or a videos.
The new free parts will reach within 3-7 Express working days
