Home > Electrical & Electronics > Sensor > Pressure Sensor > Hall Switch NJK-5002 NPN NC China Manufacturer Quality Guaranteed

Hall Switch NJK-5002 NPN NC China Manufacturer Quality Guaranteed

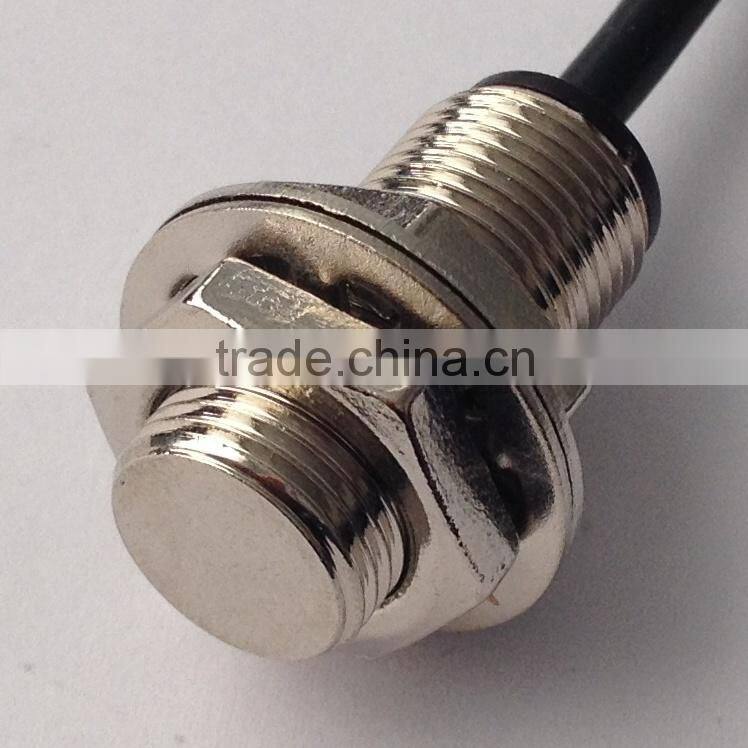

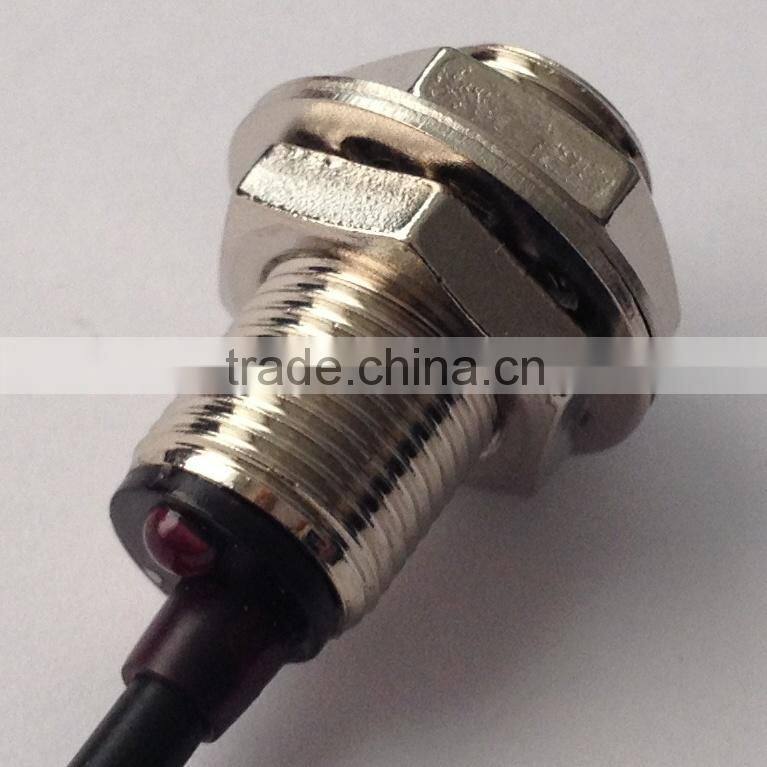

Hall Switch NJK-5002 NPN NC China Manufacturer Quality Guaranteed photo-1
Hall Switch NJK-5002 NPN NC China Manufacturer Quality Guaranteed photo-2
Hall Switch NJK-5002 NPN NC China Manufacturer Quality Guaranteed photo-3
US$ 2.3 - 2.5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Aotoro, Aotoro
Model Number:
NJK-5002, NJK-5002
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai shenzhen guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Aotoro, Aotoro
Model Number NJK-5002, NJK-5002
Usage Magnetic Sensor
Theory Hall Sensor
Output Switching Transducer

Established in 1997, Yueqing Aotoro Electric Automation Co.,Ltd is a professional in the electronic sensors research and development, one of the most professional sensor manufactures China.Now, we have won high and good reputation from customers both at home and abroad with excellent products and competitive price. We special manufacture in photoelectric switch,proximity switch,solid state relay,switch power supply,magnetic relay,timer relay,counter, touch sensor, all of our product have already approved CE certificate. We always believe in that the enterprise could keep leading position in the market as long as we are seeking our object.With this spirit,we always try best to satisfactory our customers to enlarge markets.

hall switch NJK-5002 NPN NC China manufacturer quality guaranteedhall switch NJK-5002 NPN NC China manufacturer quality guaranteed



hall switch NJK-5002 NPN NC China manufacturer quality guaranteed





Specification



NJK-5002 -series





Type

DC 3-wire NPN    NO

NJK-5002C

DC 3-wire NPN    NC

NJK-5002

DC 3-wire PNP    NO

NJK-5002B

DC 3-wire PNP    NC

NJK-5002

AC 2-wire SCR    NO

NJK-5002A

AC 2-wire SCR    NC

NJK-5002
Sensing distance

0-10mm

Sensing object

metal or nonmetal

Standard object

Iron12x12x1mm

Supply voltage

DC type10-30VDC,AC type90-250VAC

Current consumption

DC type5mA max,AC type:2mA max.

Response frequency

DC type:50Hz max,AC type:20Hz max.

Control output

Resistive load:200mA max.,

Inductive load:100mA max.

Circuit protection

Reverse polarity,surge absorber

Operating temperature

-25 to +75non-freezing condition

Residual voltage

DC 3-wire type:1.5V max.,

AC 2-wire type:8V max

Insulation resistance

Min. 50MΩ500VDC

Enduring voltage

AC1500V  50/60Hz for 1minute

Protection

IP67IEC specification

hall switch NJK-5002 NPN NC China manufacturer quality guaranteed

hall switch NJK-5002 NPN NC China manufacturer quality guaranteed

hall switch NJK-5002 NPN NC China manufacturer quality guaranteed

hall switch NJK-5002 NPN NC China manufacturer quality guaranteedhall switch NJK-5002 NPN NC China manufacturer quality guaranteed

hall switch NJK-5002 NPN NC China manufacturer quality guaranteedhall switch NJK-5002 NPN NC China manufacturer quality guaranteedhall switch NJK-5002 NPN NC China manufacturer quality guaranteed







Aotoro Technology support:

Index: passed the CCC, CE certification, all the technical indexes reach achieve national standard (GB/T14048.10-1999),

Technology: adopting new special IC, adopt the most complete technical design, with various protection circuit, anti-jamming measures, more stable performance.

by SMD production technology, product reliability and consistency.

Management: passed ISO9001 certification, all processes of production links is strict accordance with the standardization documents, never let any nonconforming into the market.

Appearance: by international standard method to design, structure more reasonable and more beautiful appearance.

Service: pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guarantee.



Payment

1. Full payment must be made within 15 days of placing your order.

2. The buyer is responsible for any tax and/or duty charged by their country.



Shipping and handing



FEDEX is our preferred shipping method. We offer ship goods with EMS TNT DHL and UPS.



Insurance

Buyers are responsible for any insurance they feel is required..

RefundExchange Only

If you are not satisfied with your purchase, you can exchange the item. The buyer is responsible for all further shipping fees.2. The buyer must contact us within 3 days of delivery if they wish to exchange defective or incorrectly shipped items.



 Feedback



Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems.



Service:



pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guarantee.
