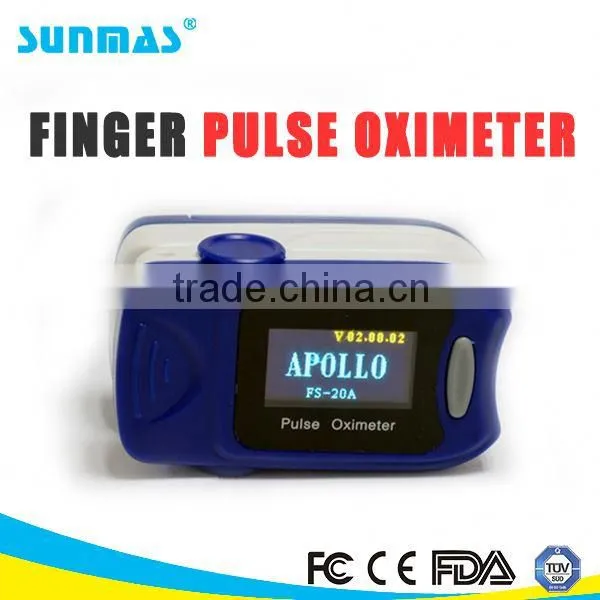

Sunmas hot Medical testing equipment DS-FS20A pulse oximeter pediatric
Color Box
Size : 62 * 35 * 31 mm
Battery :is not greater than 25mA about 50g (including two AAA batteries)

Sunmas hot Medical testing equipment DS-FS10A pulse oximeter pediatric

 Sunmas SM9028T FDA,CE,FCC approved Touch button mini health care tens personal massager

• 1.All of Sunmas products under the hl-tech corporation standard production
• 2.FDA 510k CE FCC Approved
• 3.Promise made promise delivered
• 4.Serve professionally
• 5.No lowest price but always value for money

Fingertip Pulse Oximeter DS-FS10A Sunmas hot Medical testing equipment DS-FS10A pulse oximeter pediatric

The DS-FS10A is configured Red LED, whose UI shows the Spo2 and PR parameter, and the Power indication, Pulse bar graph. Ideal used by clinicians, patients, caregivers and consumers. For spot-check applications in personal health and wellness, homecare, hospital and clinics, outdoor activities.

Application:
Spot-check applications in personal health and wellness, homecare, hospital, and clinics, outdoor activities

FEATURES:

• 1. Anti-movement digital signal processing technology
• 2. Accurate pulse oximetry measurements during motion and low perfusion
• 3. LED(DS-FS10A) screen display PR, SPO2, Bar graph
• 4. Reliable accuracy and durability
• 5. Simple operation, real-time spot-checks
• 6. Low power indicator
• 7. Automatic power-off

Specification:
SpO2

• Measurement range:35~100%
• Accuracy: ±2%(70~100%),0~69% unspecified
• Resolution:1%

Pulse Rate

• Measurement range:30-250 bpm
• Accuracy:±2 bpm
• Resolution:1bpm

Blood Perfusion Index performance

• Range:0.2~20%
• Resolution:0.1%

Low Perfusion performance

• Pi >= 0.4% : Spo2 and PR can be detected correctly;
• Pi < 0.4% : Unspecified.

Environment requirement
Operation Environment:

• Temperature:5°C~ +40°C
• Humidity:15% ~ 95%

Storage Environment:

• Temperature:-20°C~ +60°C
• Humidity:10% ~ 95%

Power Requirements

• Work voltage:DC2.5V~ 3V( 2 AAA Battery)
• Work current:< 30mA

Dimension

• 62 (H) x 35 (W) x 31 (D) mm
• Net Weight
• 60g(include batteries)

Accessories in standard

• A hanging rope
• A user manual
• Accessories for optional
• 2 AAA Alkaline
• A pouch

Optional colors

• White, blue, orange

Sunmas hot Medical testing equipment DS-FS10A pulse oximeter pediatric

Sunmas hot Medical testing equipment DS-FS10A pulse oximeter pediatric

Sunmas hot Medical testing equipment DS-FS10A pulse oximeter pediatric

Sunmas hot Medical testing equipment DS-FS10A pulse oximeter pediatric

1. About the certificates for our product

   We have obtained so many certificates for our product, such as FDA, FCC, Medical CE, and CMDCAS and so on to ensure our quality and safety, so our customers could use and buy it freely.

2.How TENS Works

  TENS works by passing harmless electrical signals into the body from its pads. This relieves pain in two ways:
Firstly, "high frequency" continuous, mild, electrical activity may block the pain signal travelling to the brain. Brain cells perceive pain.
Secondly, TENS stimulates the body release its own natural pain-control mechanism. "Low frequency" or short bursts of mild, electrical activity may cause the body to release its own pain easers, called beta endorphins.

3.Contraindications

  (1) Never use this product in concurrence with the following devices: pacemakers or any other embedded electronic medical devices, heart-lung machine and any other lifekeeping electronic medical devices, electrocardiograph and any other medicalscreening and monitoring devices. Simultaneous use of SUNMAS TENS and any of the above devices will cause malfunction and can be very dangerous to the users.

  (2) Do not use this device on patients whose pain syndromes are undiagnosed.

4. Is it safe to use SUNMAS stimulator?

  (1) Electronic stimulation is quite safe in general, but the above contraindications should be followed during using or consulting the professional doctors
  (2) Don`t dismantle the unit and needs to be installed and put into service according to the EMC information provided, and this unit can be affected by portable and mobile RF communications equipment.

5. About electrode pads

  (1) Where put the pads?
       They could be put in each muscle and point. Keep the pads away from heart, positions above head and neck, throat and mouth. The best way to relieve pain is to put the pads in the relative pain points.

  (2) How long the pads last?
       Pads can be used for 30-40 times at home, it depends on different situations. In hospital, they can only be used for not more than 10 times.
  (3)What should we do if there is discomfort when putting the pads in the shoulder?
       It all depends on the personal body. Therefore, the user should begin to use it from the lowest strength and speed to increase step by step to reach a better status.
  (4) What should we do if there is no function during using?
       A. Someone may feel stressed for the first using. If this feeling lasts exceeding one minute, please move the pads a little. Sometimes, indirect stimulation will affect sensitive position of the body.
      B. Check the battery if there is any need to change the battery or charge the battery.
      C. Check the pads carefully. If the pads become soiled or dirty, the adhesive power may decrease. In this case, moisten the surface of the pads with water and wipe away the dirty portion (do not wash them with water directly, oil and soap). This will allow a temporary restoration of the adhesive power. However, too much water will result in loss of the adhesive power.

6. About the freight

  The freight is different due to different destination. In general, the delivery should be reached in America or Europe in a week by FEDEX. An order with large amount may need 25-30 days. Please contact our sales to get to know the details.

...
