Specifications
DC Inverter TIG MMA 2IN1 Welder- IGBT & PWM
- Digital Display
- Selective Modules: EMC,PULSE
-Certificate: GS/CE/EMC/RoHS

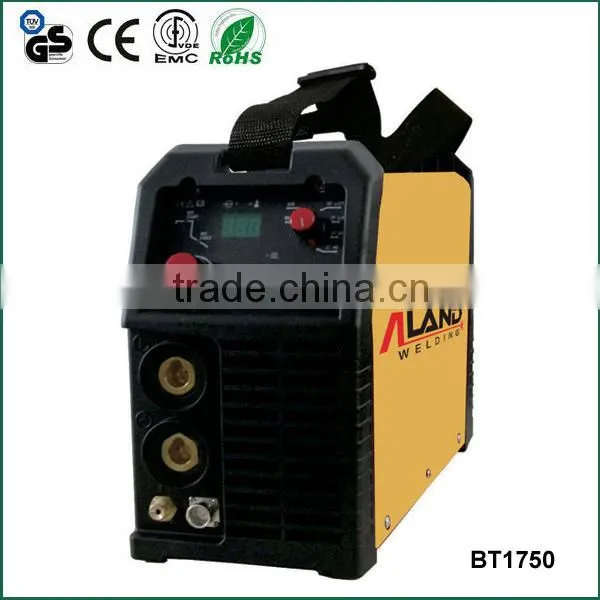

BT-1750 DC Inverter HF TIG MMA 2IN1 Welder
Features:
- Adopt IGBT & advanced PWM inverter technology.
- Using high performance MCU, speedy, excellent and real-time response.
- Digital display, easy operation.
- Each welding parameter can be adjusted in real-time.
- Intelligent HF, brush strokes arc ignition technology, high success rate
- welding pulse parameters accurate.
- Intelligent protection function based on the fuzzy technology.
- Selective module: EMC, PULSE
Application:
- Nuclear power installation, pipe installation, petrochemical, shipbuilding, automobile, boiler, pressure vessel, aviation, etc.
- Apply to all positions welding of stainless steel, carbon steel, alloy steel, copper, titanium and other plates.
Specifications:
| Model | BT-1750 |
| Rated Input Voltage(V) | 1phase,230±15% |
| Input Frequency(Hz) | 50/60 |
| Rated Input Power(KVA) | 3.3(TIG) 5.2(MMA) |
| No-load Voltage(V) | 56 |
| Rated Output Voltage(V) | 27(MMA) 17(TIG) |
| Output Current Range (A) | 5-175 |
| Duty Cycle(%) | 40C°175A @ 25% 40C°100A @ 100% |
| Efficiency(%) | 80 |
| Insulation Class | F |
| Protection Class | Ip23S |
| Weight(Kg) | 7 |
| Dimension(mm) | 400X140X230 |
Optional Accessories:
TIG Torch, Electrode Holder, Earth Clamp, Welding Mask, Brush
Beijing Aland Welding Co., Ltd. is a professional welding company who is specializing in Researching, Manufacturing and Exporting welding products.
Our welding machine line include:
- Inverter Digital MCU Welder
- IGBT Inverter DC MMA Welder
- MOS Inverter DC MMA Welder
- Inverter DC TIG Welder
- Inverter DC TIG/MMA Welder
- Inverter DC TIG/MMA/CUT Welder
- Inverter DC MIG/MAG Welder
- Plasma Cutter
- Wire feeder
Any inquiry from you will be highly appreciated and replied immediately.
