1. High Cutting Efficiency
Compared with belt driven saw, the concrete wall saw comes with integrated structure that will reduce torque loss of blade during gear driving and thereby ensures stable power transmission
2. Quick Installation
Saw head and track system can be quickly installed and prone to maintenance.
3. High Cutting Precision
Guide roller of the concrete cutter is fastened on the precise track to ensure stable running and high cutting precision. The maximum cutting depth is up to 830mm.
4. Combined Use
The hydraulic cutting machine is equipped with a number of additional devices such as saw blade protector, rotary track holder, wire saw, etc.
5. Strong Adaptability
Our hydraulic wall saw is provided with a unique track guide which can be easily used on different track system and can be driven by other brand hydraulic power unit.
6. Low Maintenance Cost
The transmission and hydraulic motor come with low maintenance rate and enjoy 20% longer service life than similar products.
Technical Parameters:
1. Saw blade diameter range: 600/1800MM
2. Max. cutting depth: 830MM
3. Maximum sped: 1290RPM
4. Driving power: 20/30KW
5. Max. blade diameter: 1800MM(using HM-39 motor)

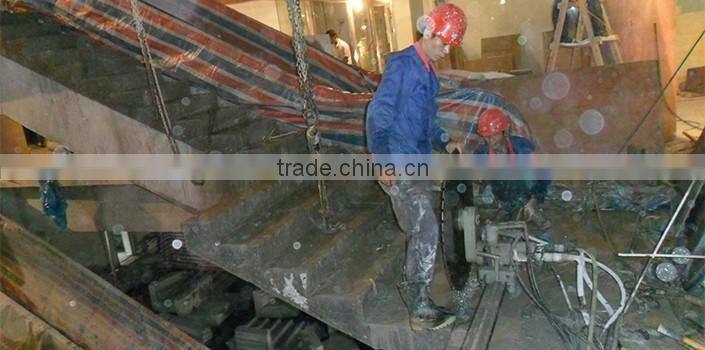

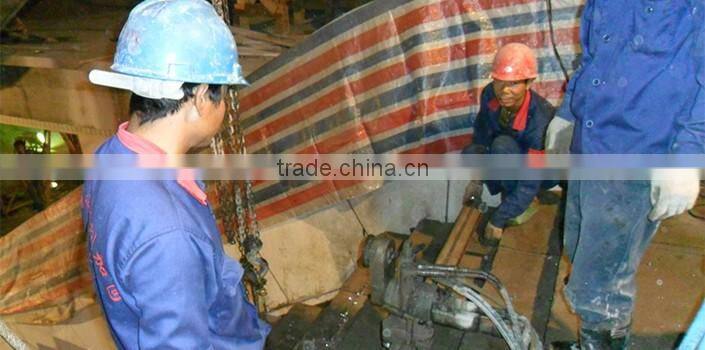

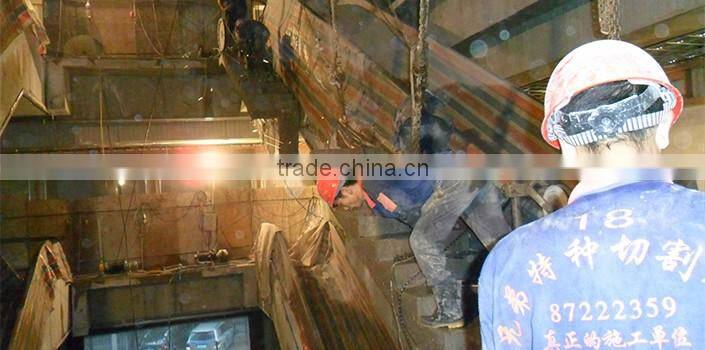

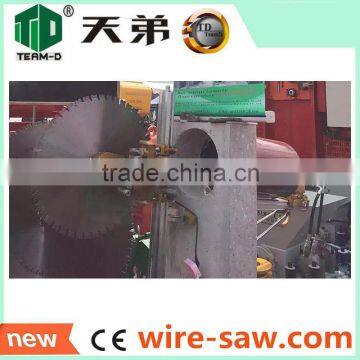

Concrete Saw for Stairs Cutting
The project is about stairs renovation at the atrium area of a commercial and office complex in Guangzhou city. The original stair had to be removed for reconstruction. It had two landings that all came with a length of 1.5m. Total length of the stringer was up to 14.5m. Total width of the stair was 4.1m.
The new stair came with an addition of a four-storey elevator. Length was reduced to 8m and width to 2.75m. Total area was 176m. To ensure original structure around the stair would not be damaged by vibration during demolition of old stair, we needed to reinforce it in advance and then conduct vibration free cutting by using concrete saws including hydraulic wall saws, hydraulic wire saws and floor saws
Construction Process:
1. Put support at the bottom of part to be removed, enforce waterproof and reinforcement treatment to surrounding structure;
2. Positioning and paying off the hoisting chain;
3. Reasonable partitioning;
4. Cutting and handling;
5. Transporting and cleaning

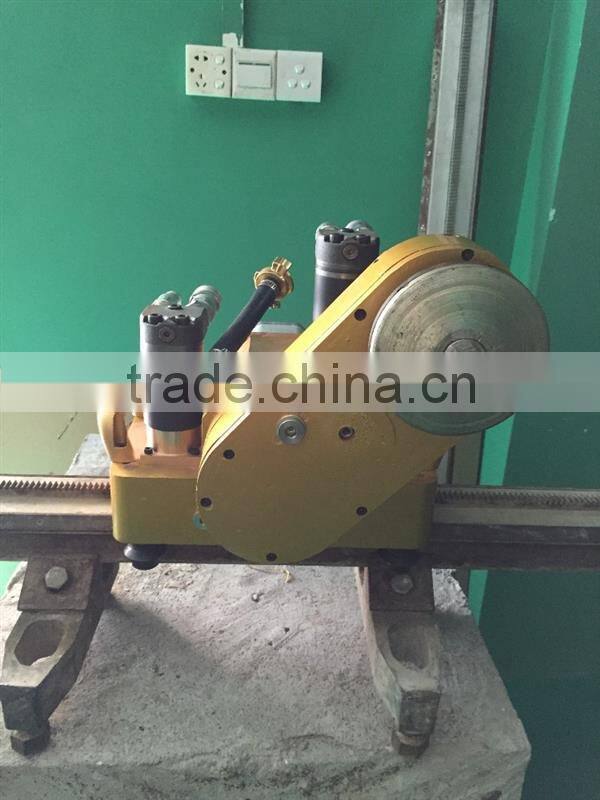

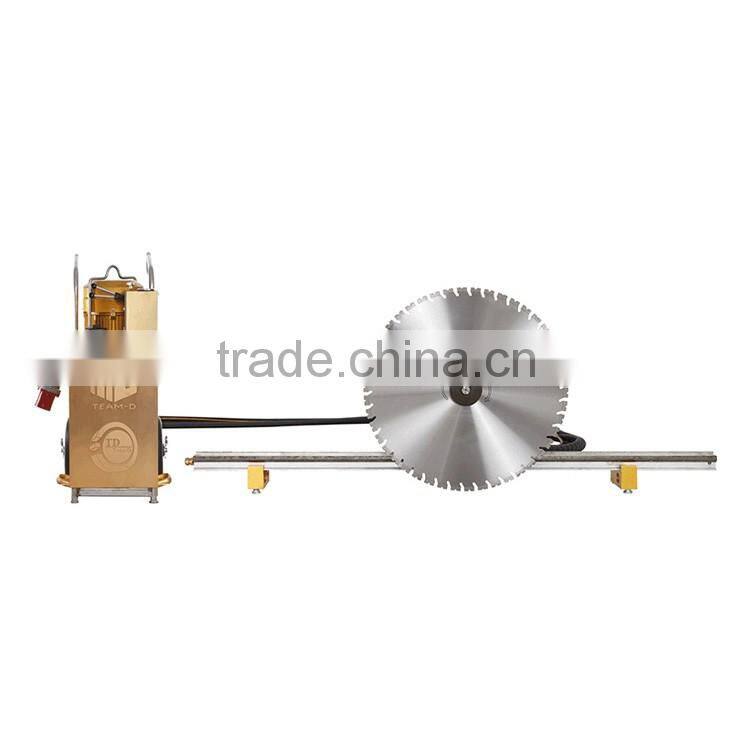

Hydraulic Wall Saw Machine
Wall saw machine is used in construction engineering and strengthening construction of advanced engineering tools, as a special cutting tools, suitable for cutting of materials of reinforced concrete, rock, ceramics, brick, etc.
The TD hydraulic wall saw is the result of Brother Company’s efforts to create the best and most efficient wall saw on the market. Combining the function of rebar saw and concrete saw, the cutting equipment is perfect for reinforce concrete cutting in the renovation of building, bridge, metro, tunnel and other special constructions, and for underwater concrete cutting.

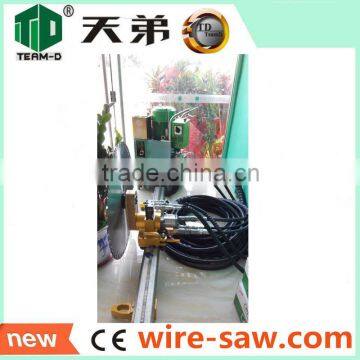

Standard Configuration
No. |
Name |
Piece |
Remark |
01 |
TD hydraulic power unit |
1 |
|
02 |
TD hydraulic saw head |
1 |
|
03 |
Saw blade |
1 |
|
04 |
Oil hose |
6 |
Imported |
05 |
Water hose |
1 |
Specialized |
06 |
Clamping piece |
2 |
|
07 |
Track |
2 |
1.5m and 2.5m |
08 |
Track guide foot |
2 |
|
Guangzhou Tiandi Special Engineering Machinery &Material Co., Ltd specializes in manufacturing and marketing TEAM-D hydraulic wall saws, wire saws, electric road saws, hydraulic drill rig and accessories. Adopting imported parts with optimization, German technology and self-innovation which make our products have the characteristics of simple structure, light weight, flexible operation, high performance, high durability and easy maintenance, etc. Along with the continuous expansion of business, we have established Jiangxi Tiandi Special Mechanical Engineering Material Co., Ltd at the same time. It covers an area of 30,000 square meters and be mainly liable not only for research and development, but production as well. Tiandi company employs far more than 500 staff now includes more than 20 technical engineers. Both of them are subsidiaries of Brother Company, which is a sole proprietorship with production and sales capacity perfectly.
Our products in TD-18.5,TD-22 and TD-25 models are mainly used for reinforcement and renovation projects of buildings(beams, columns, slabs, walls),bridge, wharf, tunnels and other large-scale projects cutting, demolition, supporting, anti-seismic strengthening,etc. Among which the diamond wire saw can reach at 80m underwater to conduct cutting applications, and the wall saw comes with the maximum cutting depth of 930mm.An increasing number of advanced products will be developed successively in order to meet the variety of demands of our clients. Being a pioneer with favorable comment and ratification in this line of business, we offer superior quality products, lifetime service, free maintenance within one year and more professional training along with follow-up service system afterwards.
High-quality products and good service have always been our commitment to customers. Competitive price, high durability, friendly maintenance, lifelong service, with these features, our products are widely accepted by domestic and overseas customers. Not only has the product performance taken the leading position at home, but approached advanced international standards. Therefore, we are trustworthy and reliable to collaborate with.
Advocating “survival on quality, credibility of development, good service to consolidate market, innovation to exploit market” we strive vigorously to perfect combination with user interest and enterprise interest in order to progress mutually. We sincerely hope to serve society and be willing to develop jointly with vast number of merchants. Believing in Tiandi, we can provide you with assured products; We truly hope that you could joint hands of us to achieve success.
