Specifications
1.Good grip strength2.Easy installation
3.OEM available
4. ISO 9001:2008
Preformed dead end clamp ADSS cable(0-200m span)
We have 15 years of experiences of preformed tension clamp Cable Fitting for ADSS/OPGW.
Function:It mainly used on the cable line which passes the angle, tension or terminal tower or pole within the span of 50-200 meters. It is not only used for hanging the overhead cable but also used for fixing, installation or pulling cable during the construction.
Feature:
1. Protect cable sheath from damaging for overstress;
2. Deliver axial tension force;
3. Larger contact area with cable, even stress distribution, no stress concentration and vibration stress;
4. The grip strength to cable is more than 95% of cable's ultimate resistance tension strength (RTS).

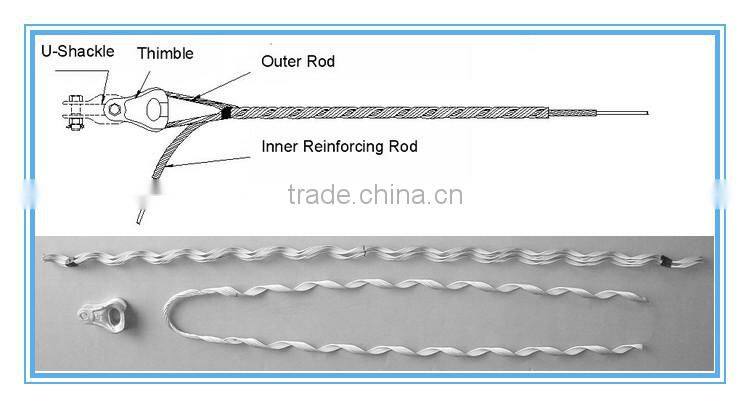

Components:Preformed dead-end, thimble, U-shackle, etc.
Customers can also choose other linking fittings according to the requirements of design such as clevis, chain link, etc.
Material of preformed dead-end: Galvanized steel wire or Alumium-clad wire.
Partial model parameters:
Model No. |
Length of wire (mm) |
Grip strength (KN) |
Failing load (KN) |
Span (m) |
Estimate weight (kg) |
*SHND-AXXXX/005 |
900 |
5 |
≥40 |
80 |
1.0 |
SHND-AXXXX/010 |
1100 |
10 |
120 |
1.2 |
|
SHND-AXXXX/018 |
1300 |
18 |
150 |
1.5 |
