Specifications
General-purpose, Environment-resistant, Spatter-prevention, and Long-life Switches.Used on Transport Systems

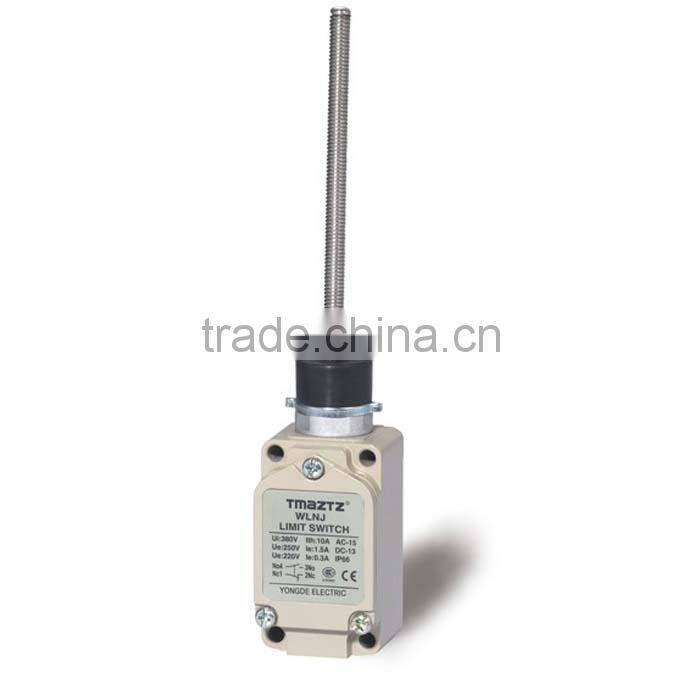

CE approved High temperature aluminium housing stainles steel coil spring limit Switch WLNJ
1. Degree of protection : IP67
2:Mechanical: 15,000,000 operations
3: Rated frequency: 50/60 Hz
4: Protection against electric shock : Class I
5: Ambient operating temperature : -10°C to +80°C (with no icing)
6: Ambient operating humidity : 35% to 95% RH
7.With strong aluminum die-cast cover
8.High mechanical strength
9.Structure preventing oil,water and pressure
10. Overtravel: 90° operation
11.Indicating plate with setting position is installed in it,ao it is easy to maintain
12.Various of actuators is taken convenience for using
13.Built-in contact stand has double-spring,so it has long mechanical life

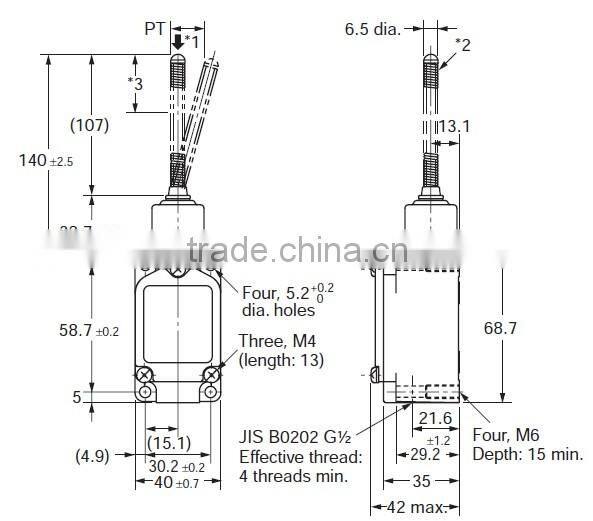

*1. The coil spring may be operated from any direction except the
axial direction (↓).
*2. Stainless steel coil spring
*3. Optimum operating range of the coil spring is within 1/3 of the
entire length from the top end.
