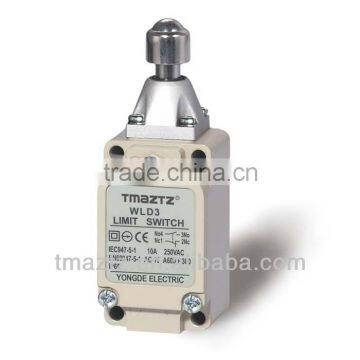

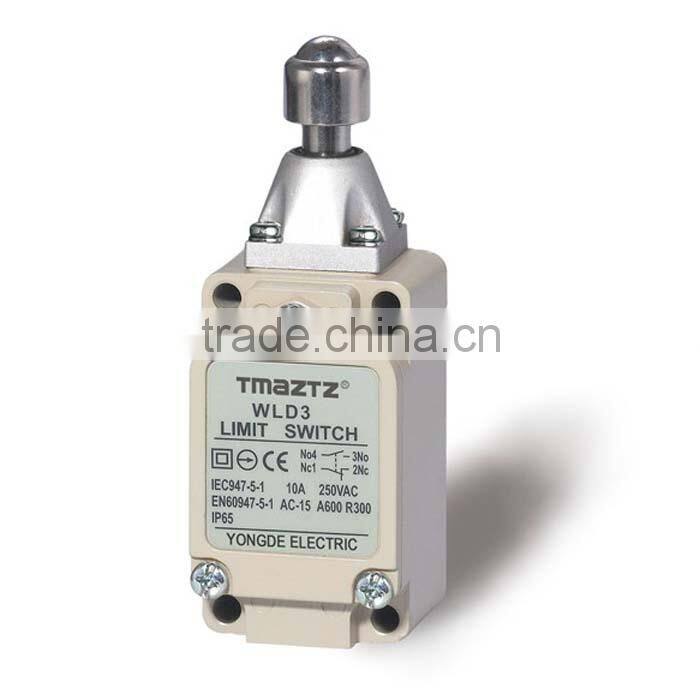

IP67 waterproof CE approved gate opener travel Switch WLD3

Specifications

General-purpose, Environment-resistant, Spatter-prevention, and Long-life Switches.
Used on Transport Systems

 IP67 waterproof CE approved  gate opener travel Switch WLD3



1. Degree of protection : IP67



2:Mechanical: 15,000,000 operations



3: Rated frequency: 50/60 Hz



4: Protection against electric shock : Class I



5: Ambient operating temperature : -10°C to +80°C (with no icing)



6: Ambient operating humidity : 35% to 95% RH



7.With strong aluminum die-cast cover



8.High mechanical strength



9.Structure preventing oil,water and pressure



10. Overtravel: 90° operation



11.Indicating plate with setting position is installed in it,ao it is easy to maintain



12.Various of actuators is taken convenience for using



13.Built-in contact stand has double-spring,so it has long mechanical life
