Long Lever Micro Switch TM-1705

Long Lever Micro Switch TM-1705 thumbnail-1
Long Lever Micro Switch TM-1705 photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TMAZTZ
Model Number:
TM-1705
Contact Supplier Request Quote Chat Now
Yueqing Yongde Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name TMAZTZ
Model Number TM-1705

Specifications

Specialized manufacturer of Limit switch, Micro switch,foot switch with 20 years experiences



long lever micro switch



High switch on and off capacity(15A)

High accuracy

Wide range of operation speed

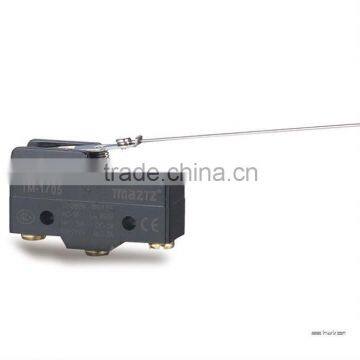

 long lever micro switch TM-1705



long lever micro switch TM-1705

long lever micro switch TM-1705



Rated
voltage
(V)
Noninductive load(A) Inductive load(A)
Inrush
current
(A)
Resistive load
Lamp load
Inductive
load
Motor load
NC
NO
NC
NO
NC
NO
NC
NO
NC
NO
125 VAC
250 VAC
300 VAC
15
15
3
3
2.5
1.5
1.5
1.25
0.75
15
15
2.5
5
3
1.5
2.5
1.5
0.75
 30

max.		 15

max.
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC
15
15
6(2)
0.4
0.2
3
3
3
0.4
0.2
1.5
1.5
1.5
0.4
0.2
15
10
5
0.05
0.03
5
5
5
0.05
0.03
2.5
2.5
2.5
0.05
0.03
Notes:
1. Inductive load has a power factor of 0.4min. (AC) and a time constant or
7msec (DC).
2. Lamp load has an inrush current of 10 times the steady-state current,
while motor load has an inrush current or 6 times the steady-state current.
·Characteristics
Operating speed 0.01mm to 1m/sec
Operating
frequency		 Mechanically: 240 operations/min.
Electrically: 20 operations/min.
Contact resistance 15mΩmax. (initial)
Insulation
resistance		 100MΩmin. (at 500VDC)
Dielectric strength 1000VAC, 50/60Hz for 1 minute between
non-continuous terminals
2000VAC, 50/60Hz for 1 minute between
current-carrying part and ground
Vibration Mechanical durability: 10 to 55Hz
1.5mm double amplitude
Shock Mechanical durability:
Approx. 1,000m/sec2 (approx. 100G's)
Malfunction durability:
Approx. 300m/sec2 (approx. 30G's)
Ambient operating
temperature		 General purpose type: -25°to +80°C
Sealed type: -15 to 80°C
Humidity General purpose type: 85%RH max.
Sealed type: 95%RH
Service life Mechanically: 20,000,000 operations min
Electrically: 500,000 operations min.
Weight Approx. 22 to 58g

Definitions of operating characteristics

OF: Operating Force RF: Releasing Force
TF: Total Force FP: Free Position
OP: Operating Position RP: Releasing Position
TTP: Total Travel Position PT: Pretravel
OT: Overtravel MD: Movement Differential
TT:Total Travel





Model TM1705
OF(Max.) 10g
RF(Min.) 3g
PT(Max.) 20mm
OT(Min.) 5.6mm
MD(Max.) 3mm
FP(Max.)
OP(mm) 19±0.8
Weight(kg) 0.036

 long lever micro switch TM-1705long lever micro switch TM-1705long lever micro switch TM-1705
